LOCATION OF COMPONENTS (Boxer Versions)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Air Conditioner › LOCATION OF COMPONENTS (Boxer Versions)
‹ Prev Components and Connectors (contd.)Next › LOCATION OF COMPONENTS (TD Version - up to chassis no.....)
145 electrical system diagnosisLOCATION OF COMPONENTS (Boxer Versions)

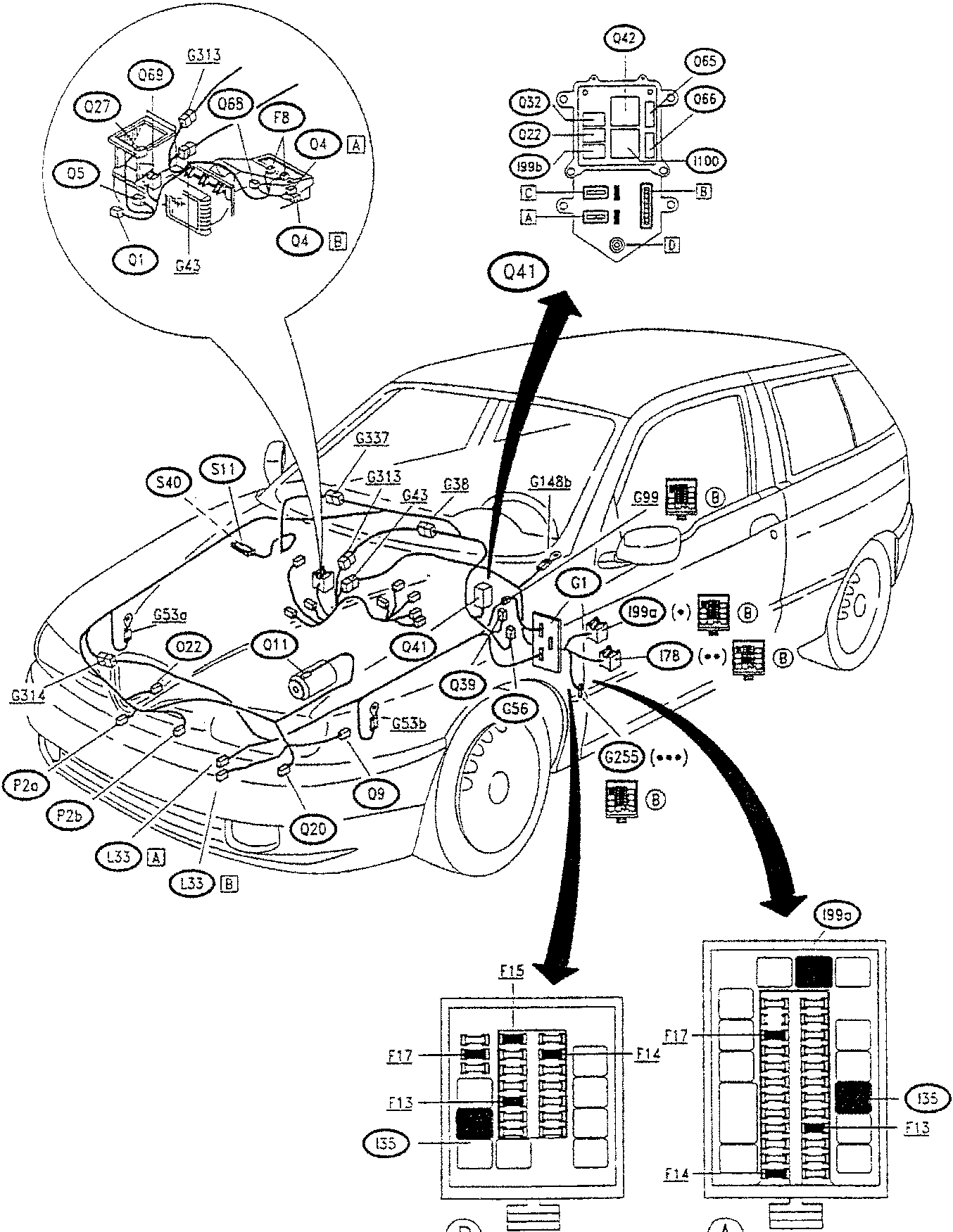

LOCATION OF COMPONENTS (Boxer Versions) – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
LOCATION OF COMPONENTS (Boxer Versions)
(•) yellow base
(••) yellow base
(•••) green fuseholder
