145 electrical system diagnosisComponents and Connectors (contd.)

Components and Connectors (contd.)

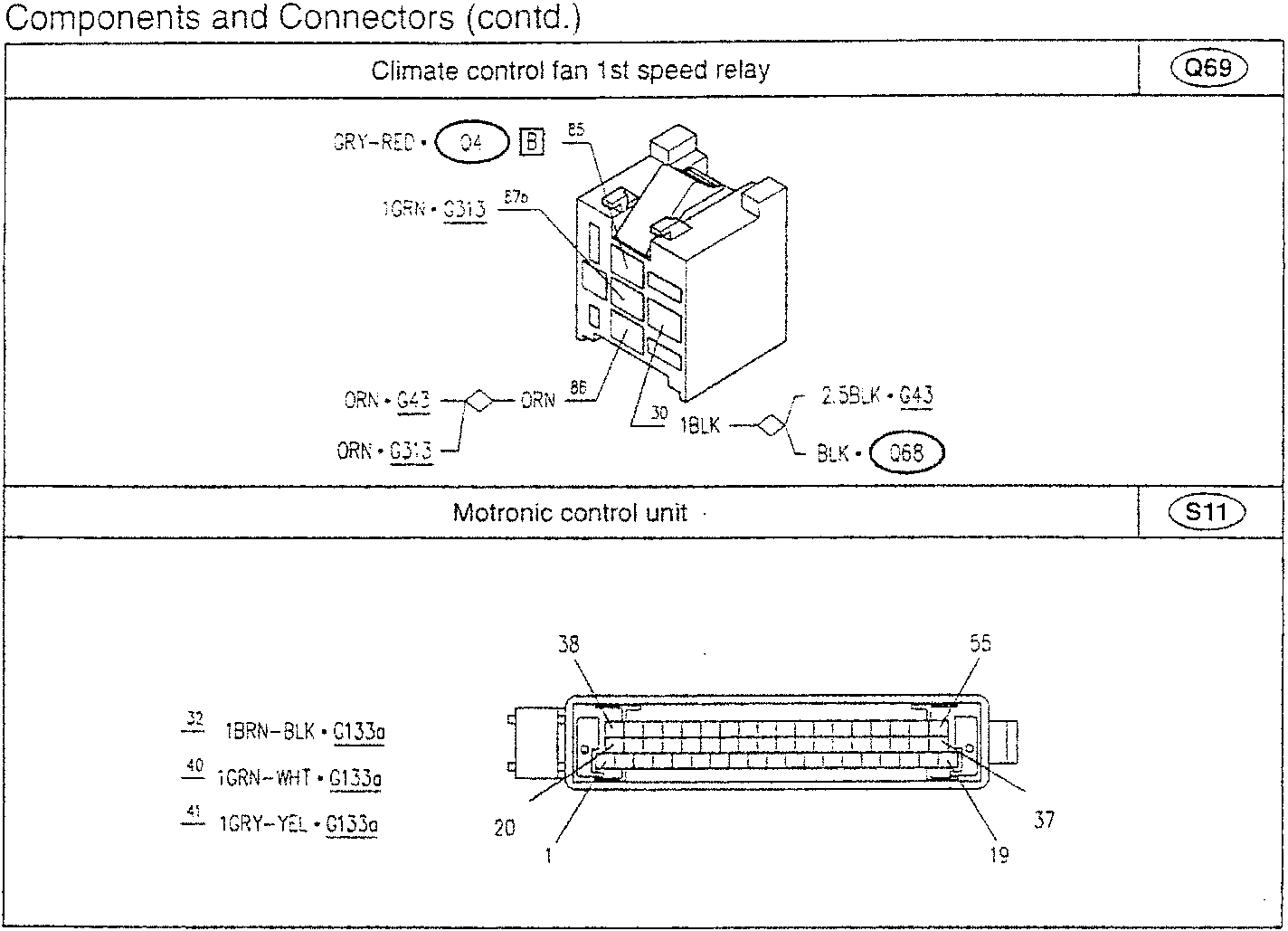

Climate control fan 1st speed relay
GRY-RED • Q4 B	E5
1GRN • G313 E7o	B6
ORN • G43 ORN 30 1BLK	2.5BLK • G43 BLK • Q68

Motronic control unit
32 1BRN-BLK • G133a	38
40 1GRN-WHT • G133a	55
41 1GRY-YEL • G133a	37
20	19
