Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001)01 · 145 electrical system diagnosis
01 · Diagnostics

Components and Connectors (contd.)

Make
Alfa Romeo
Model
145/146 Electrical System Diagnosis Manual, Volume 3
Year
1994–2001
Section
Air Conditioner › Components and Connectors (contd.)
145 electrical system diagnosisComponents and Connectors (contd.)

Components and Connectors (contd.)

  • Engine/conditioner wiring connector – G314
  • Inertial switch – H20
  • Engine cooling fan 2nd speed relay – I100
  • Diesel engine control devices relay – I105
  • Two-level thermal switch – L33

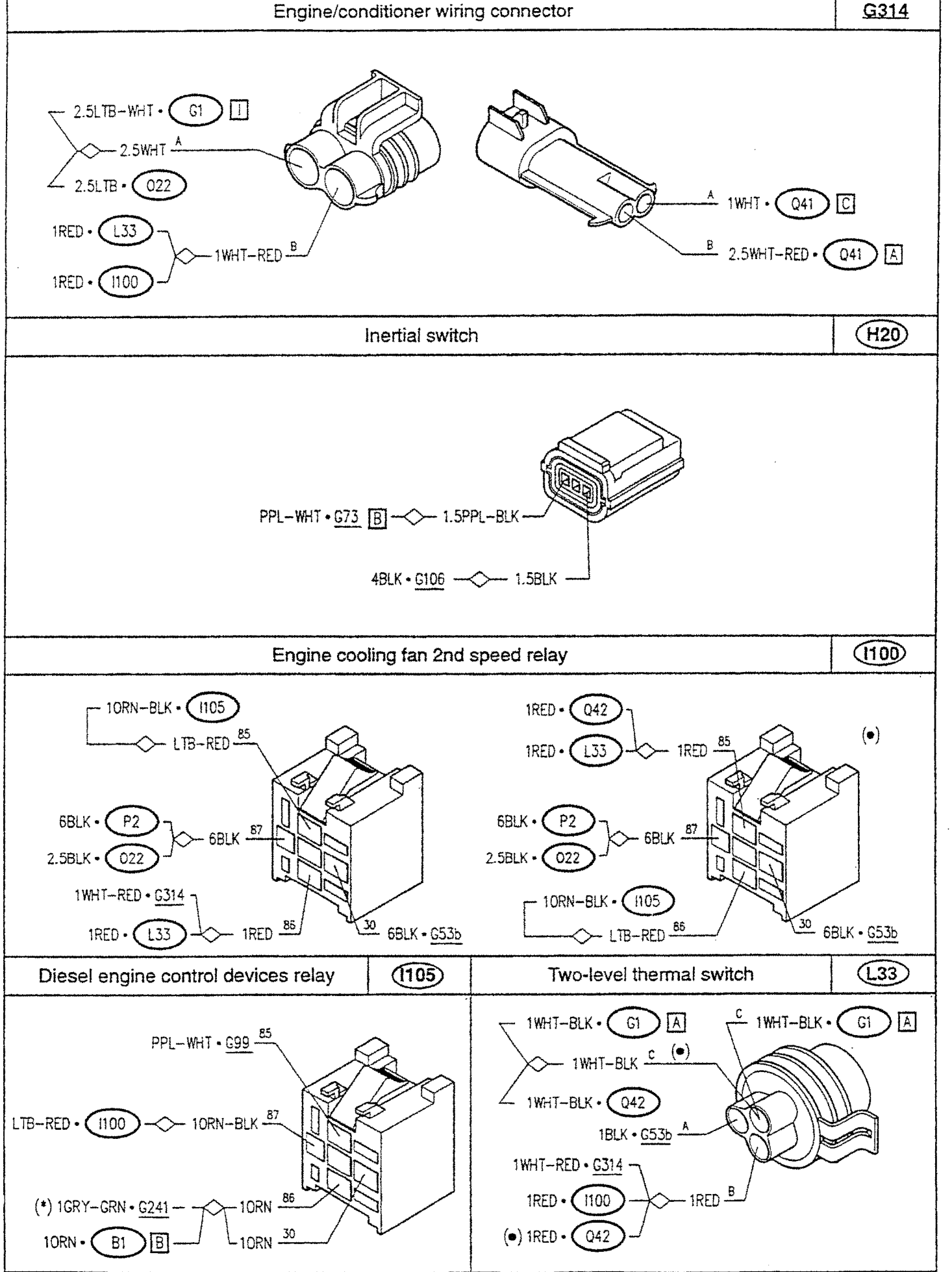

Connectors G314, H20, I100, I105 and L33 with wire colours and destinations

(*) Versions without ALFA ROMEO CODE, but with anti-theft system

(•) Variant from chassis no....
