CENTRAL PILLAR (WITH REAR WING REMOVED)

REMOVAL

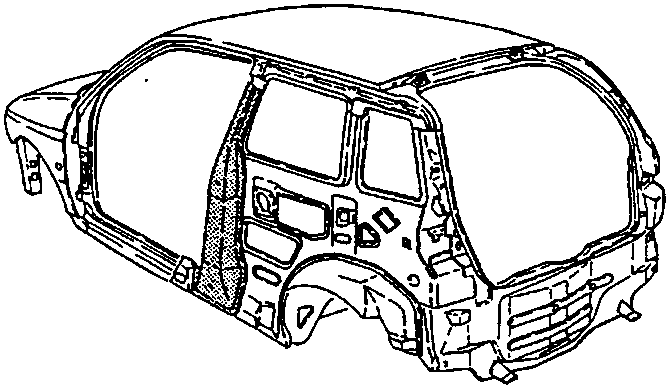

Central pillar with rear wing removed, showing the vehicle's body structure without the rear wing.
  1. Using a spot cutter, remove the accessible welding points; remove the remaining welding points using a drill.

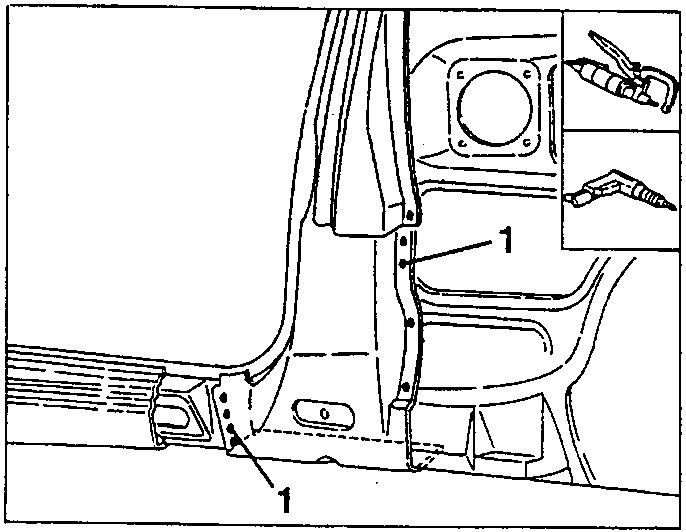

Close-up of the central pillar area showing welding points marked as '1' and a spot cutter tool.
  1. Using a spot cutter, remove the welding points shown in the diagram.

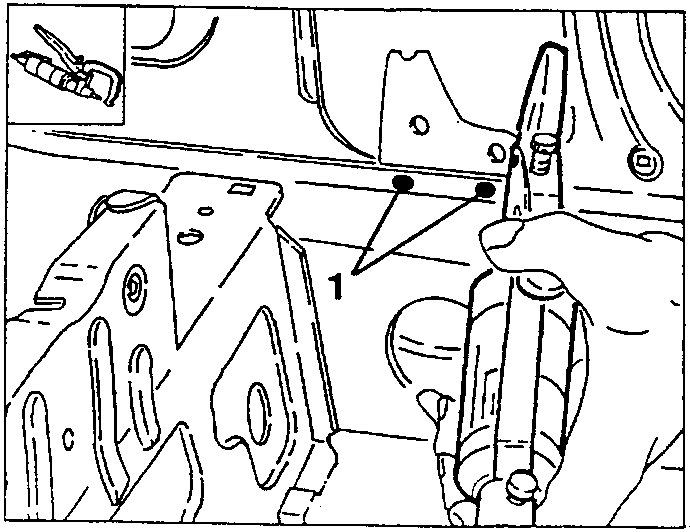

Close-up of a hand using a spot cutter to remove welding points on a metal structure.

PREPARATION

  1. Working on a bench trace out and perforate the new pillar with a drill and Ø 5 mm bit, as shown in the diagram.
  2. Trace as shown in the figure for subsequent assembly with the wheel arch.

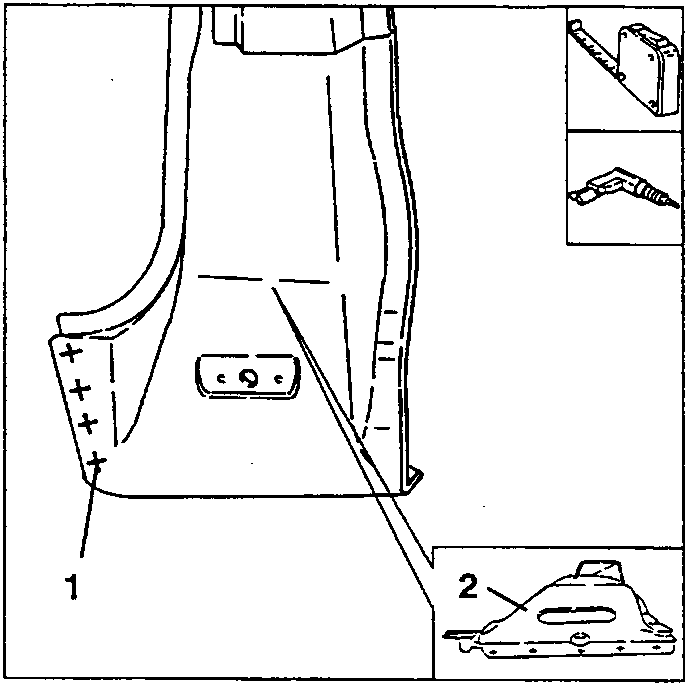

Diagram showing the tracing and perforation of the new pillar with a drill bit and a tool for marking the wheel arch area.
  1. Using a rotating brush, clean the area to be welded.
  • Apply the specified electroweldable protection to the areas to be spot welded.

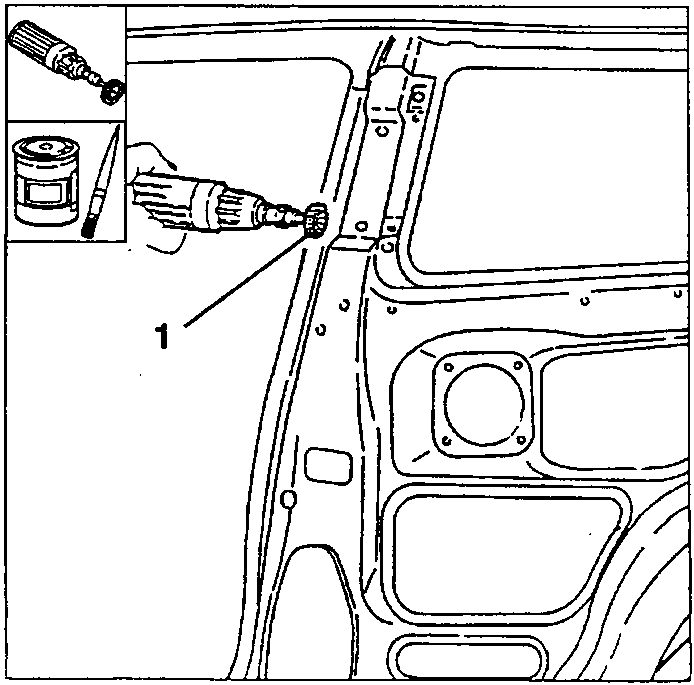

Diagram showing a welding tool being used to weld the central pillar area.
