Preparing and positioning

1. Using a spot cutter remove the accessible welds.

Remove the remaining welds using a drill.

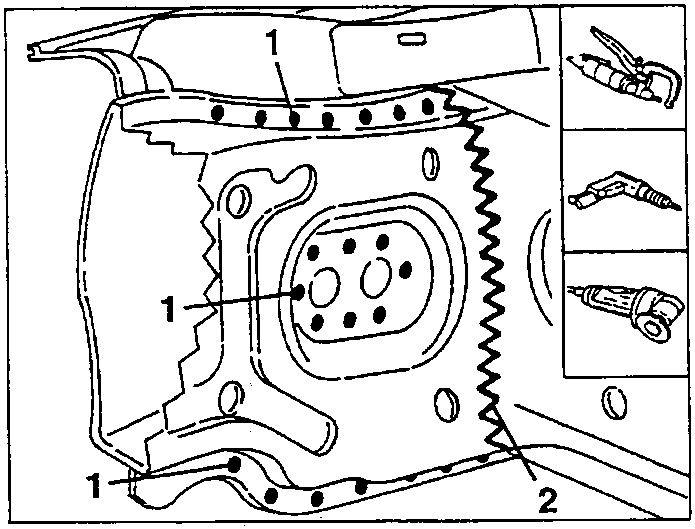

2. Using a circular saw, cut the inner side panel along the line shown in the diagram without damaging the underlying parts.

PREPARING AND POSITIONING

• Working on a bench use a jig saw to cut the new inner side panel allowing enough material for overlapping.
• Using a rotating brush clean around the edges of the inner and outer side panels on both sides of the sheet metal.
• Apply the specified electroweldable protection product to the areas to be spot-welded.

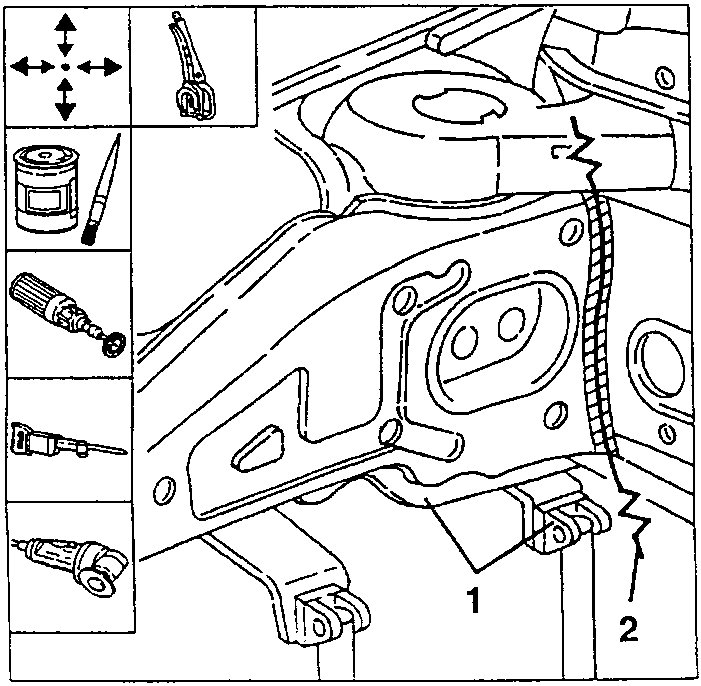

1. Using a jig correctly position the partial inner side panel and overlap as shown in the diagram; secure it with clamps and mate the edges to be welded.
2. Using a circular saw, trim the sheet metal to eliminate the excess parts.

WELDING AND FINISHING OF THE SHEET METAL

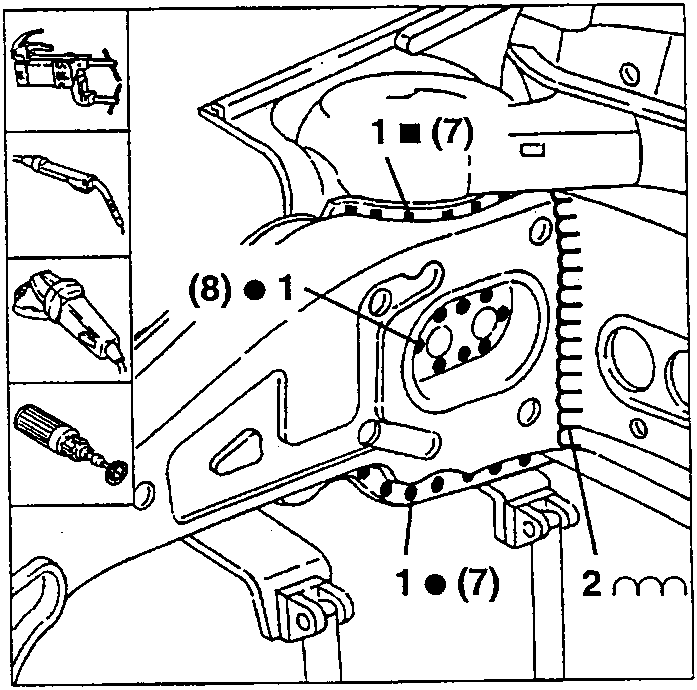

1. Using a spot-welder or, where necessary, a MIG welder, proceed as shown in the diagram.
2. Using a MIG welder, carry out seam welding.

• Using an abrasive grinding machine, remove and flush the residues left after welding.
• Using a rotating brush, clean the welded areas.

• Mount the partial outer side panel (see specific paragraph)

PROTECTION

• Apply the specified corrosion inhibitor to the areas to be welded MIG.

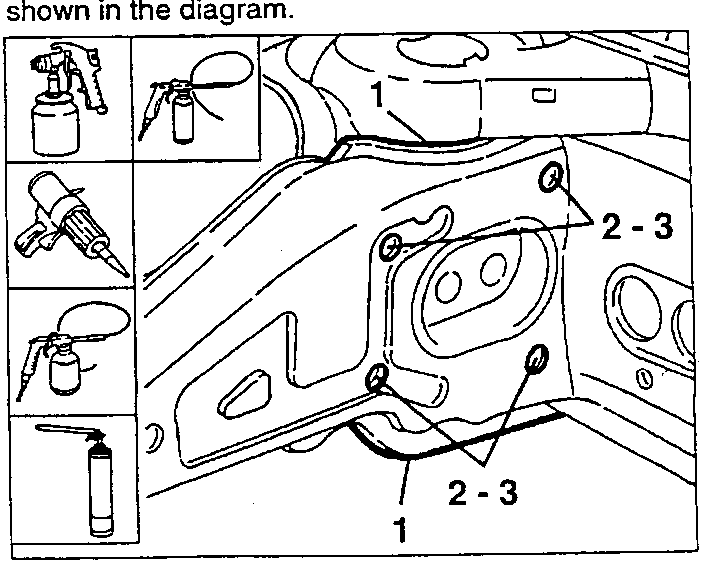

1. Apply the specified sealant along the join with the side panel.

• Proceed to the painting phase.

2. Centre the boxed parts through the holes shown in the diagram.
3. Foam treat the boxed parts through the holes shown in the diagram.
