Protection

PROTECTION

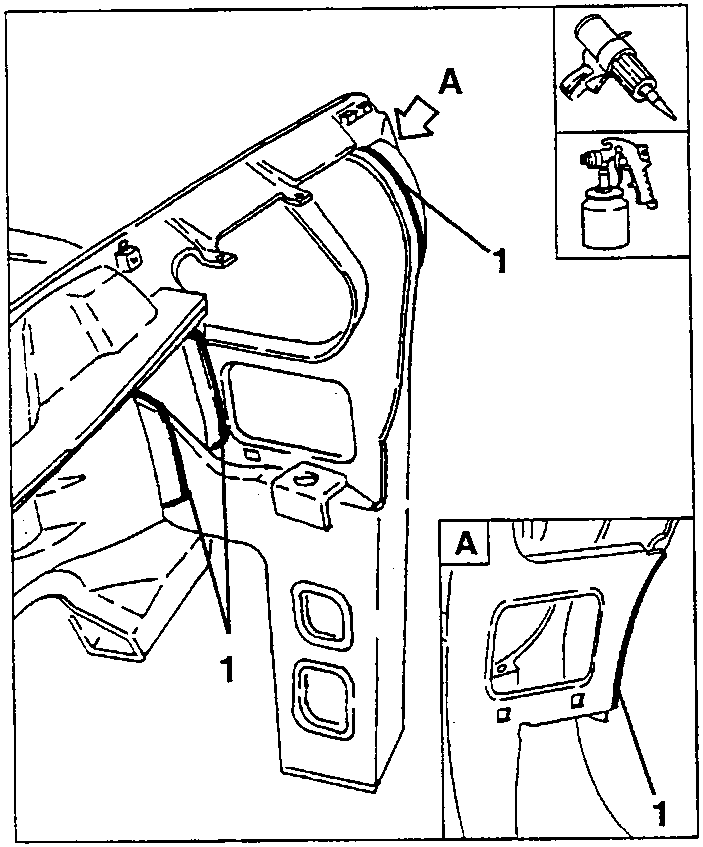

1. Apply the specified sealant along the lines highlighted in the diagram.

• Proceed to the painting phase.

• Refit the components removed by reversing the procedure followed for removal.

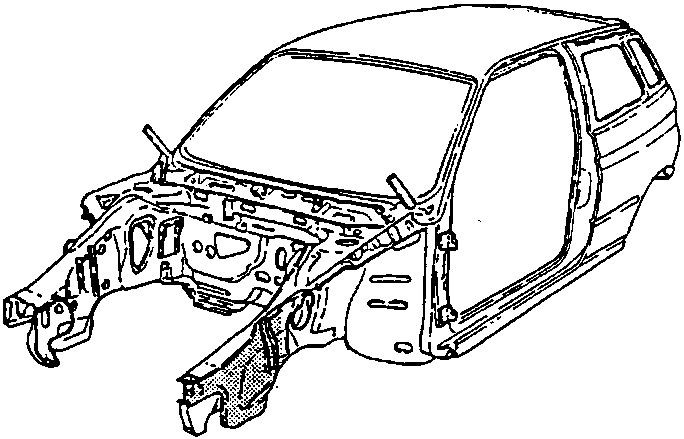

FRONT SIDE PANEL - EXTERNAL PART (Boxer versions)

PRELIMINARY OPERATIONS

• Disconnect the negative (-) cable from the battery and remove the control units.
• Remove the trim components, electrical and mechanical systems which could hinder the repair operations or get damaged during work (see specific paragraphs).
• Remove the following sheet metal parts:
• upper radiator crossmember (see specific paragraph).
• headlight housing frame (see specific paragraph).
• front wing on affected side (see specific paragraph).
• front crossmember, if necessary (see specific paragraph).
• upper panel on affected side (see specific paragraph).
• side panel on affected side (see specific paragraph).

REMOVAL

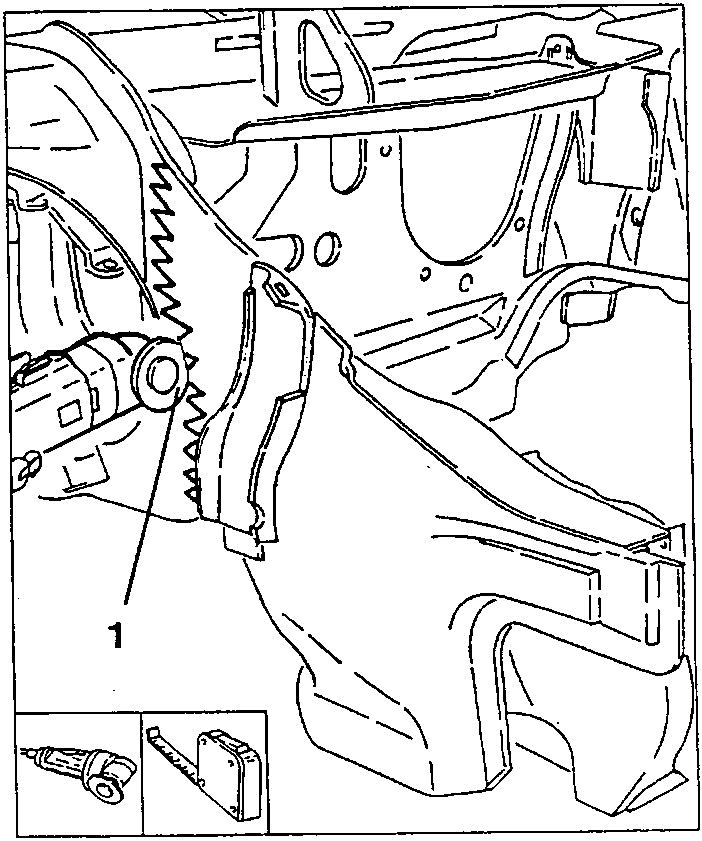

1. Using a circular saw, cut the external front side panel along the lines indicated in the diagram without damaging the underlying parts.

NOTE: The cut on the side panel must be about 50 mm from the front suspension attachment pillar.
