BodyworkFront pillar

FRONT PILLAR

PRELIMINARY OPERATIONS

  • Disconnect the negative (-) cable from the battery and remove the control units.
  • Remove the trim components, electrical and mechanical systems which could hinder the repair operations or get damaged during work (see specific paragraphs).
  • Remove the following sheet metal parts:
  • bonnet (see specific paragraph).
  • door on affected side (see specific paragraph).
  • front wing on affected side (see specific paragraph).

REMOVAL

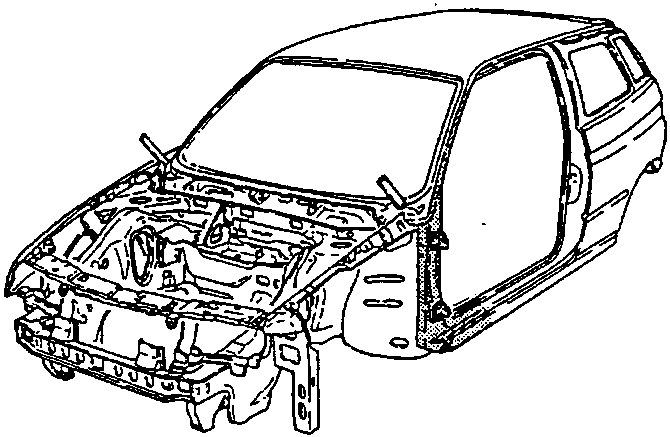

Car body with the front pillar area highlighted
  1. Using a circular saw, cut following the lines shown in the diagram, without damaging the underlying parts.

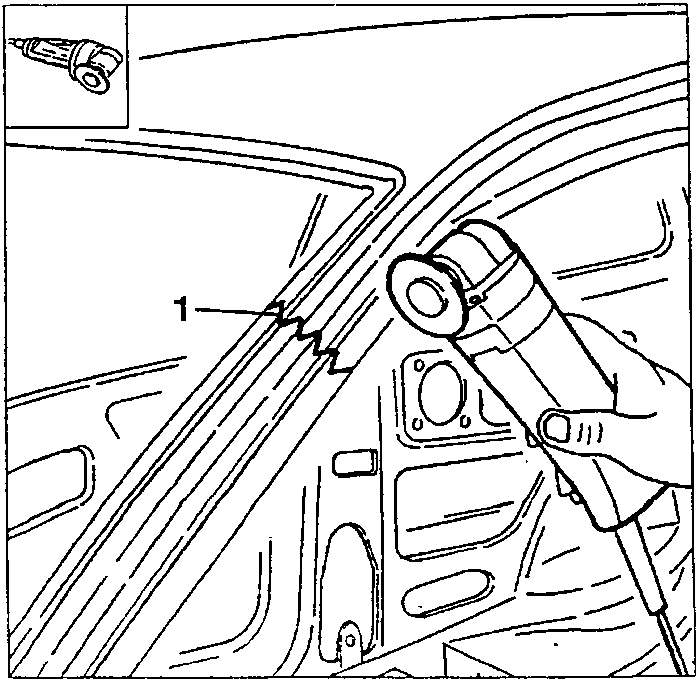

Cutting the front pillar with a circular saw along the line, position 1
  1. Using a jig saw, cut following the lines shown in the diagram, without damaging the underlying parts.

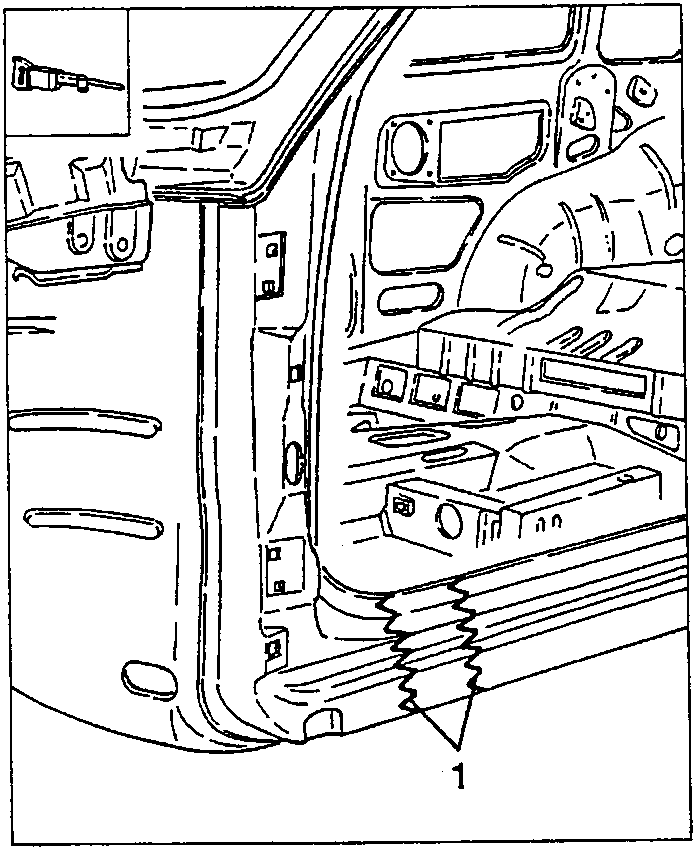

Cut line (1) on the lower front pillar made with a jig saw
  1. Using a rotating brush, clean the areas to be spot-cut to show up the welding points.

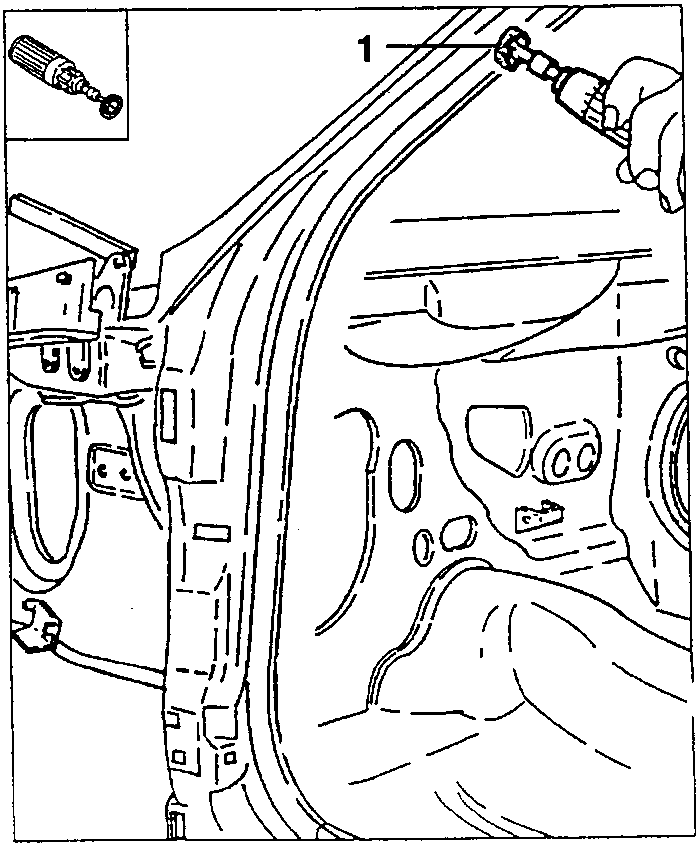

Cleaning the areas to be spot-cut with a rotating brush, position 1
