BodyworkPreparation

PREPARATION

  1. Using a rotating brush, clean the areas which are to be spot welded .
  • Apply the specified electroweldable protection product to the areas to be welded.

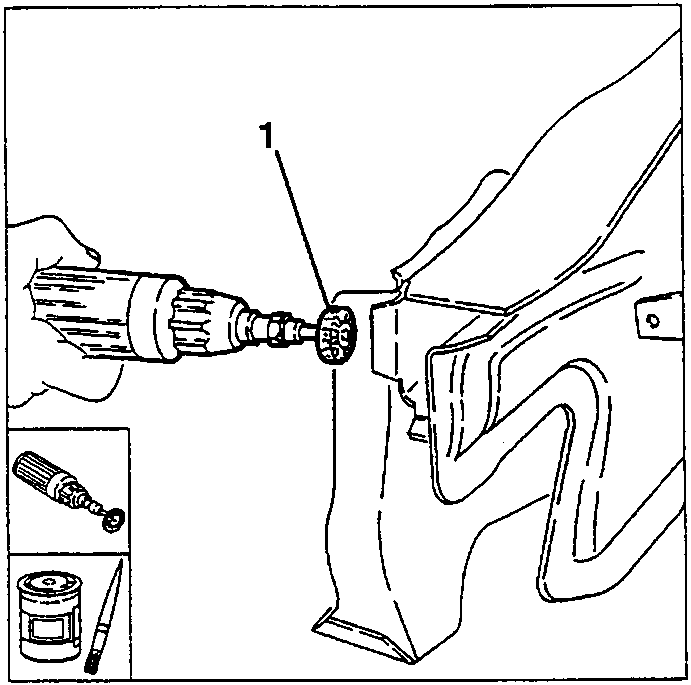

Cleaning the areas to be spot welded (1) with a rotating brush

POSITIONING

  1. Position the new crossmember by mating the edges to be welded and securing them with clamps.

NOTE: Use a jig if necessary.

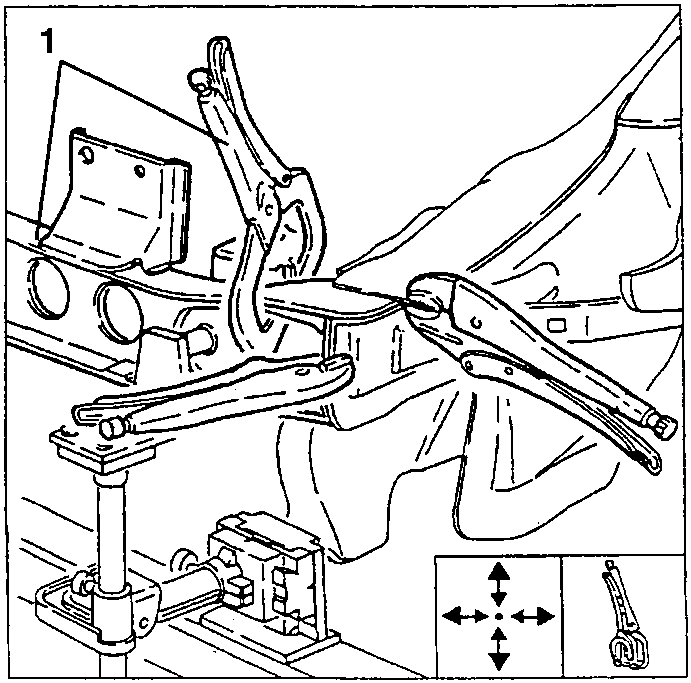

New crossmember (1) secured with clamps

WELDING AND FINISHING OF THE SHEET METAL

  1. Using a spot-welder or, where necessary, a MIG welder, proceed as shown in the diagram.

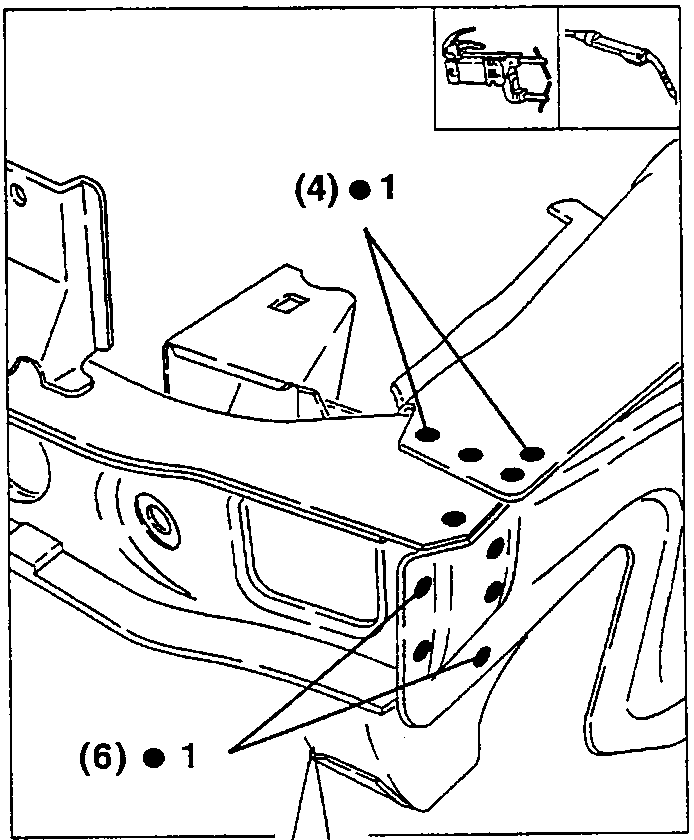

Weld points on the front crossmember: (4) and (6) points at 1

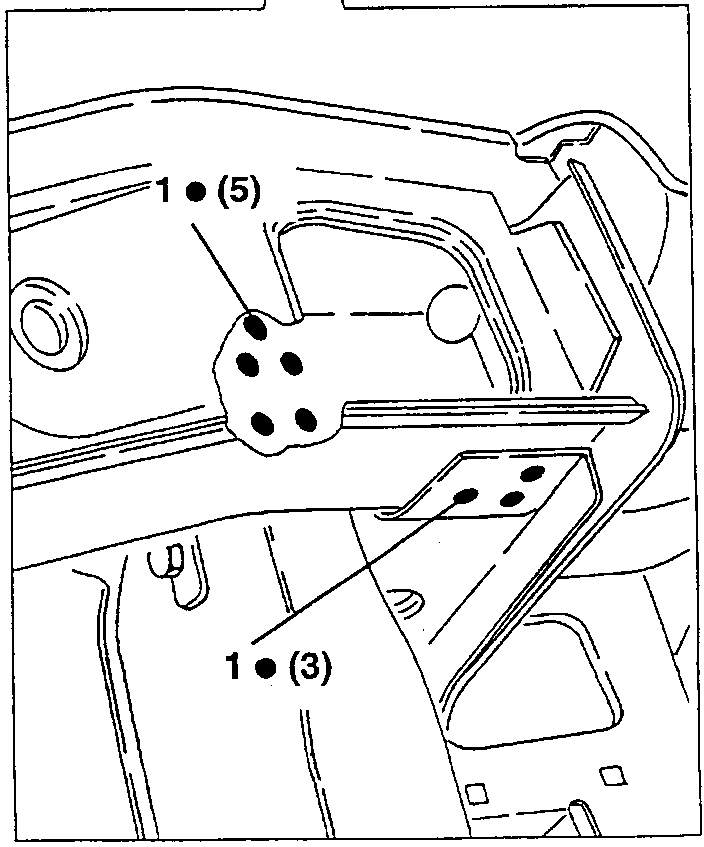

Weld points on the front crossmember: (5) and (3) points at 1
