Protection

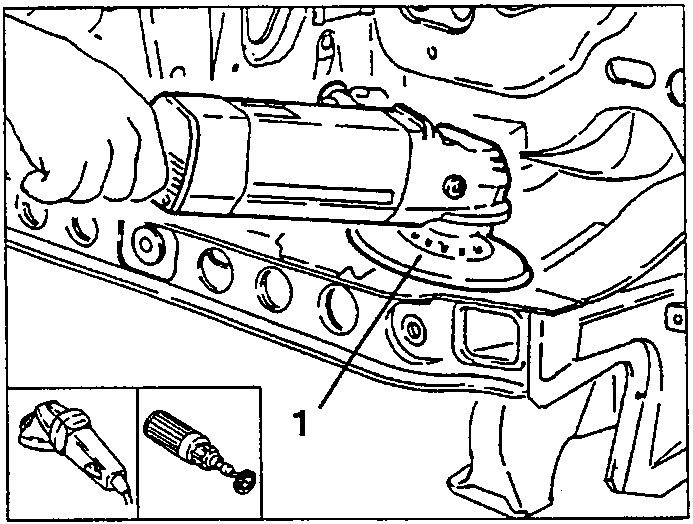

1. Using an abrasive grinding machine, remove and flush the residues left after welding.

• Using a rotating brush, clean the welded areas.

• Check that the components are correctly positioned after welding.

PROTECTION

• Apply the specified corrosion inhibitor to the areas which have been MIG welded.

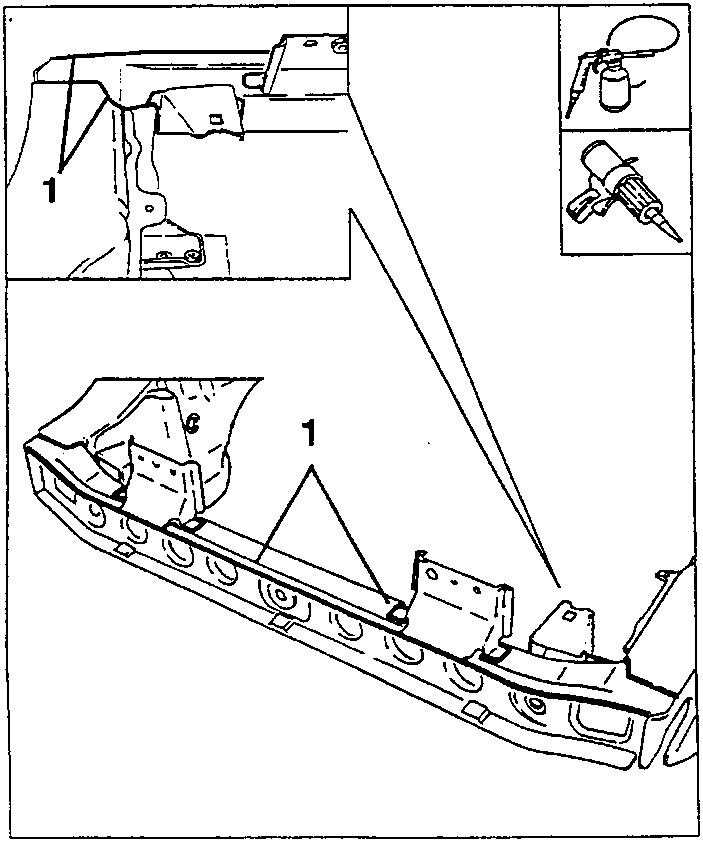

1. Apply the specified sealant along the lines highlighted in the diagram.

• Proceed to the painting phase.

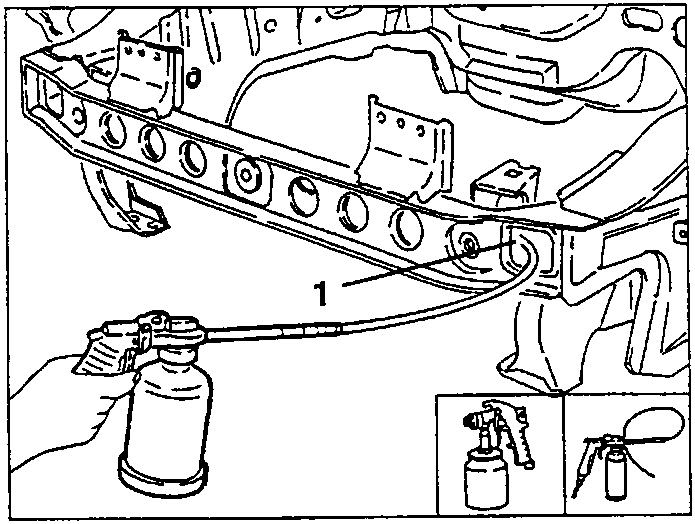

1. Wax-treat the boxed parts.

• Refit the components removed by reversing the procedure followed for removal.

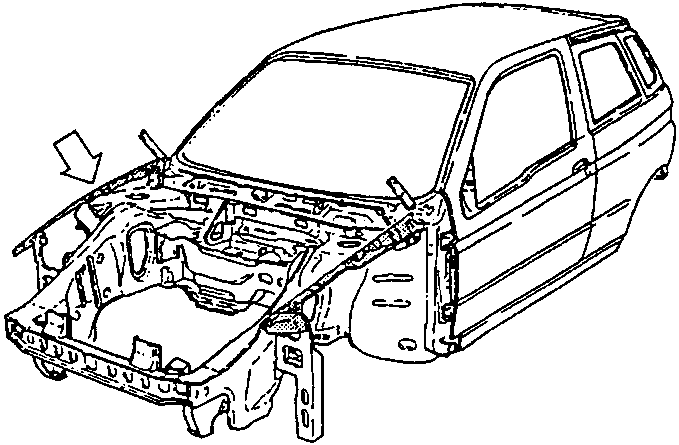

UPPER PANEL

PRELIMINARY OPERATIONS

• Disconnect the negative (-) cable from the battery and remove the control units.
• Remove the trim components, electrical and mechanical systems which could hinder the repair operations or get damaged during work (see specific paragraphs).
• Remove the following sheet metal parts:
• upper radiator crossmember (see specific paragraph).
• headlight housing frame on affected side (see specific paragraph).
• front wing on affected side (see specific paragraph).

REMOVAL
