Positioning

1. Position the new pillar on the rear wing and fix it with clamps.

• Fix the pillar to the wing using screws and the remove the clamps.

NOTE: Take the centering of the plate for attaching the door catch as a reference point for the installation of the pillar on the rear wing.

POSITIONING

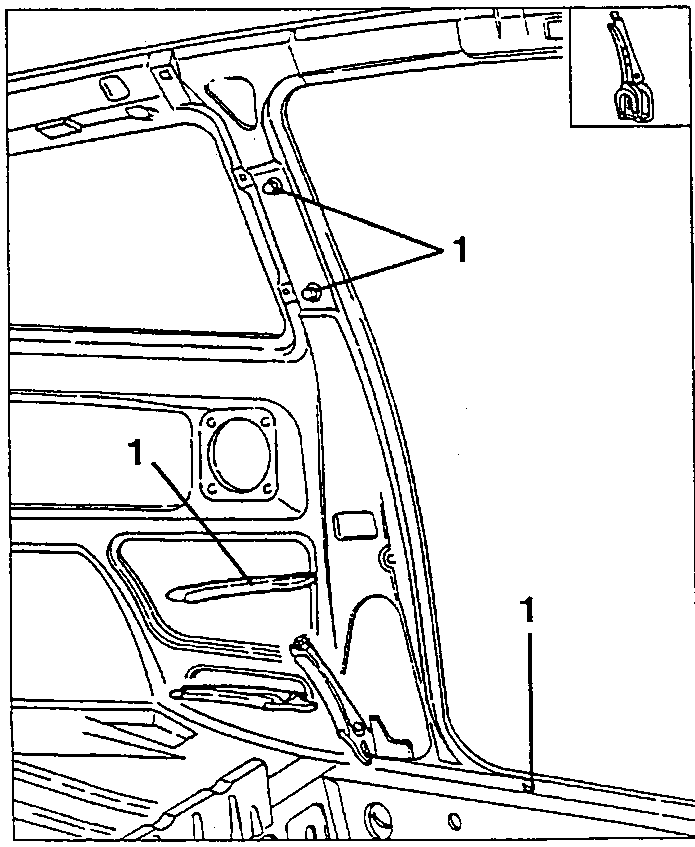

1. Install the assembled rear wing and pillar and secure it with clamps from the inside and with the two screws attaching the upper seatbelt attachment and a self-tapping screw.

• Check alignment of the door with its seals and parts which when installed make it possible to check the outcome of the operations.
• Remove the rear wing leaving the pillar in its correct position.

WELDING AND FINISHING THE SHEET METAL

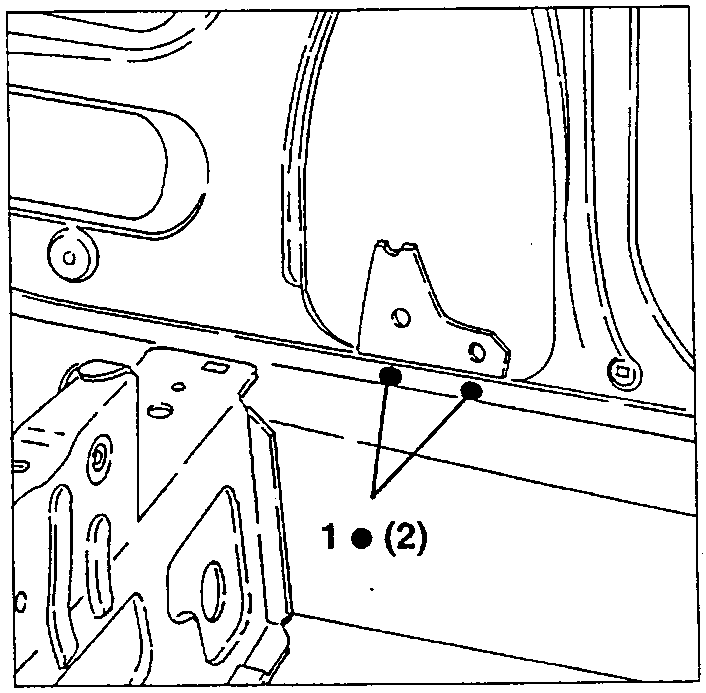

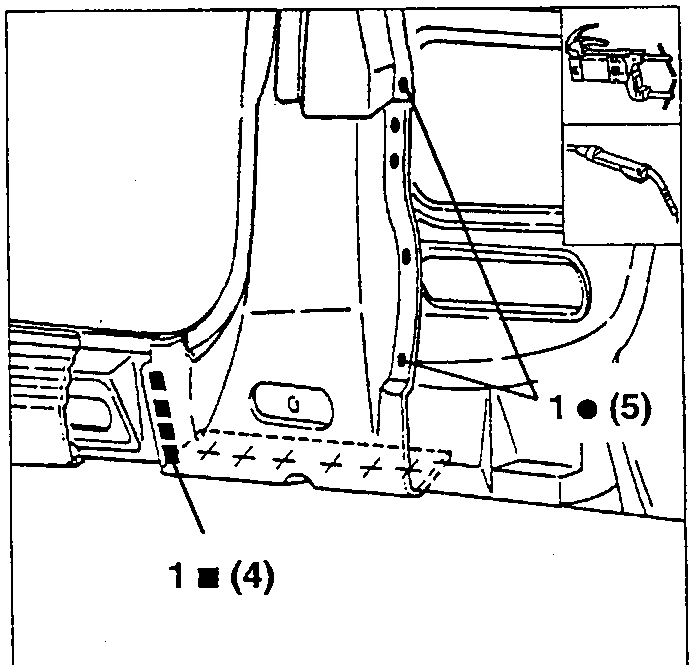

1. Using a spot welder or, where necessary, a MIG welder, proceed as shown in the diagram.

• Using an abrasive grinding wheel, remove and flush the residues left by welding.
• Using a rotating brush, clean the welded areas.
