BodyworkProtection

PROTECTION

  • Apply the specified corrosion inhibitor to the areas to be welded MIG.
  1. Apply the specified sealant to all the joints of the side panel.

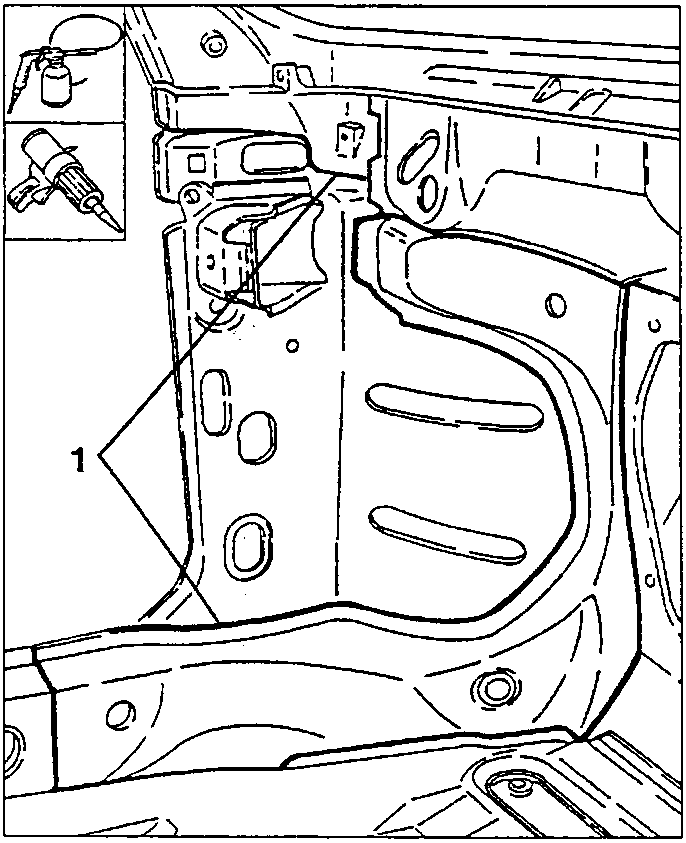

Applying corrosion inhibitor and sealant to the joints of the side panel, position 1

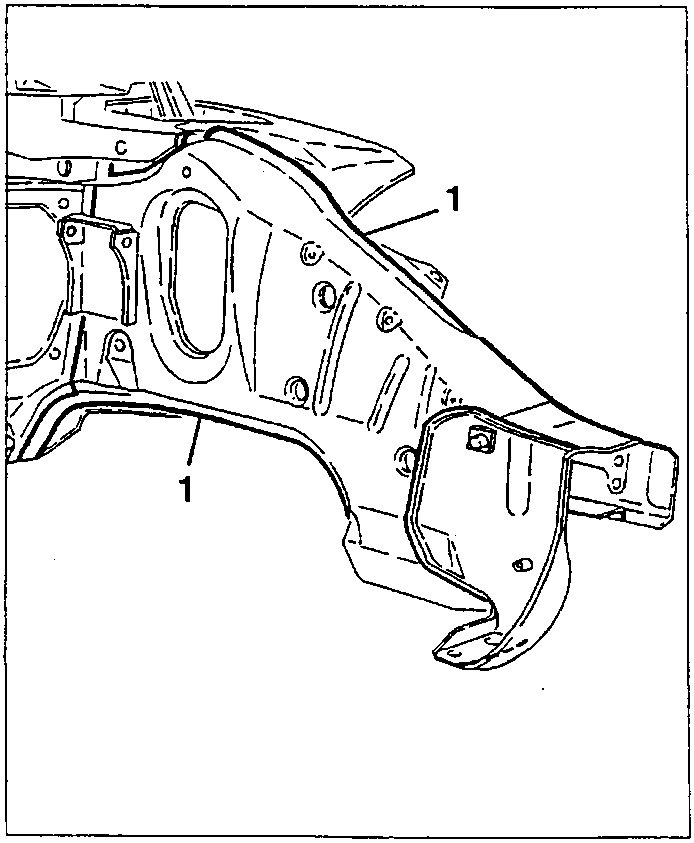

Sealant applied along the joints of the side panel, position 1

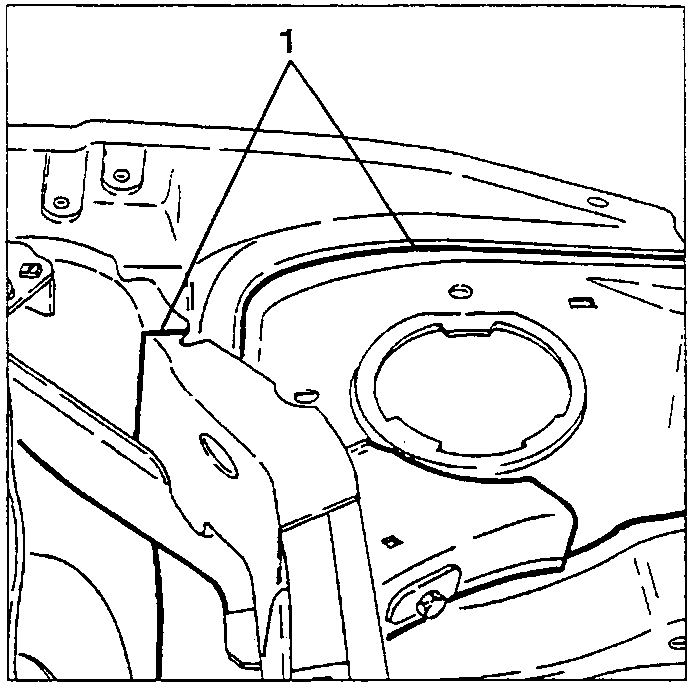

Sealed joints around the rear panel and wheel housing, position 1

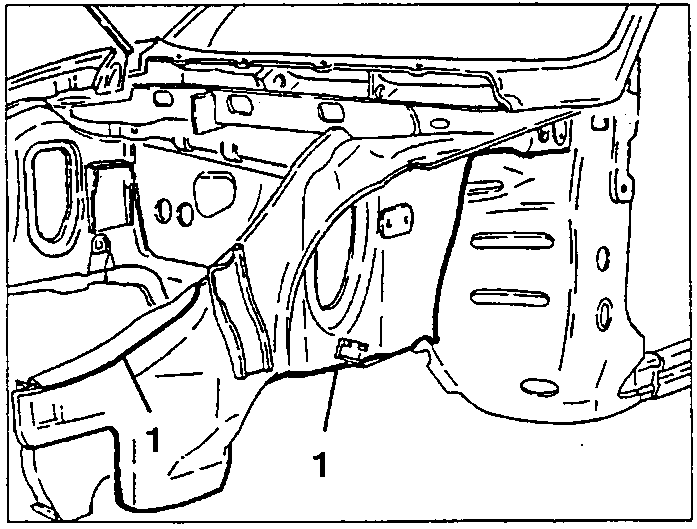

Sealed joints of the side panel, positions 1
  1. Apply the specified underbody protection to the replaced areas in the wheel housing.

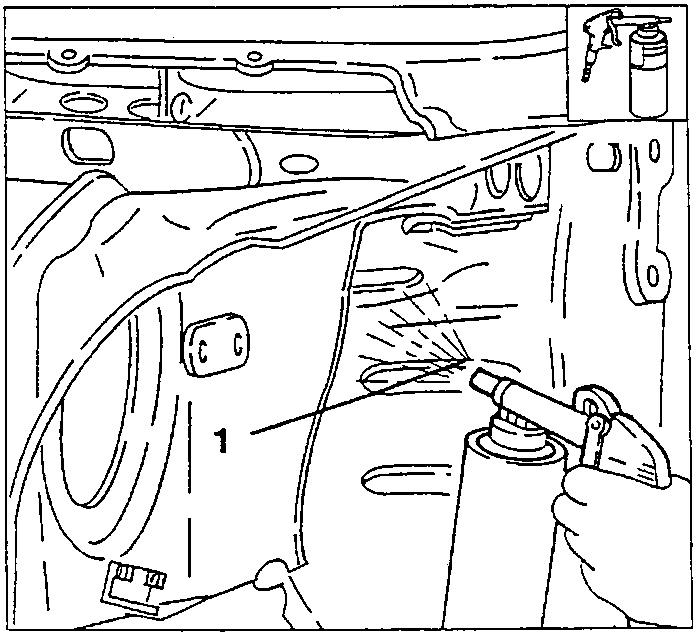

Spraying underbody protection onto the wheel housing, position 1
  • Proceed to the painting phase.
  • Wax-treat the boxed parts.
