Workshop Manuals Factory service & repair Alfa Romeo
Alfa Romeo 145/146 Factory Service Manual (1994-1999)11 · Bodywork
11 · Body & interior

Protection

Make
Alfa Romeo
Model
145/146 Factory Service Manual
Year
1994–1999
Section
Fixed bodywork components › Protection
BodyworkProtection
  1. Using an abrasive grinding wheel, remove and flush the residues left by welding.
  • Using a rotating brush clean the welded areas.

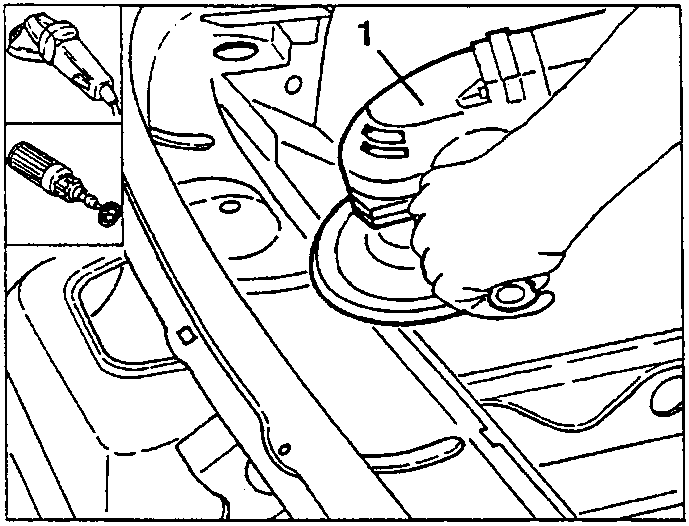

Grinding the welded area with an abrasive wheel (1)

PROTECTION

  1. Apply the specified corrosion inhibitor to the areas to be MIG welded.

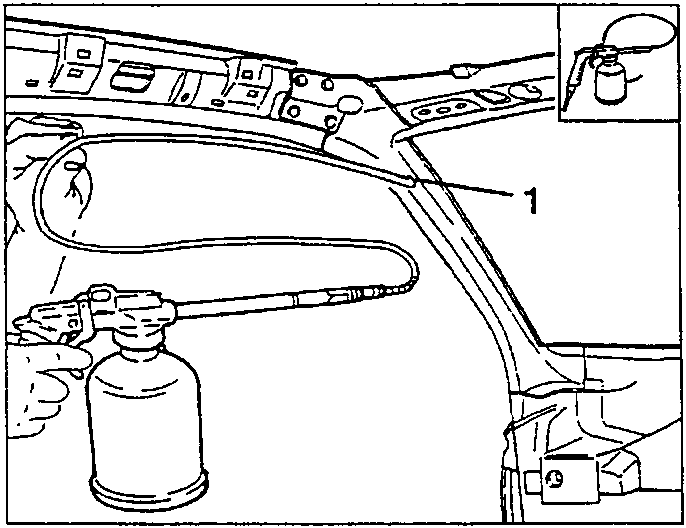

Applying corrosion inhibitor with a spray can (1)
  1. Apply the specified sealant along the lines shown in the diagram.

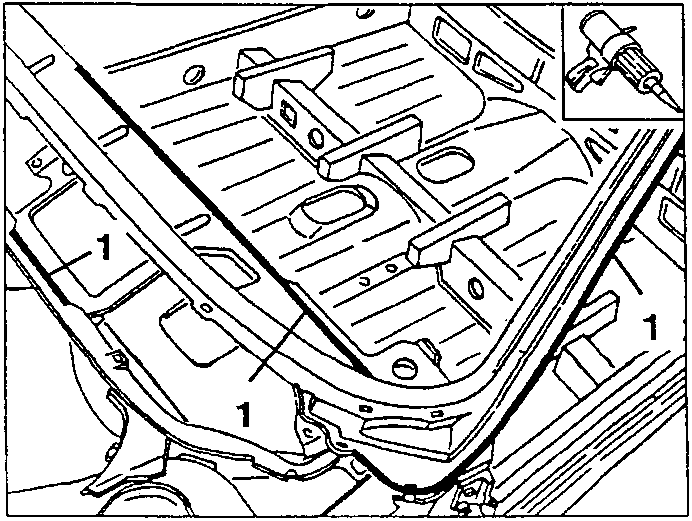

Sealant lines 1 on the windscreen frame
  • Proceed to the painting phase.
  • Proceed to the wax-treatment phase for the boxed parts.
  1. Proceed to the foam treatment phase for the front pillar as shown in the diagram.

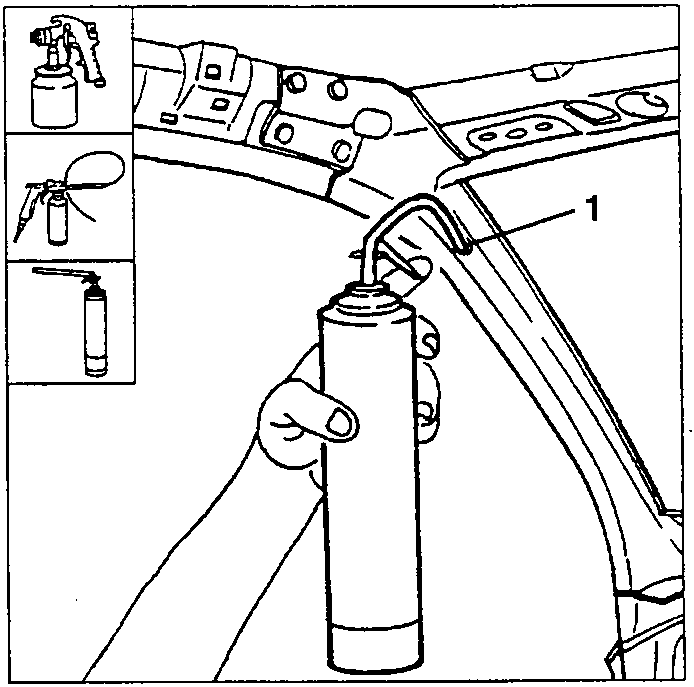

Foam treatment of the front pillar (1)

RIB

PRELIMINARY OPERATIONS

  • Disconnect the negative (-) cable from the battery and remove the electronic control units.
  • Remove the trim components, electrical and mechanical system which could hinder the repair operations or get damaged during work (see specific paragraphs).
  • Remove the following sheet metal parts:
    • boot (see specific paragraph).

REMOVAL

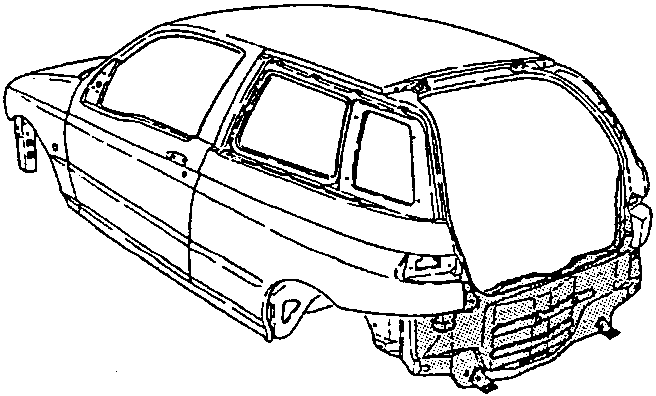

Body shell with the rear panel area shaded
