Preparation and inspection

PREPARATION AND INSPECTION

• Working on a bench with a jig saw cut the new rear wing, remembering to leave enough margin for overlapping.

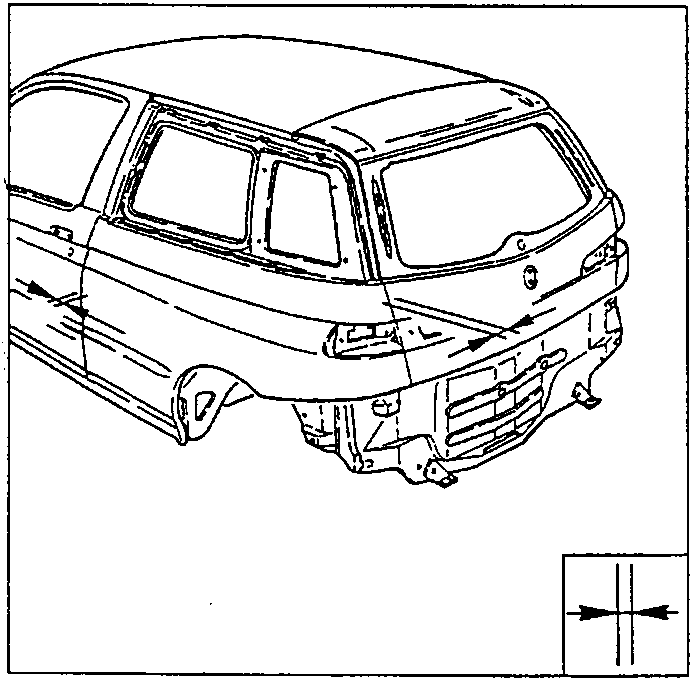

• Temporarily install the rear wing.
• Check parallelism, gaps and angles and refit the mobile components removed previously with their gaskets and the parts which, when fitted, permit verification of the success of the operations.

• Remove the components installed to check the correct positioning of the rear wing.

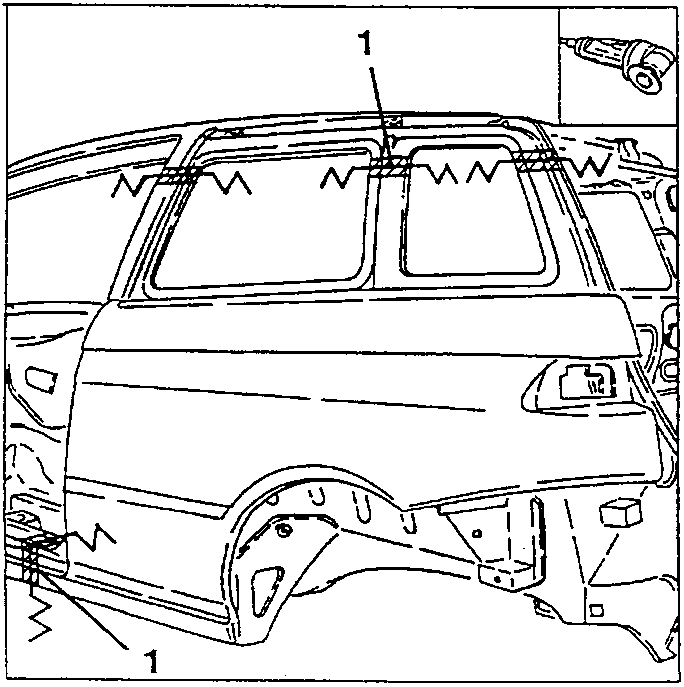

1. Using a circular saw, trim the excess sheet metal parts without damaging the underlying components.

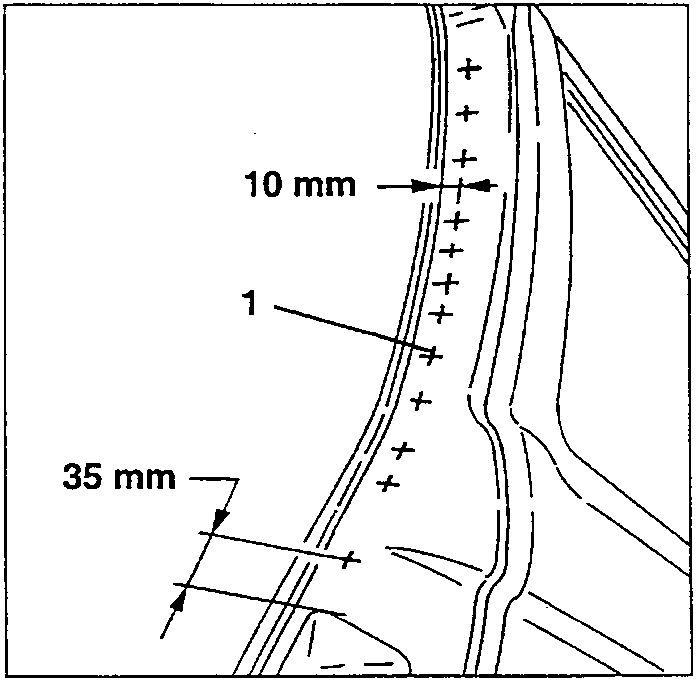

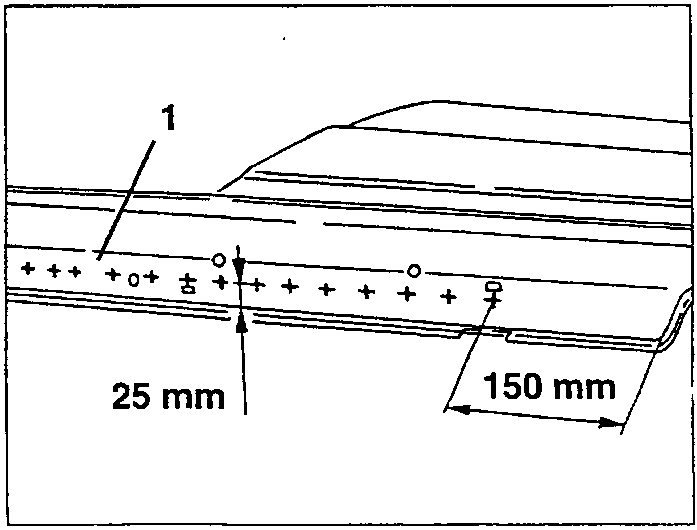

1. Remove the wing and, working on a bench trace out and perforate using a drill and Ø 5 mm bit, as shown in the diagram.
