BodyworkProtection
  • Refit the partial outer side panel (see specific paragraph).

PROTECTION

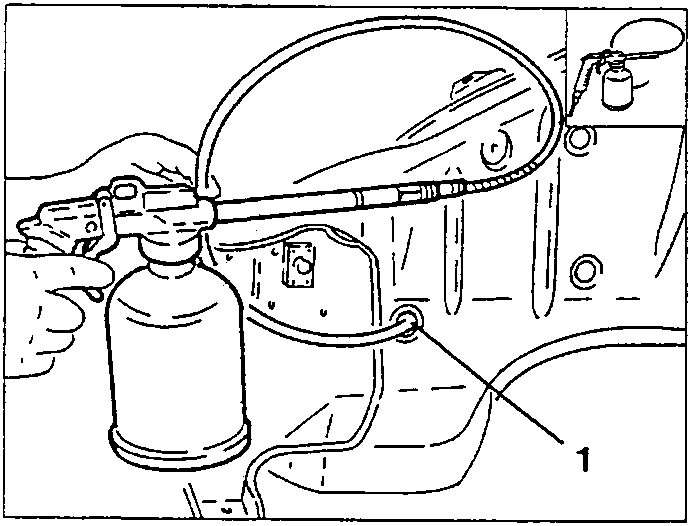

  1. Apply the specified corrosion inhibitor to the areas which have been MIG welded.
Person applying corrosion inhibitor spray to a car panel

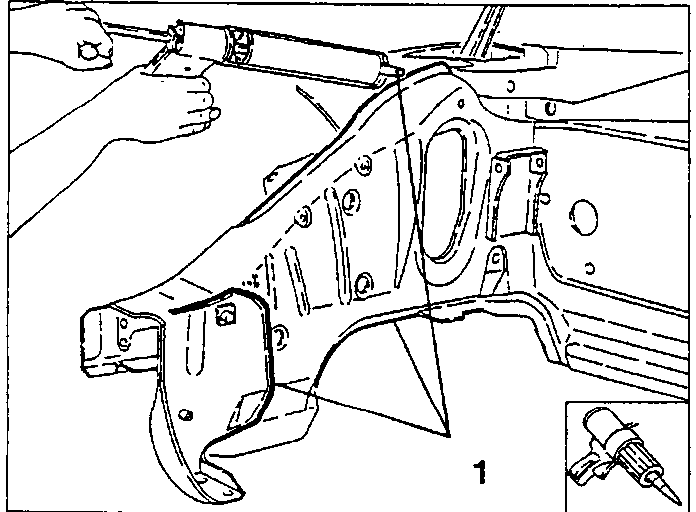

  1. Apply the specified sealant around the edges of the panel.
Sealant being applied around edges of a car panel

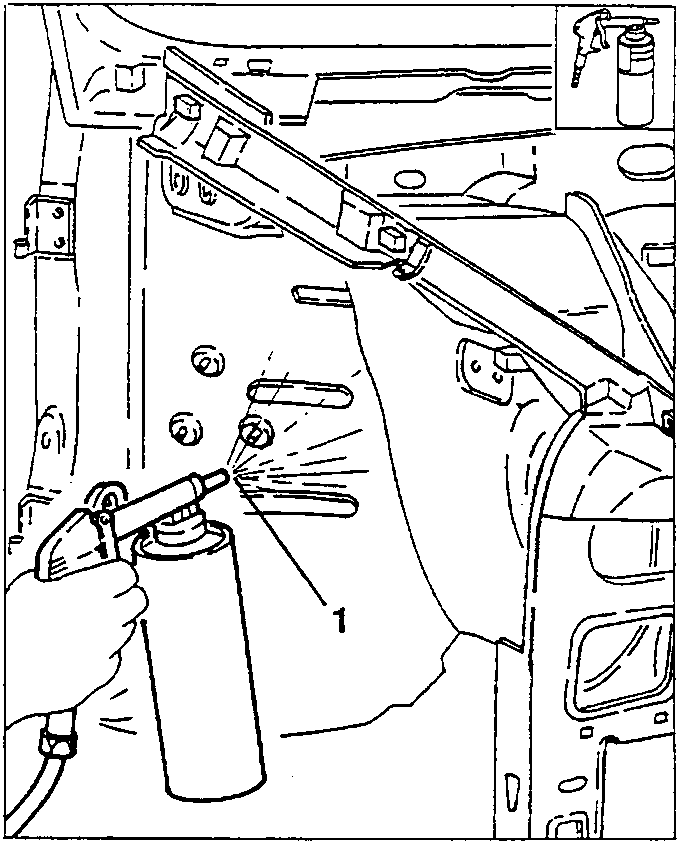

  1. Apply the specified underbody protection to the replaced areas.
Underbody protection being sprayed onto a car's undercarriage
  • Proceed to the painting phase.

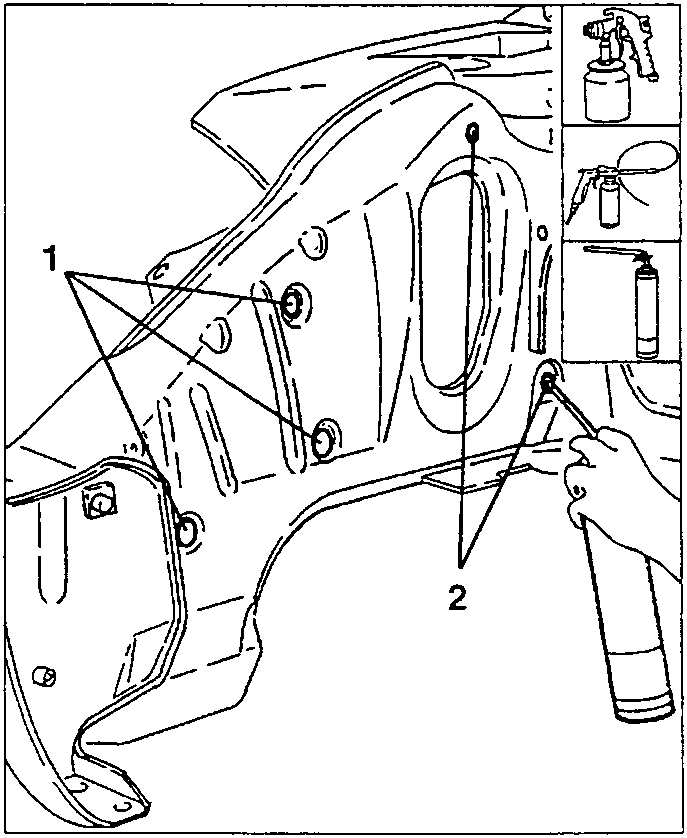

  1. Wax-treat the boxed parts through the holes shown in the diagram.
  2. Foam-treat the boxed parts through the holes shown in the diagram.
Wax and foam treatment being applied to boxed parts of a car
