POSITIONING

  1. Install the cross-member using a jig to position it. Join the edges to be welded.

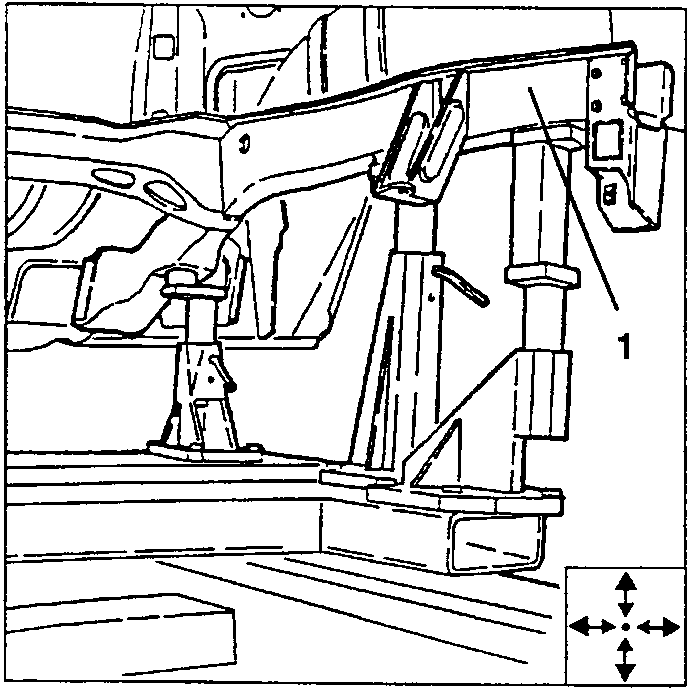

Cross-member positioned with jig and welding points marked

WELDING AND FINISHING THE SHEET METAL

  1. Using a MIG welder, proceed as shown in the diagram.
    2. Bend the clinch tabs.

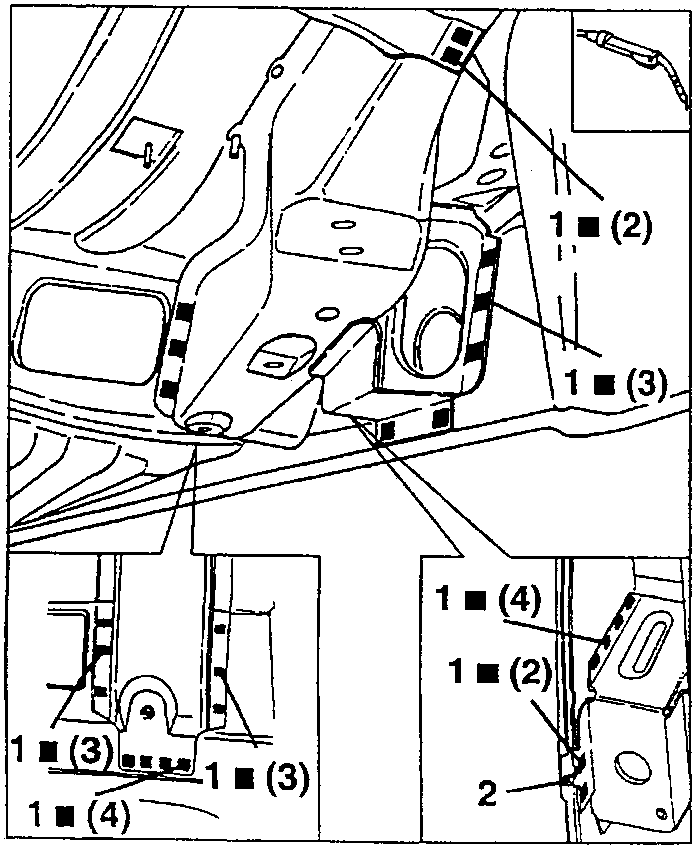

Welding and bending clinch tabs on sheet metal
  1. Using a MIG welder, proceed as shown in the diagram.

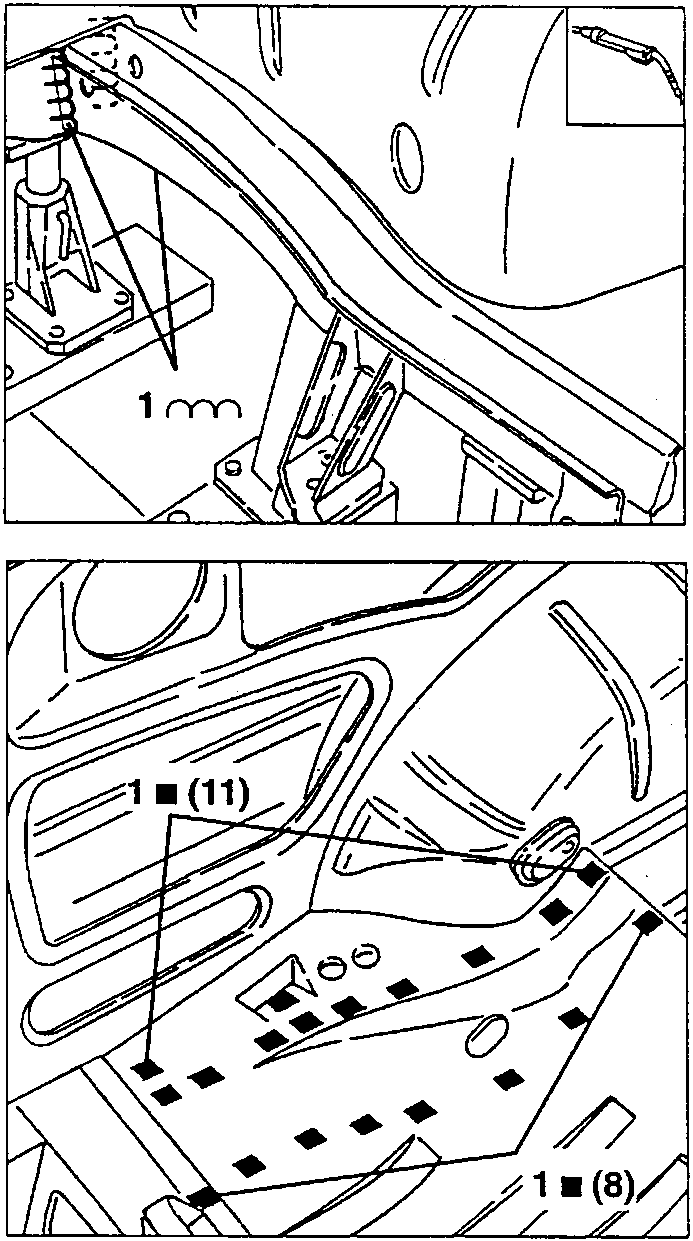

MIG welding process with specific weld points marked
  1. Using an abrasive grinding wheel, remove and flush the residues left by welding.
    - Using a rotating brush, clean the welded areas.

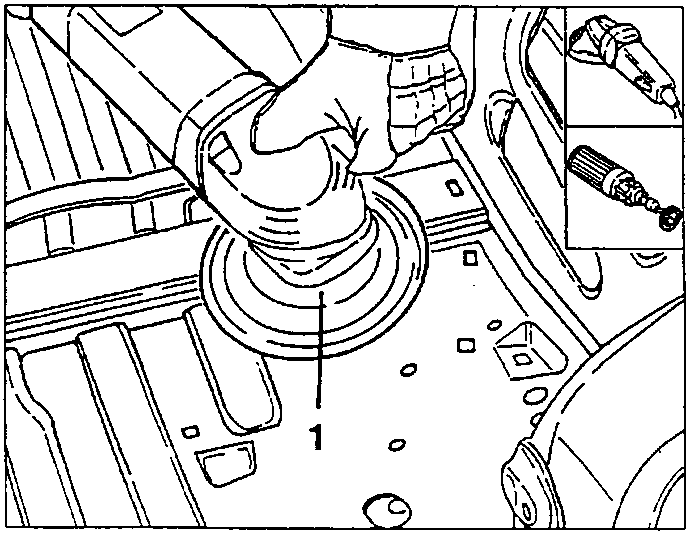

Grinding and brushing welded areas to finish
