BodyworkProtection

PROTECTION

  1. Apply the specified corrosion inhibitor to the areas to be welded MIG, through the holes shown in the diagram.

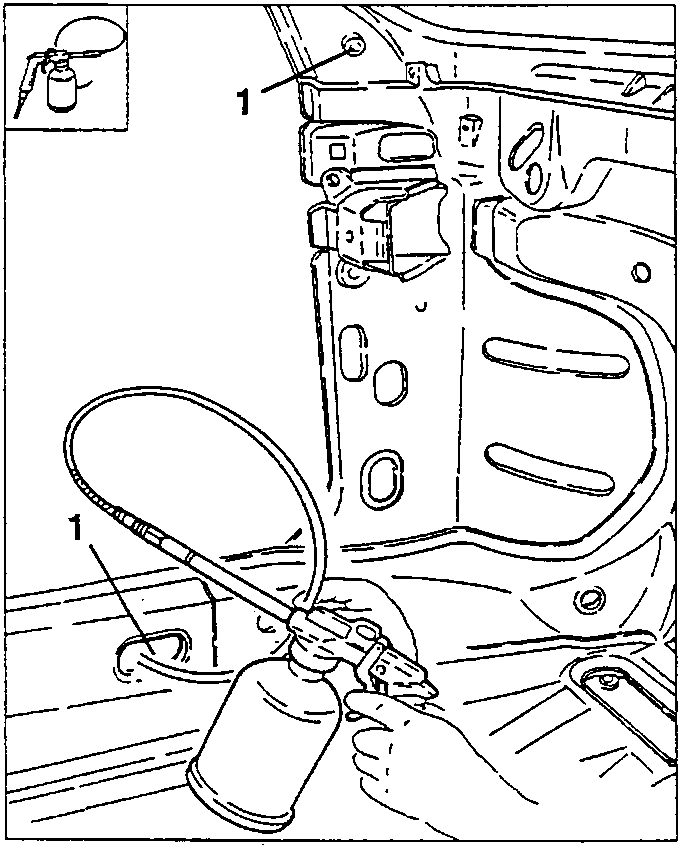

Applying corrosion inhibitor to the areas to be welded MIG through the holes, positions 1
  1. Apply the specified sealant along the lines highlighted in the diagram.
  • Apply the specified underbody protection to the replaced areas.
  • Proceed to the painting phase.

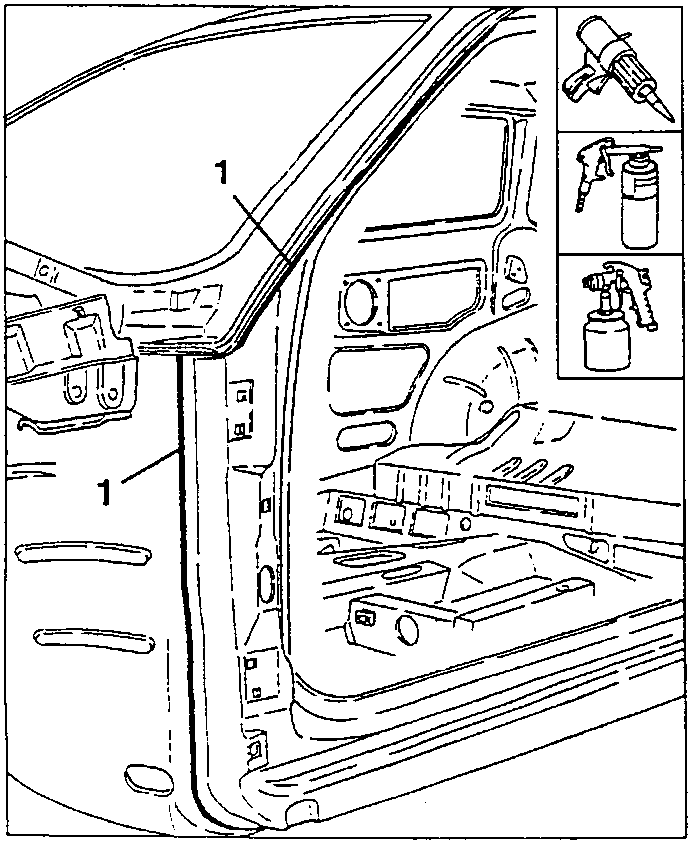

Sealant applied along the highlighted lines of the front pillar, positions 1
  1. Wax treat the boxed parts through the hole shown in the diagram.
  2. Foam treat the boxed parts through the hole shown in the diagram.

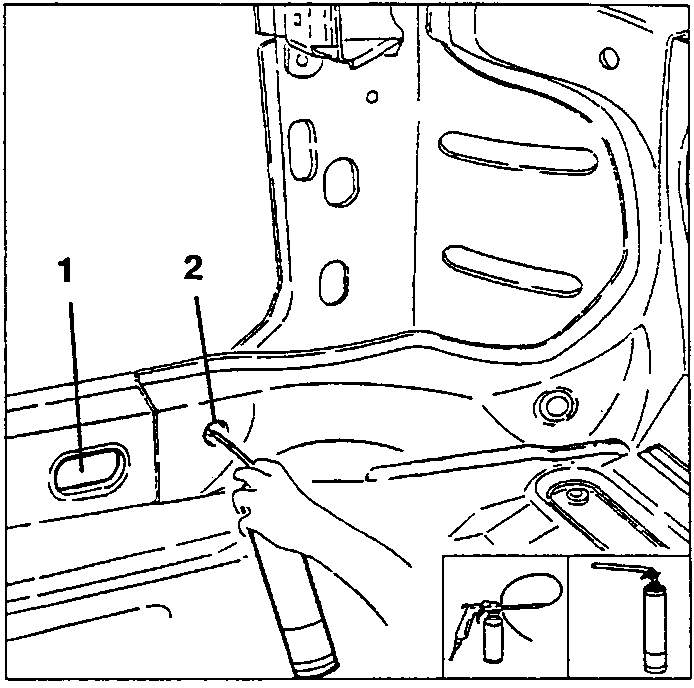

Holes for wax treating (1) and foam treating (2) the boxed parts

DOOR SILL RAIL

PRELIMINARY OPERATIONS

  • Disconnect the negative (-) cable from the battery and remove the control units.
  • Remove the trim components, electrical and mechanical systems which could hinder the repair operations or get damaged during work (see specific paragraphs).
  • Remove the following sheet metal parts:
  • door on affected side (see specific paragraph).
  • front wing on affected side (see specific paragraph).

REMOVAL

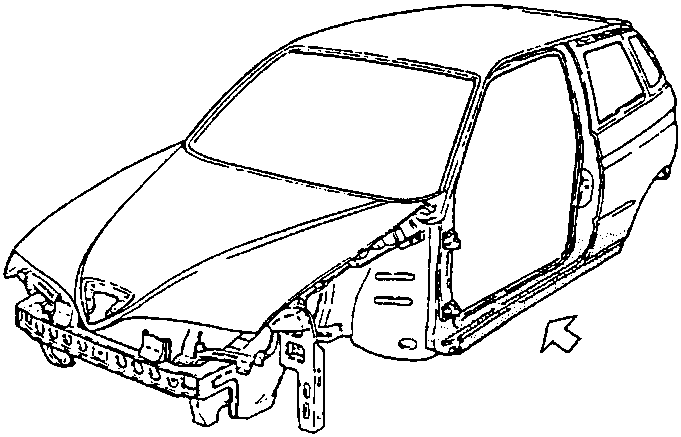

Car body with the door sill rail area highlighted
