EngineAir pressure sensor - r + r
AIR PRESSURE SENSOR - R + R
Removing
- Disconnect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R
Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

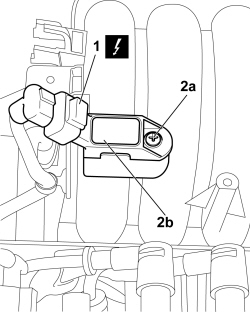

1. Disconnect the electrical connection for the absolute pressure sensor.
| Description | Connector | |
|---|---|---|
| 1 | Absolute pressure sensor | See K048 ABSOLUTE PRESSURE SENSOR |
2. Undo the fixing bolts (2a) and remove the absolute pressure sensor (2b).
Refitting

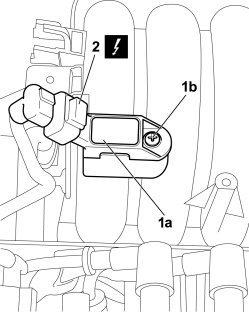

1. Place the absolute pressure sensor (1a) in position and tighten the fixing bolt (1b).
2. Connect the electrical connection for the absolute pressure sensor.
| Description | Connector | |
|---|---|---|
| 2 | Absolute pressure sensor | See K048 |
Op. 1048A10 AIR FILTER ASSEMBLY - R.R.
Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R
- Connect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
