INTAKE AIR PRESSURE/TEMPERATURE SENSOR - R.R.

Operation 1056B54 · MULTI-POINT INJECTION SYSTEM (MPI)

1.2 8v

Removing

- Disconnect the negative battery terminal

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

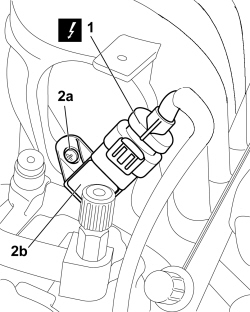

1. Disconnect the electrical connection for the aspirated air pressure/temperature sensor.

2. Undo bolts (2a) and remove aspirated air pressure/temperature sensor (2b).

Refitting

1. Position aspirated air temperature/pressure sensor (1b) in its housing and screw in retaining bolt (1b).

2. Connect the electrical connection for the aspirated air temperature/pressure sensor.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

- Connect the negative battery terminal

1.4 16v

Removing

- Disconnect the negative battery terminal.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

1. Disconnect the electrical connection for the intake air pressure/temperature sensor.

2. Undo the fixing bolt (2a) and remove the intake air pressure/temperature sensor (2b).

Refitting

1. Place the intake air pressure/temperature sensor (1a) in position and tighten the fixing bolt (1b).

2. Connect the electrical connection for the intake air temperature/pressure sensor.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

- Connect the negative battery terminal.
