Fiat 500 Factory Service Manual (2007-2024)08 · Engine
08 · Engine

Injector cable loom - r.r.

Make
Fiat
Model
500 Factory Service Manual
Year
2007–2024
Section
Petrol injection system › Injector cable loom - r.r.
EngineInjector cable loom - r.r.

INJECTOR CABLE LOOM - R.R.

Operation 1056B95 · MULTI-POINT INJECTION SYSTEM (MPI)

1.2 8v

Removing

- Disconnect the negative battery terminal.

DescriptionConnector
BatterySee A001 BATTERY

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

1. Discharge the fuel pressure from the common rail, using the specific tool.

ToolDescriptionFunctionValidity
1.870.684.000Quick coupling connectorPressure exhaust on single fuel manifold pipe

1.2 8V

1.4 16V

INJECTOR CABLE LOOM - R.R.

- Remove the tool at the end of the operation.

ToolDescriptionFunctionValidity
1.870.684.000Quick coupling connectorPressure exhaust on single fuel manifold pipe

1.2 8V

1.4 16V

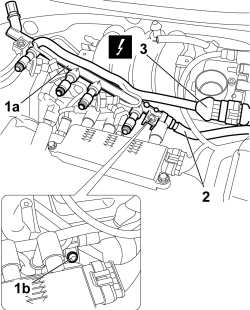

1. Undo retaining bolts (1a) and prise up common rail (1b) from its housing.

2. Disconnect the injectors electrical wiring coupling.

DescriptionConnector
2Injector couplingSee D081 INJECTOR JUNCTION

3. Disconnect the fuel supply pipe from the common rail by pressing on the quick coupling.

INJECTOR CABLE LOOM - R.R.

- Remove the common rail assembly.

Refitting

1. Position common rail assembly (1a) in its housing and secure it with bolts (1b).

2. Connect the fuel supply pipe to the common rail by pressing on the quick coupling.

3. Connect the injectors electrical wiring coupling.

DescriptionConnector
3Injector couplingSee D081 INJECTOR JUNCTION
INJECTOR CABLE LOOM - R.R.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

- Connect the negative battery terminal.

DescriptionConnector
BatterySee A001 BATTERY
