PHASE TRANSFORMER ELECTROMAGNET - R.R.
Removing
- Disconnect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R
Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

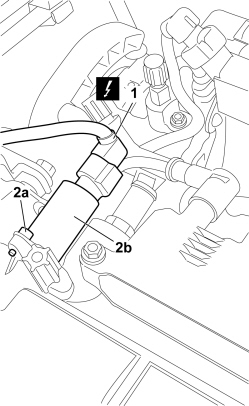

1. Disconnect the electrical connection for the engine phase transformer.
| Description | Connector | |
|---|---|---|
| 1 | Variable valve timing actuator | See N076 PHASE TRANSFORMER ACTUATOR |
2. Undo the fixing bolt (2a) and remove the engine phase transformer (2b).
Refitting

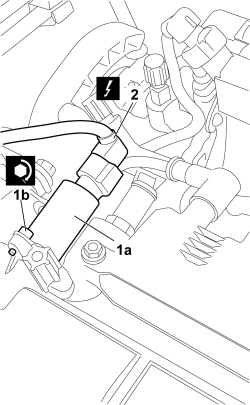

1. Place the engine phase transformer (1a) in position and tighten the fixing bolt (1b) to the recommended torque.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| Timing sensor | Bolt | M6 | 0.8 | 1.2 8v 1.4 16V |
2. Cconnect the electrical connection for the engine phase transformer.
| Description | Connector | |
|---|---|---|
| 1 | Variable valve timing actuator | See N076 |
Op. 1048A10 AIR FILTER ASSEMBLY - R.R.
Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R
- Connect the negative battery terminal.
| Description | Connector | |
|---|---|---|
| Battery | See A001 BATTERY |
