Diesel pressure pump

Description 1060E

1.9 JTD 8v

Type

It is the 'radial jet' type with three radial pistons (total capacity 0.567 cm³) and is driven by the timing belt without requiring synchronization.

1.9 JTD 16v

Type

It is the 'radial jet' type with three radial pistons (total capacity 0.567 cm3) and is driven by the timing belt without requiring synchronization.

1.9 JTD 8v

Structure

Each pumping unit consists of:

• a piston (5) operated by a cam (2) fixed to the pump (6) shaft;
• an inlet plate valve (3);
• a supply ball valve (4).

The pressure pump must be supplied with a pressure of at least 0.5 bar; so the fuel system has an auxiliary pump immersed in the fuel tank.

The maximum supply pressure reaches 1350 bar (for 80 CV-115 CV versions) and 1400 bar (for the 140 CV 16V version).

The pressure pump is lubricated and cooled by the same fuel by means of suitable ducts.

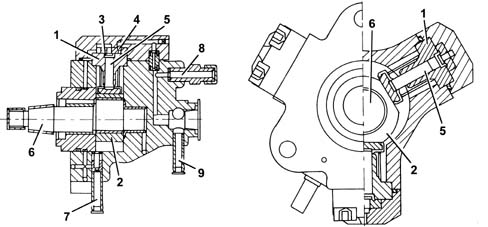

1 - Cylinder

2 - Cam

3 - Inlet valve

4 - Supply ball valve

5 - Piston

6 - Pump shaft

7 - Inlet - low pressure (from the fuel filter)

8 - Supply - high pressure (to the single fuel manifold)

9 - Supply - low pressure (to the fuel return manifold)

1.9 JTD 16v

Structure

Each pumping unit consists of:

• a piston (5) operated by a cam (2) fixed to the pump (6) shaft;
• an inlet plate valve (3);
• a supply ball valve (4).

The pressure pump must be supplied with a pressure of at least 0.5 bar; so the fuel system has an auxiliary pump immersed in the fuel tank.

The maximum supply pressure reaches 1400 bar.

The pressure pump is lubricated and cooled by the same fuel by means of suitable ducts.

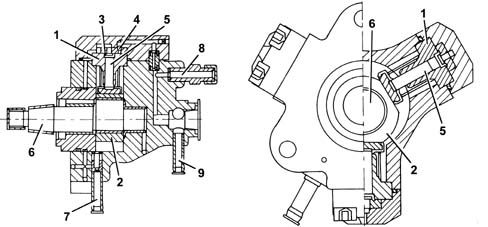

1 - Cylinder

2 - Cam

3 - Inlet valve

4 - Supply ball valve

5 - Piston

6 - Pump shaft

7 - Inlet - low pressure (from the fuel filter)

8 - Supply - high pressure (to the single fuel manifold)

9 - Supply - low pressure (to the fuel return manifold)

1.9 JTD 8v

Structure

It is fitted on the pressure pump and is operated by the injection control unit and regulates the fuel supply pressure to the injectors.

The pressure regulator basically consists of:

• a spherical shutter (1);
• a pin (2) controlling valve (3);
• a pre-loading spring (4);
• a coil (5).

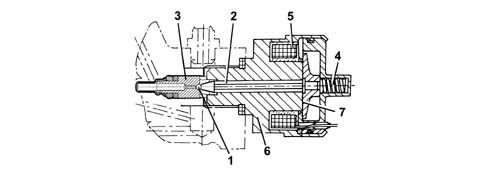

1 - Spherical shutter

2 - Pin

3 - Valve

4 - Pre-loading spring

5 - Coil

6 - Casing

7 - Keeper

1.9 JTD 16v

Structure

It is fitted on the pressure pump and is operated by the injection control unit and regulates the fuel supply pressure to the injectors.

The pressure regulator basically consists of:

• a spherical shutter (1);
• a pin (2) controlling valve (3);
• a pre-loading spring (4);
• a coil (5).

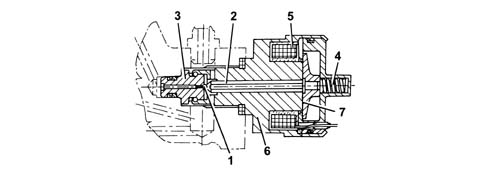

1 - Spherical shutter

2 - Pin

3 - Valve

4 - Pre-loading spring

5 - Coil

6 - Casing

7 - Keeper
