Flow meter - r r

Operation 1060G10 · Pressure pump electric control

1.9 JTD 8v

Removing

- 7055B54 under-engine guard - r r

- 1048A50 air inlet pipe to turbo charger - r + r

1. Unscrew the bolts securing the air flow meter.

2. Disconnect the electrical connection from the air flow meter.

3. Remove the air flow meter.

1.9 JTD 16v

Removing

- 7055B54 under-engine guard - r r

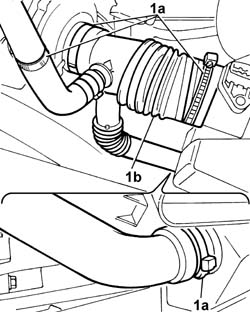

1. Undo collar (1a) and remove the air pipe from filter to turbocharger (1b).

1.9 JTD 8v

Refitting

Fit the air flow meter, tighten the bolts to the filter and connect the electrical connection.

- 1048A50 air inlet pipe to turbo charger - r + r

- 7055B54 under-engine guard - r r

1.9 JTD 16v

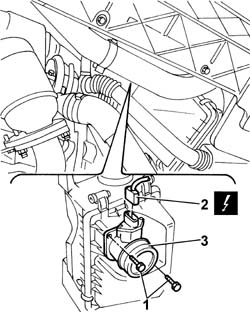

1. Unscrew the bolts securing the air flow meter.

2. Disconnect the electrical connection from the air flow meter.

3. Remove the air flow meter.

Refitting

Fit the air flow meter, tighten the bolts to the filter and connect the electrical connection.

Fit the air pipe from filter to turbocharger and secure to the filter and turbocharger using the bands.

- 7055B54 under-engine guard - r r
