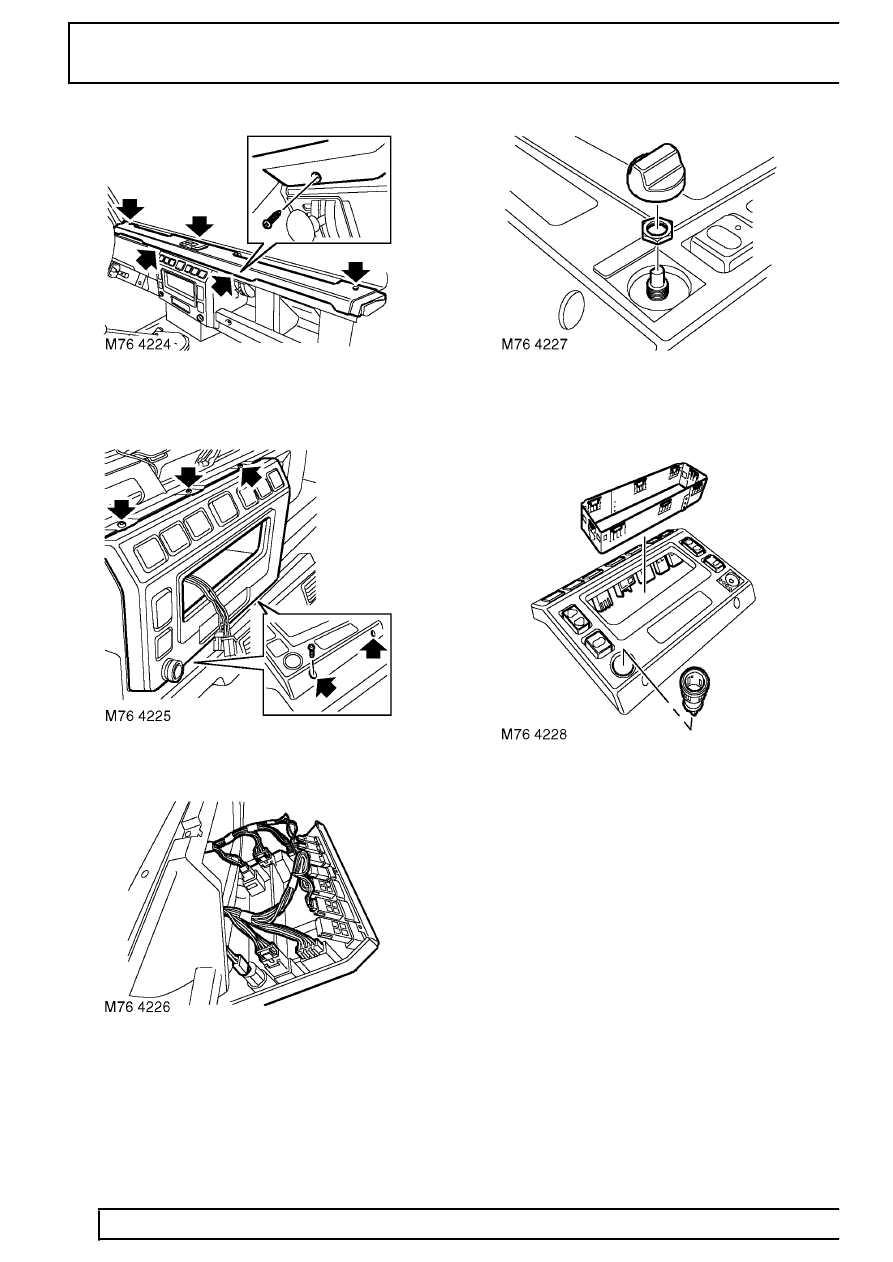

11. Remove 5 screws securing crash pad and
remove pad.
12. Remove 5 screws and release fascia console.
13. Disconnect Lucar connection and multiplug from
cigar lighter.
14. Disconnect multiplugs from remaining switches
and remove console.
15. Remove operating knob from light switch.
16. Remove nut securing light switch and remove
switch from console.
17. Release cigar lighter body and remove from
console.
18. Remove switches from console.
19. Release tabs and remove radio mounting
bracket.
Refit
20. Fit radio bracket and secure with tabs.
21. Fit and secure cigar lighter body to console.
22. Fit light switch and secure with nut.
23. Fit operating knob to switch.
24. Fit remaining switches to console.
