TD5 Defender
76
CHASSIS AND BODY
26
REPAIR

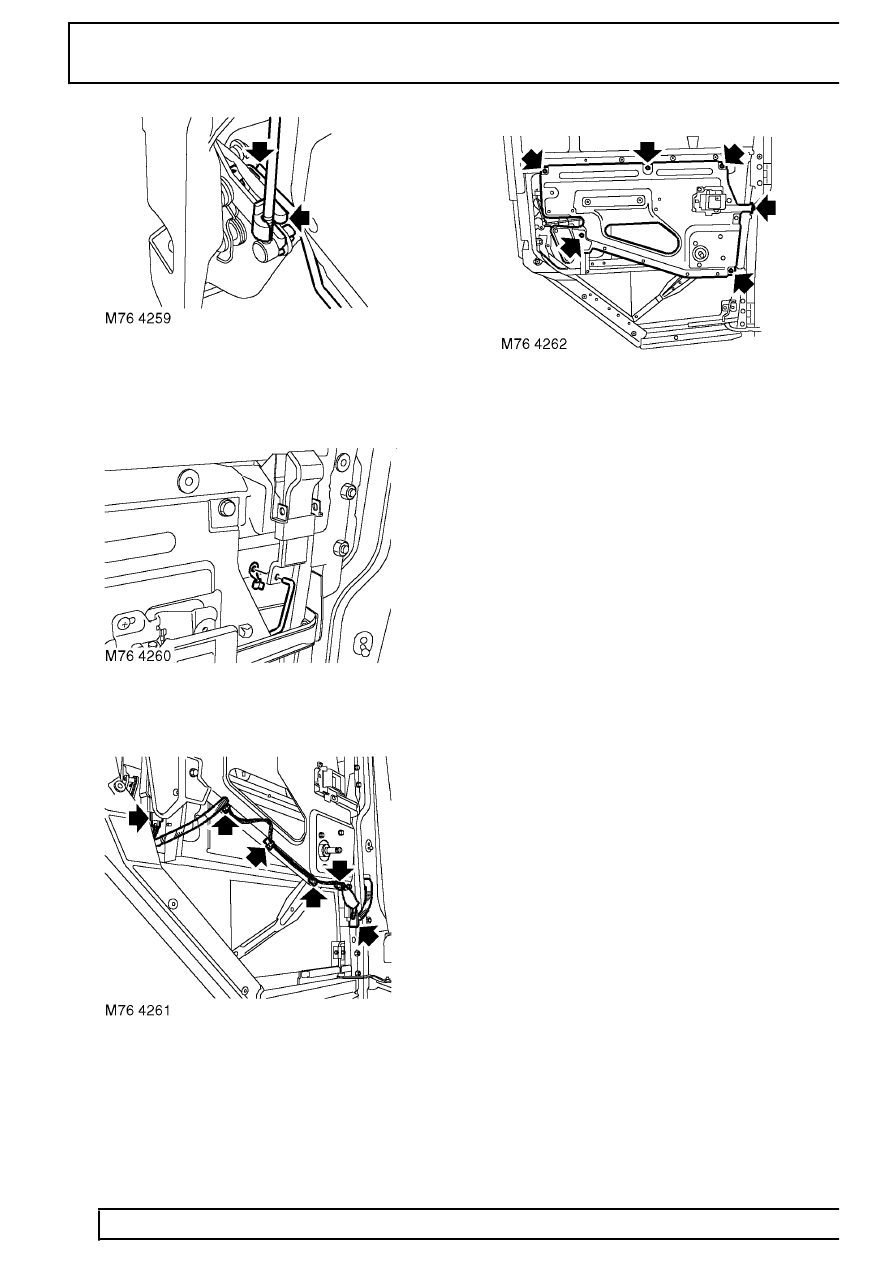

4. Release clip, detach and remove lock solenoid
link.
5. Release clip and disconnect interior handle link
from latch mechanism.
6. Remove clip and disconnect sill button link.
7. Release clips securing harness to panel.
8. Disconnect multiplug from solenoid.
9. Release harness sleeve and withdraw harness
from door.
10. Remove 5 bolts and 1 nut securing panel.
11. Remove panel assembly.
Refit
12. Position door mounting panel assembly, fit bolts
and nut and tighten to 10 Nm (7lbf.ft).
13. Connect multiplug to solenoid.
14. Secure harness clips and sleeve.
15. Connect interior handle link to latch and secure
with clip.
16. Connect link to sill button and fit clip.
17. Fit and secure solenoid link.
18. Remove wedges, lower glass and locate to
regulator. Fit bolts and tighten to 6 Nm (4 lbf.ft).
19. Raise and lower glass to check operation.
20. Fit plastic sheet. See this Section.
