Cooling fansCooling fans – fault diagnosis

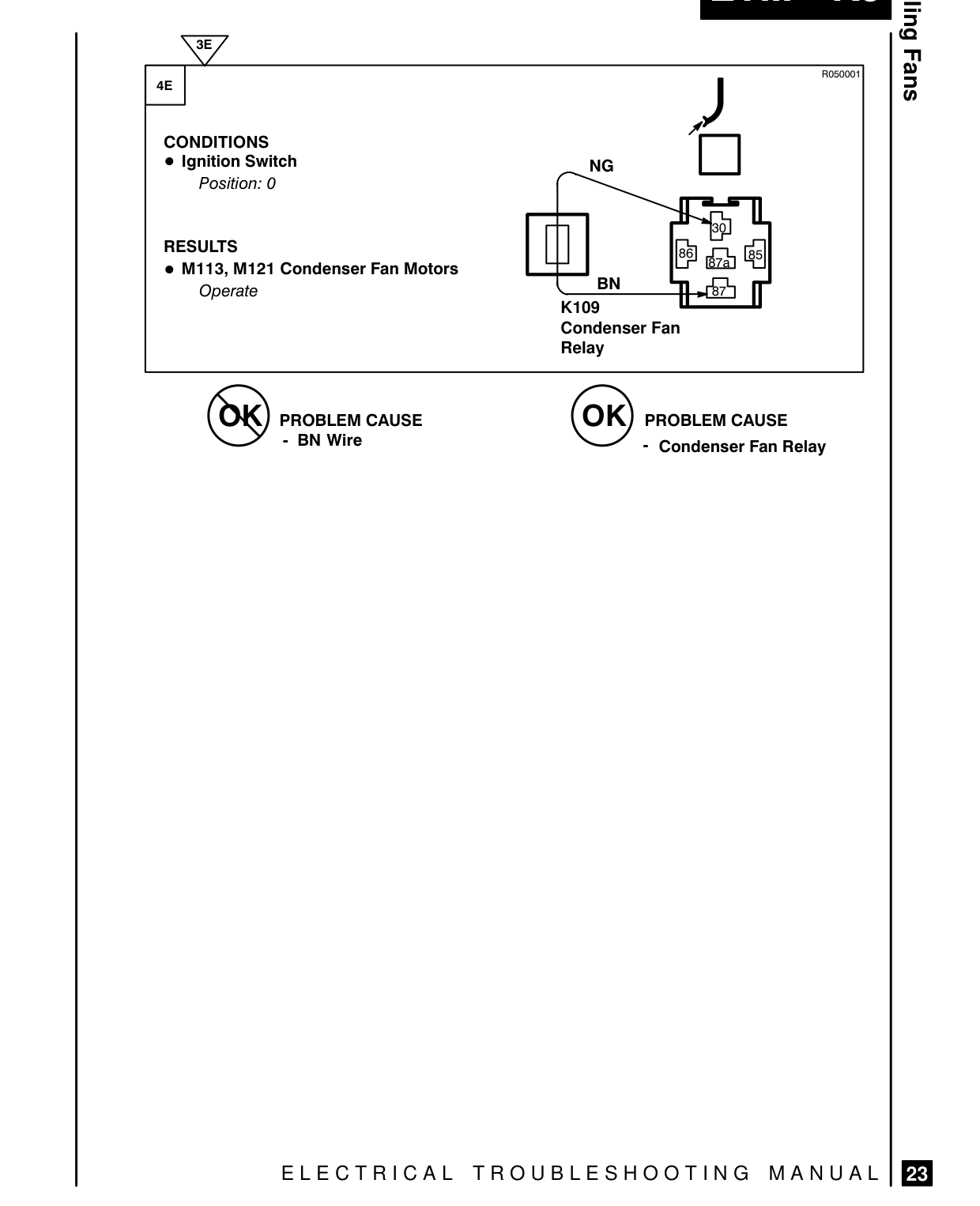

COOLING FANS – FAULT DIAGNOSIS
CONDITIONS ® Ignition Switch Position: 0
RESULTS e M113, M121 Condenser Fan Motors Operate
(59) PROBLEM CAUSE - BN Wire
ELECTRICAL TROUBLESHOOTING MANUAL | EH
Tl R050001
NG
[s81 pe za] ie) [87] K109 Condenser Fan Relay
PROBLEM CAUSE - Condenser Fan Relay
