COOLING FANS – FAULT DIAGNOSIS

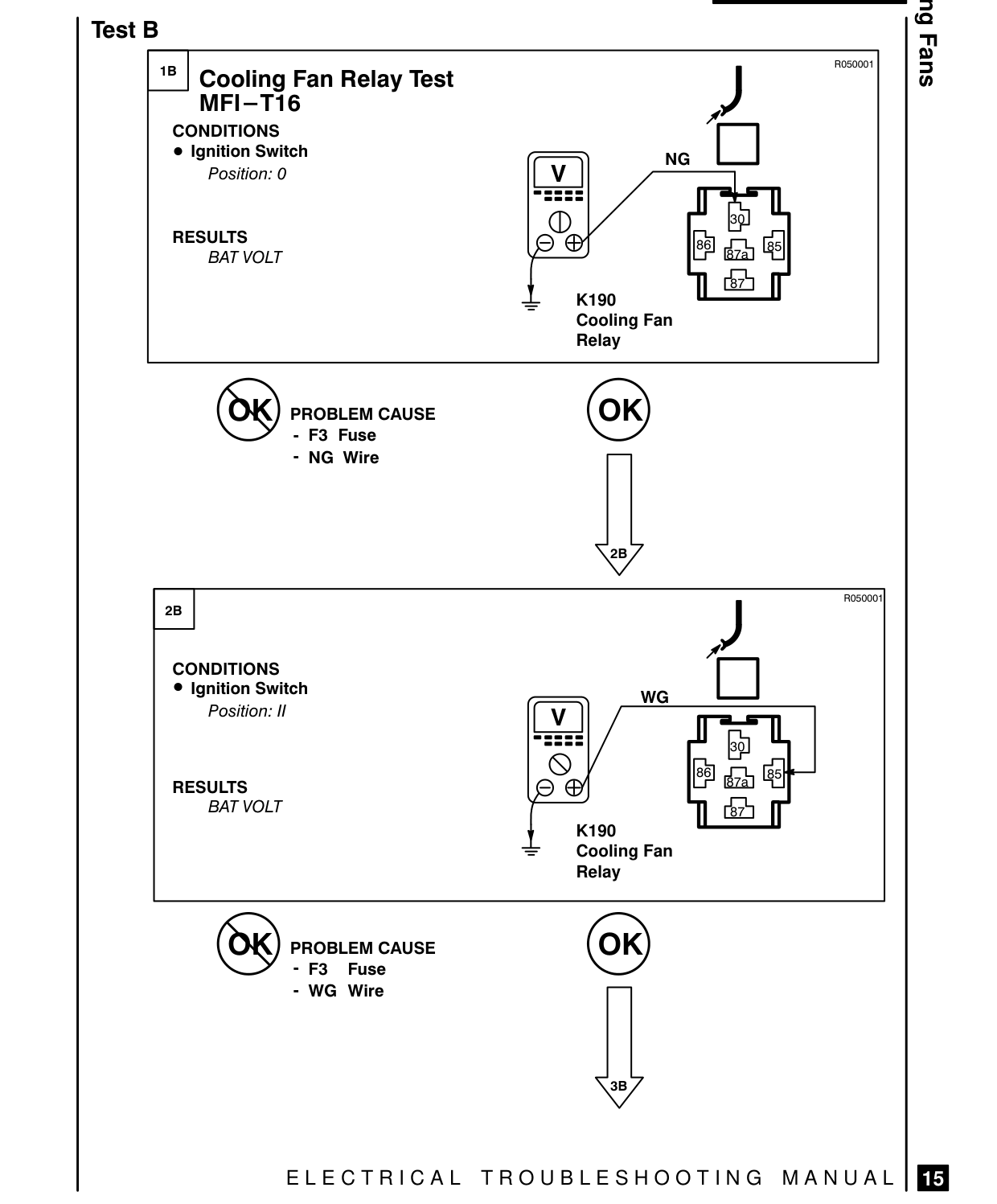

Test B EH Cooling Fan Relay Test MFI-T16 CONDITIONS e Ignition Switch Position: 0

RESULTS BAT VOLT

(59) PROBLEM CAUSE - F3 Fuse

- NG Wire

2s | ® Ignition Switch CONDITIONS

Position: II

RESULTS BAT VOLT

(59) PROBLEM CAUSE - F3 Fuse - WG Wire

ELECTRICAL TROUBLESHOOTING MANUAL | [8B

mn R050001 Jr

NG

DD of Gs) Ezal

K190 Cooling Fan Relay

R050001 WG

[ ef O 6 BFmyd

K190 Cooling Fan Relay

30 Engine
