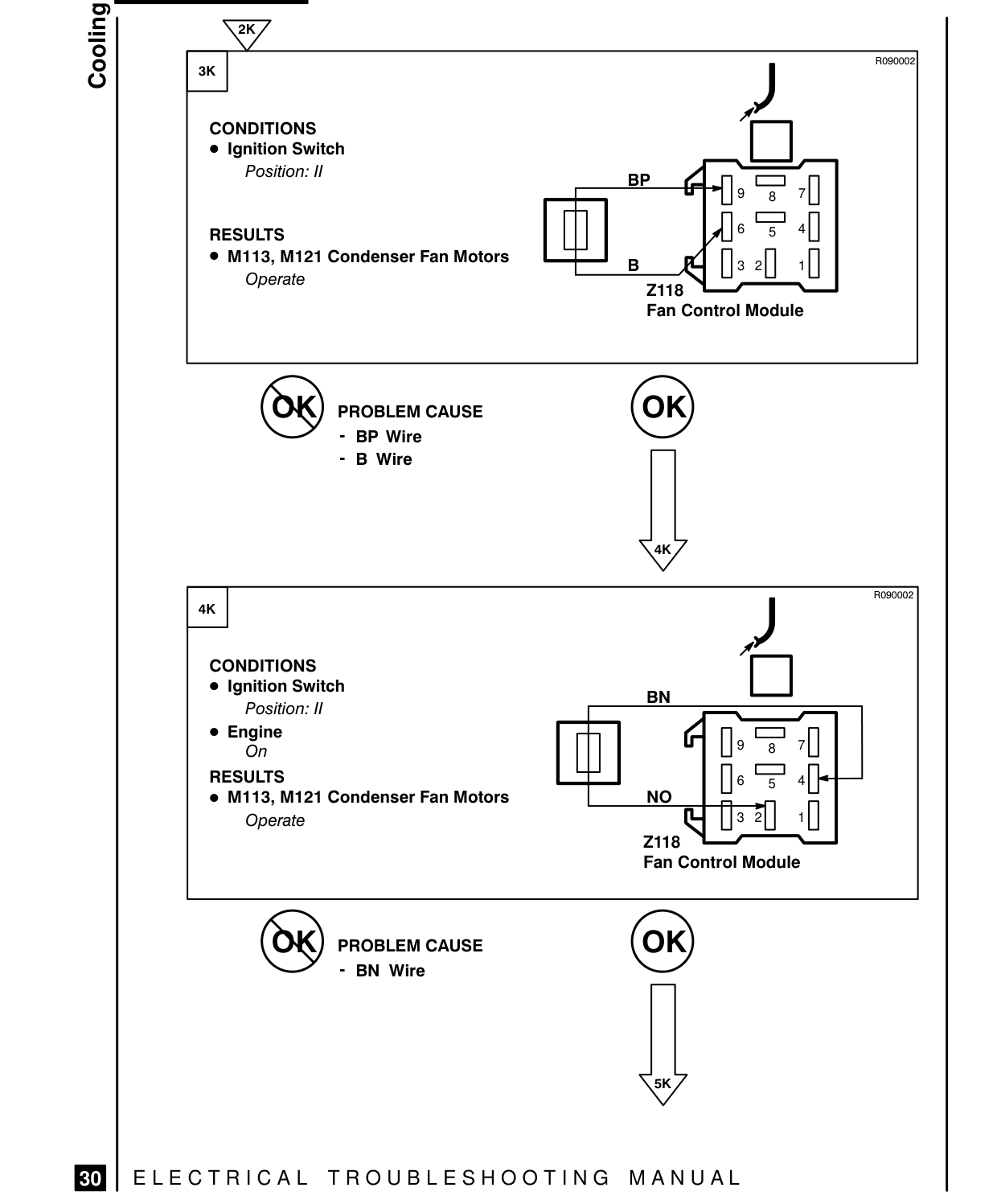

COOLING FANS – FAULT DIAGNOSIS

cS

ax |

CONDITIONS ® |gnition Switch Position: Il RESULTS e M113, M121 Condenser Fan Motors Operate

(59) PROBLEM CAUSE - BP Wire

- B Wire

ax | CONDITIONS ° Ignition Switch Position: Il e Engine

RESULTS e M113, M121 Condenser Fan Motors Operate

(59) PROBLEM CAUSE - BN Wire

EJ | ELECTRICAL TROUBLESHOOTING MANUAL

R090002

BP Js = 4] a IE 2] 7118 Fan Control Module

R090002

BN

[s = a] N IE al Z118 Fan Control Module

30 Engine
