COOLING FANS – FAULT DIAGNOSIS

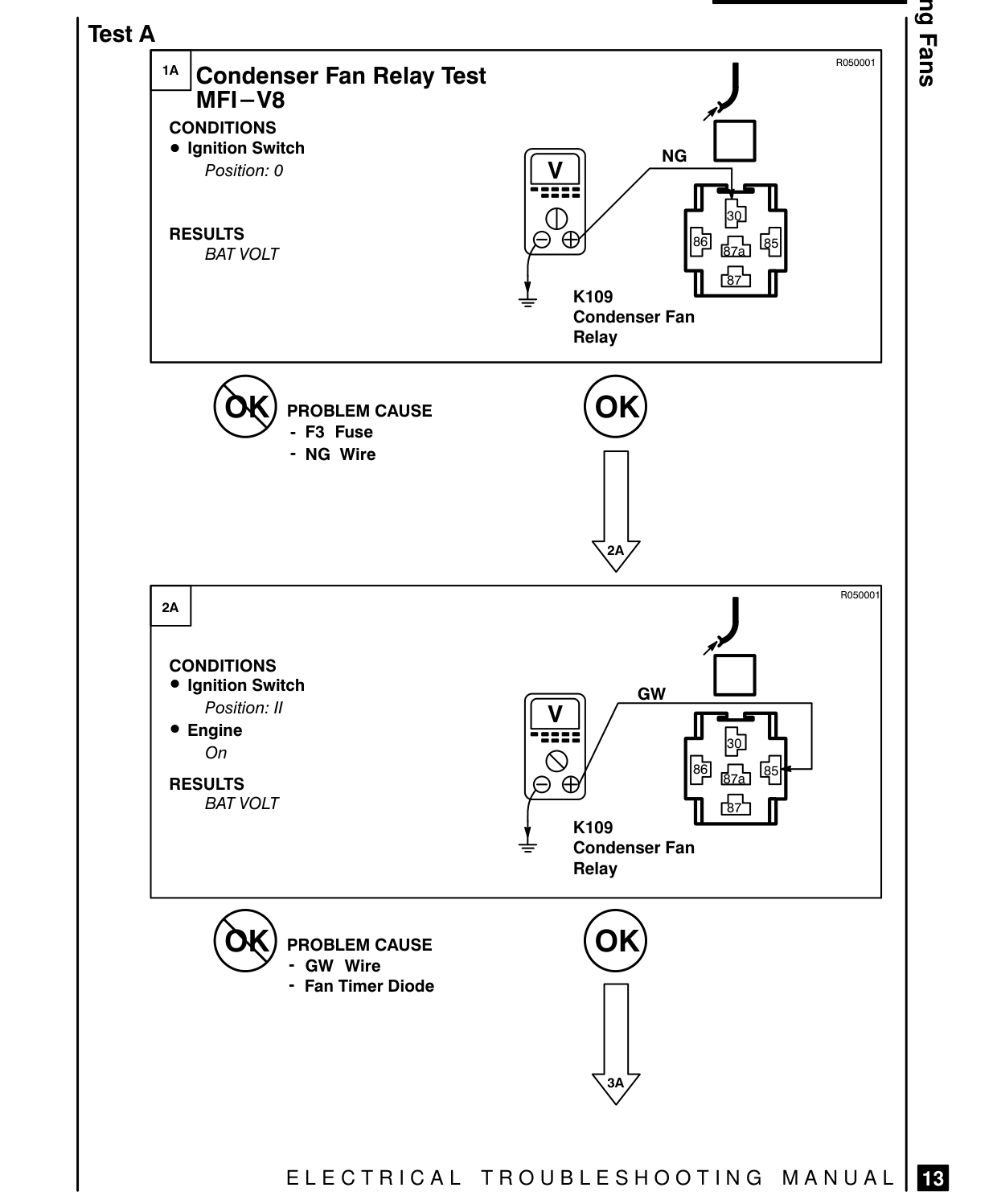

Test A EB Condenser Fan Relay Test MFI-V8 CONDITIONS e Ignition Switch Position: 0

RESULTS BAT VOLT

(59) PROBLEM CAUSE - F3 Fuse

- NG Wire

® Ignition Switch CONDITIONS

Position: II ® Engine On RESULTS BAT VOLT

(5) PROBLEM CAUSE - GW Wire Fan Timer Diode

ELECTRICAL TROUBLESHOOTING MANUAL | [iH

R050001

NG

Hh [s1 PO © 8) zh Gl K109 | fe Condenser Fan Relay

R050001 GW | bl xX [8 dy K109 Condenser Fan Relay

30 Engine
