Cooling fansCooling fans – fault diagnosis
COOLING FANS – FAULT DIAGNOSIS

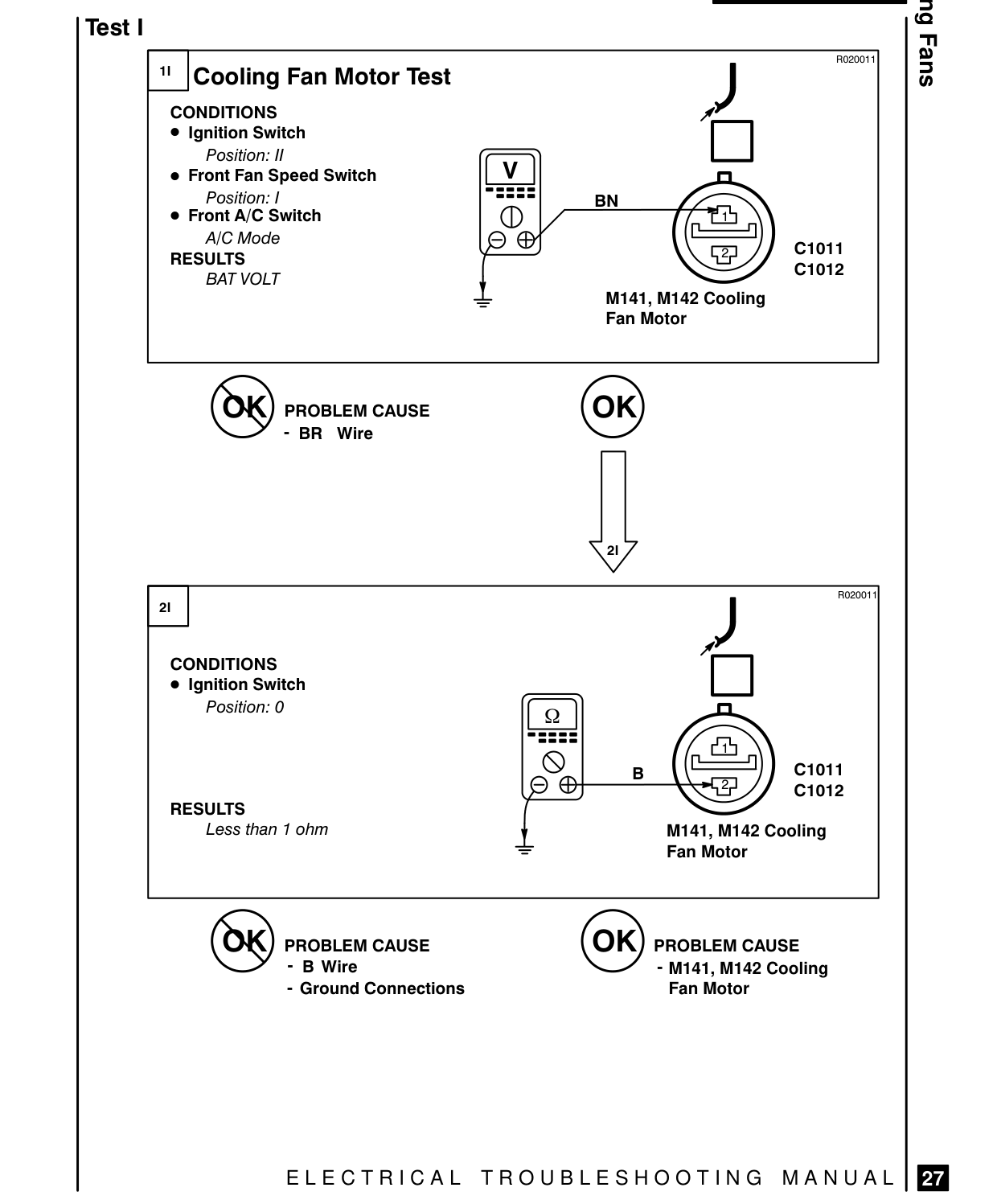

Test | Cooling Fan Motor Test CONDITIONS ® Ignition Switch Position: II e Front Fan Speed Switch Position: | e Front A/C Switch A/C Mode RESULTS BAT VOLT
(59) PROBLEM CAUSE - BR Wire
on | CONDITIONS ® Ignition Switch Position: 0
RESULTS Less than 1 ohm
(59) PROBLEM CAUSE - B Wire - Ground Connections
ELECTRICAL
R020011
T===s BN aD F149 OD C1011 hz] C1012
M141, M142 Cooling Fan Motor
R020011
FH C1011 OD C1012 M141, M142 Cooling Fan Motor
PROBLEM CAUSE - M141, M142 Cooling Fan Motor
TROUBLESHOOTING MANUAL
