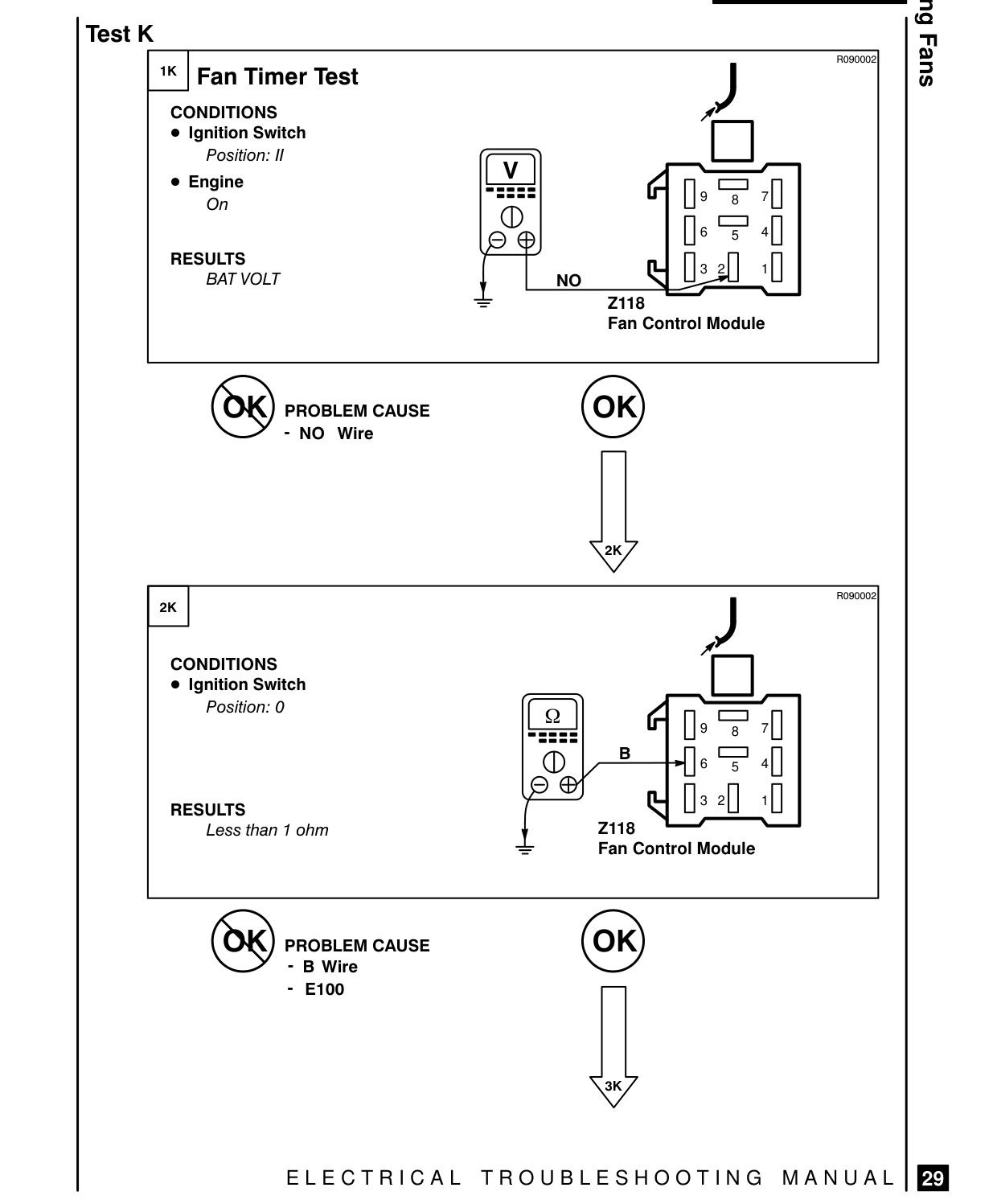

COOLING FANS – FAULT DIAGNOSIS

Test K «| Fan Timer Test CONDITIONS ® Ignition Switch Position: Il

® Engine On

RESULTS BAT VOLT

(59) PROBLEM CAUSE - NO Wire

ox |

® Ignition Switch CONDITIONS

Position: 0

RESULTS Less than 1 ohm

(59) PROBLEM CAUSE - B Wire

- E100

ELECTRICAL TROUBLESHOOTING MANUAL | EE]

R090002

A IE — 7] oO Je = 4] PD NO N Js Al Z118 Fan Control Module

R090002

SD Je = il N Js 2[] Z118 Fan Control Module

30 Engine
