Cooling fans – fault diagnosis

COOLING FANS – FAULT DIAGNOSIS

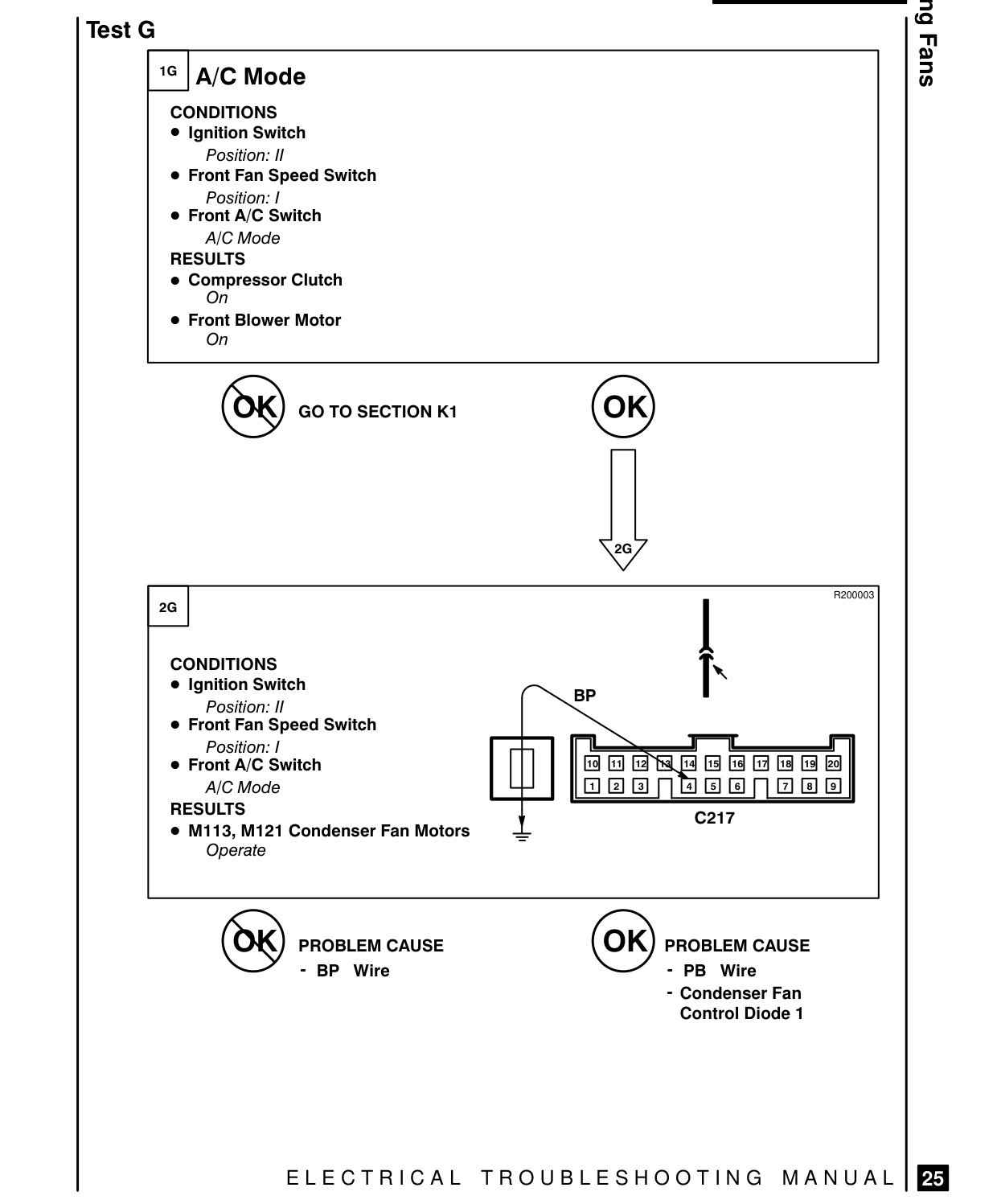

Test G B A/C Mode CONDITIONS ® Ignition Switch Position: I ® Front Fan Speed Switch Position: | e Front A/C Switch A/C Mode RESULTS eo Compressor Clutch On

eo Front Blower Motor On

(59) GO TO SECTION K1

CONDITIONS ® Ignition Switch Position: I e Front Fan Speed Switch Position: | e Front A/C Switch A/C Mode RESULTS eo M113, M121 Condenser Fan Motors Operate

(59) PROBLEM CAUSE - BP Wire

ELECTRICAL TROUBLESHOOTING MANUAL | EJ

R200003 AN BP

HE ENEE ER HEE Ek [] [21 [1 [1] [a] [=] [e] [1] [2] [ed [ed C217

PROBLEM CAUSE - PB Wire

- Condenser Fan Control Diode 1
