Cooling fansCooling fans – fault diagnosis

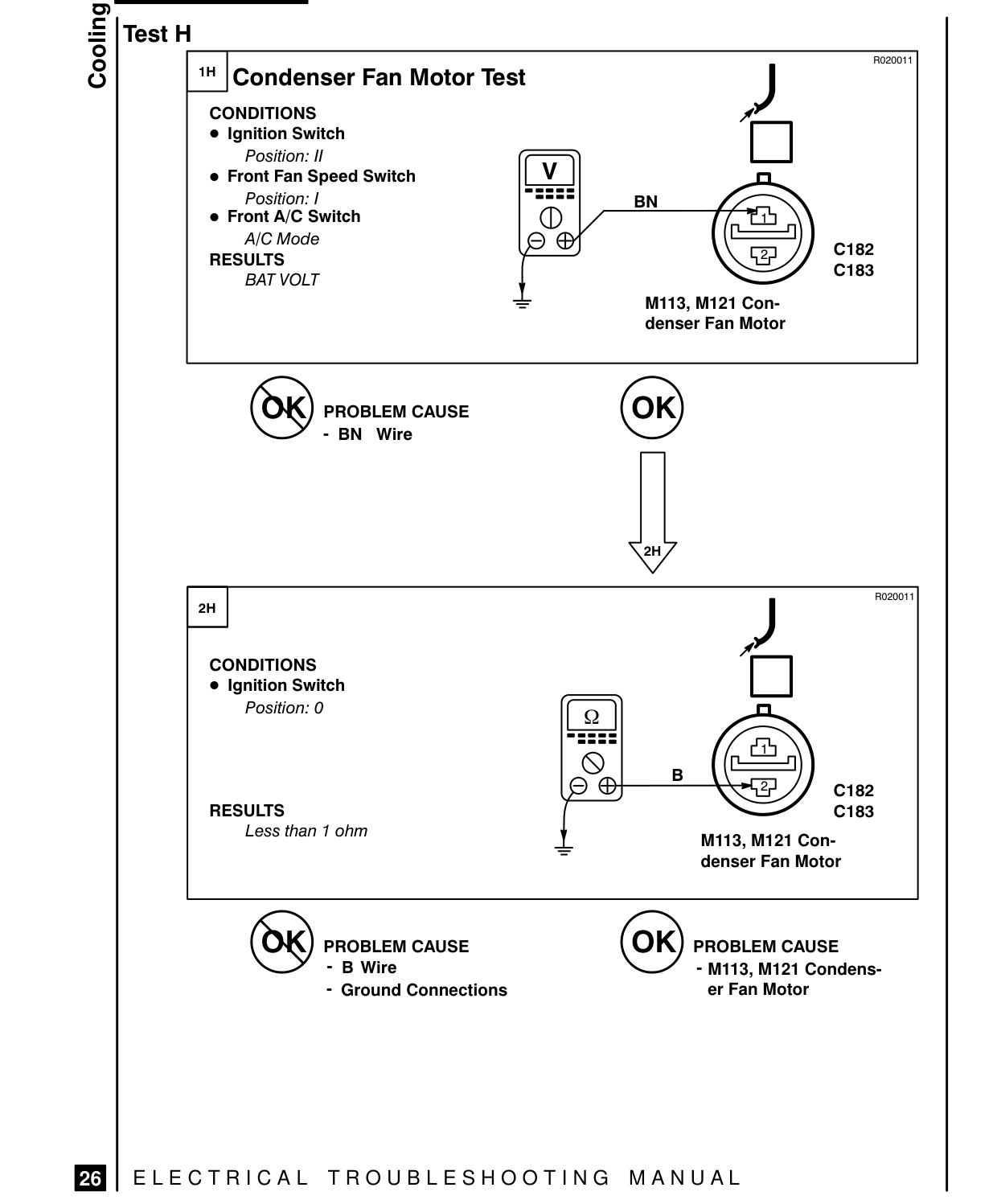

COOLING FANS – FAULT DIAGNOSIS
ce |Test H
Oo H | Condenser Fan Motor Test CONDITIONS ® |[gnition Switch Position: Il ® Front Fan Speed Switch Position: | e Front A/C Switch AJC Mode RESULTS BAT VOLT
(59) PROBLEM CAUSE - BN Wire
B28 CONDITIONS ® Ignition Switch Position: 0
RESULTS Less than 1 ohm
(59) PROBLEM CAUSE - B Wire - Ground Connections
EJ | ELECTRICAL TROUBLESHOOTING MANUAL
R020011
Sa=== BN aD 15 C182 02] C183
M113, M121 Condenser Fan Motor
R020011
111 01
C182 C183
M113, M121 Condenser Fan Motor
PROBLEM CAUSE - M113, M121 Condenser Fan Motor
