Land Rover Discovery II (UK)46 · Air conditioning
46 · Heating & A/C

Evaporator - rear

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Evaporator - rear
Air conditioningEvaporator - rear

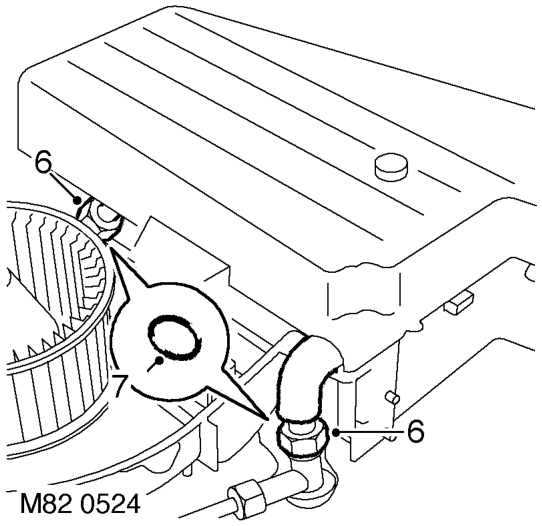

Diagram
  1. Loosen TXV pipe unions, release pipes and remove TXV.
  2. Remove and discard 'O' rings.

Refit

  1. Lubricate new 'O' rings with clean refrigerant oil and fit to TXV pipes.
  2. Position TXV, align pipes and tighten unions.
  3. Connect sensor and secure with clip.
  4. Fit insulation to TXV valve and sensor.
  5. Position seat support bracket, fit bolts and tighten to 24 Nm (18 lbf.ft)
  6. Repressurise air conditioning system. AIR CONDITIONING, REFRIGERANT RECOVERY, RECYCLING AND RECHARGING, Refrigerant recovery, recycling and recharging.
  7. Fit rear lower trim casing . INTERIOR TRIM COMPONENTS, REPAIRS, Trim casing - side - loadspace.

Evaporator - rear

$% 82.26.20

Remove

  1. Remove evaporator assembly. AIR CONDITIONING, REPAIRS, Evaporator and motor assembly - rear.

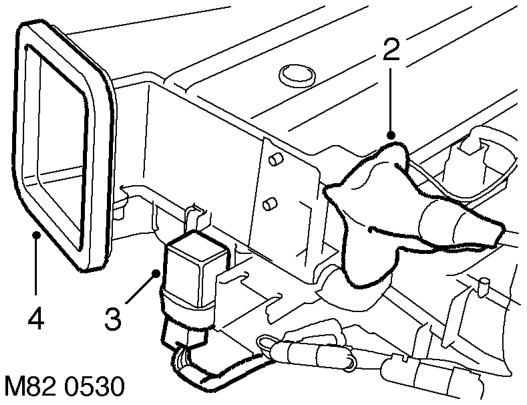

Evaporator - rear – Remove evaporator assembly.  AIR CONDITIONING, REPAIRS, Evaporator and motor assembly - r
  1. Remove insulation from TXV.
  2. Release relay from support bracket.
  3. Remove ducting seal.

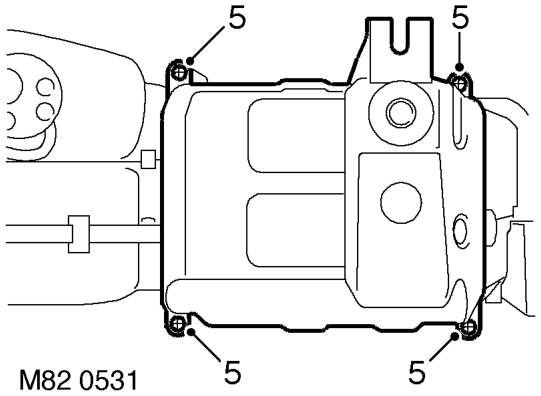

Evaporator - rear – Remove ducting seal.
  1. Remove 4 screws securing lower part of casing, release and remove lower casing.
