Air conditioningSensor - air temperature

Sensor - air temperature

$% 82.20.93

Remove

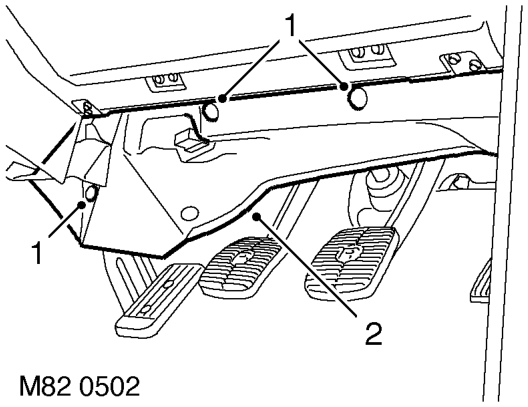

Sensor - air temperature – $% 82.20.93
  1. Release 2 quarter turn screws to release fascia access panel.
  2. Lower fascia access panel.

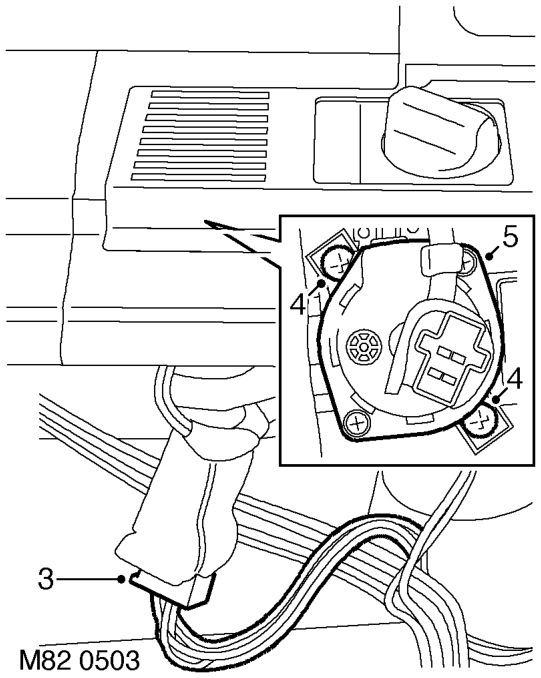

Sensor - air temperature – Lower fascia access panel.
  1. Disconnect multiplug from air temperature sensor.
  2. Remove 2 screws securing air temperature sensor to fascia.
  3. Remove air temperature sensor from fascia.

Refit

  1. Position air temperature sensor to fascia and secure with screws.
  2. Connect multiplug to air temperature
  3. Position and secure fascia access panel with quarter turn screws.
