Switch - central door locking

_REPAIR

Switch - central door locking

$% 86.26.30

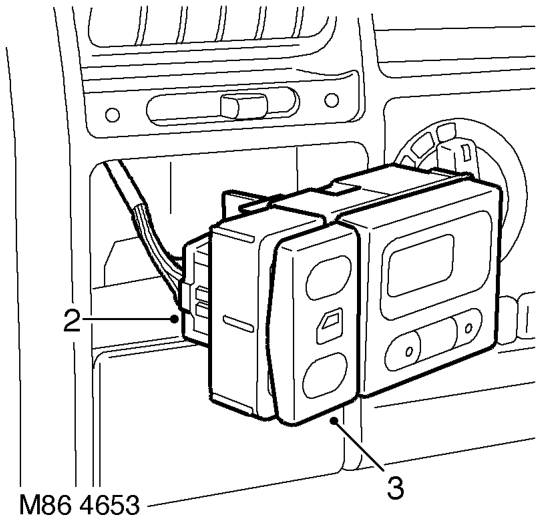

Remove

1. Carefully remove clock assembly from louvre panel.
2. Disconnect multiplug from door lock switch.
3. Remove door lock switch from clock.

Refit

1. Fit door lock switch to clock assembly.
2. Connect multiplug to door lock switch.
3. Position clock assembly and push to secure in position.

Switches - horn

$% 86.30.01

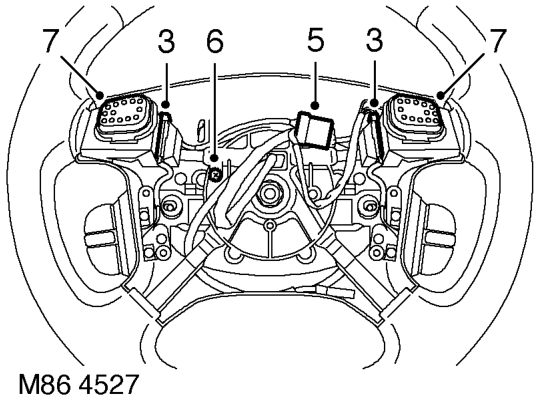

Remove

WARNING: It is imperative that before any work is undertaken on the SRS system the appropriate information is read thoroughly.

1. Disconnect both battery leads, negative lead first, and wait 10 minutes.
2. Remove driver's airbag module. RESTRAINT SYSTEMS, REPAIRS, Airbag module - drivers.

3. Release horn switch multiplugs and leads from steering wheel base.
4. Disconnect horn switch multiplugs from harness.
5. Disconnect horn switch multiplug from rotary coupler harness.
6. Remove screw securing earth leads to steering wheel.
7. Using a broad round edged tool, carefully prise horn switches from steering wheel.

Refit

1. Fit to steering wheel and connect multiplugs.
2. Fit earth leads and secure with screw.
3. Secure leads and multiplugs to base of steering wheel.
4. Fit driver's airbag module. RESTRAINT SYSTEMS, REPAIRS, Airbag module - drivers.
