Clutch - V8Clutch assembly

REPAIRS

Clutch assembly

$% 33.10.01

Remove

  1. Remove gearbox assembly. MANUAL GEARBOX - R380, REPAIRS, Gearbox - V8.
  2. Restrain flywheel.

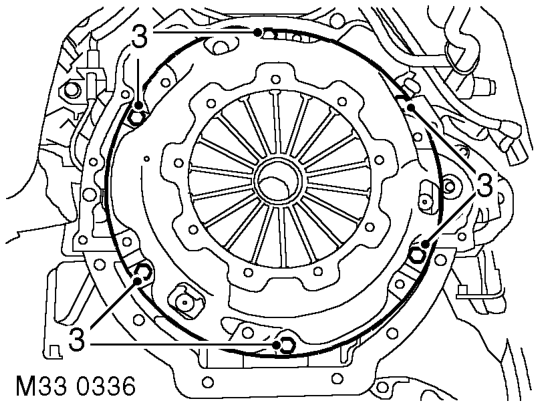

Clutch assembly – Restrain flywheel.
  1. Working in diagonal sequence, progressively loosen 6 bolts securing clutch cover to flywheel. Remove bolts.
  2. Remove clutch cover.
  3. Remove clutch plate.
  4. Renew all worn or damaged components.

Refit

  1. Clean clutch cover and flywheel mating faces and spigot bush in end of crankshaft.
  2. Fit LRT-12-001 to spigot bearing in crankshaft.
  3. Fit clutch plate onto LRT-12-001, ensure side marked 'flywheel side' is against flywheel.
  4. Fit clutch cover and locate on dowels.

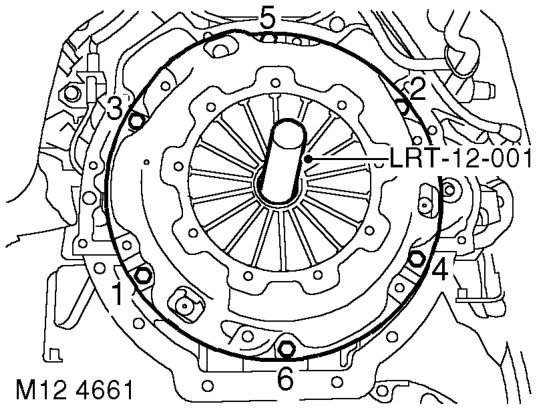

Clutch assembly – Fit clutch cover and locate on dowels.
  1. Fit clutch cover bolts and progressively tighten, in diagonal sequence shown, to 40 Nm. (30 lbf.ft).
  2. Fit gearbox assembly. MANUAL GEARBOX - R380, REPAIRS, Gearbox - V8.
