Master cylinder

Master cylinder

$% 33.20.01

CAUTION: Brake fluid will damage paint finished Refit

surfaces. If spilled, immediately remove fluid and clean area with water.

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

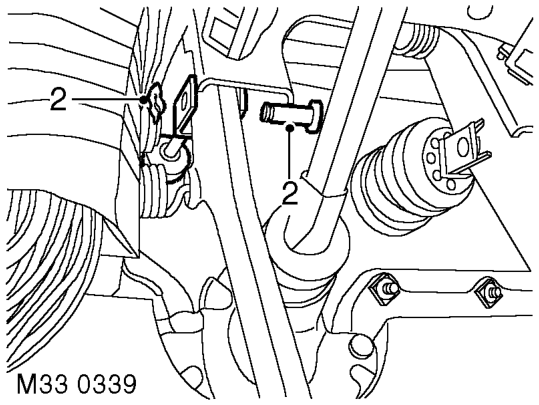

2. Release spring clip securing clutch pedal clevis pin and remove pin from push rod and clutch pedal.

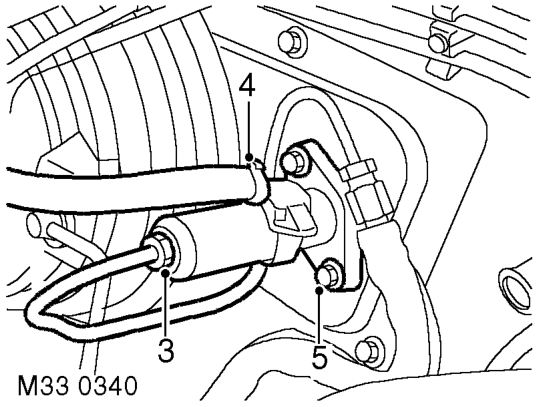

3. Position container to catch spillage. Disconnect hydraulic pipe from clutch master cylinder.

CAUTION: Always fit plugs to open connections to prevent contamination.

4. Release clip and remove connecting hose from clutch master cylinder.
5. Remove 2 bolts securing clutch master cylinder to pedal box and remove clutch master cylinder.
1. Clean master cylinder and pedal box mating faces.
2. Position clutch master cylinder to pedal box, fit bolts and tighten to 25 Nm (18 lbf.ft).
3. Position clevis pin to push-rod and clutch pedal and secure with spring clip.
4. Fit connecting hose to brake master cylinder and tighten clip.
5. Position hydraulic pipe and tighten union to 18 Nm (13 lbf.ft).
6. Bleed clutch. CLUTCH - V8, ADJUSTMENTS, Clutch hydraulic system - bleed.
7. Remove stand(s) and lower vehicle.
