Driving aidsPDC ECU Connector Pin Details
On vehicles without rear air conditioning, the bracket is located inboard on the LH 'E' post, adjacent to the luggage compartment trim panel. On vehicles with rear air conditioning, the bracket is located outboard on the LH 'E' post, adjacent to the outer body panel.
The bracket has integral studs which provide for the attachment of the ECU with nuts. The ECU is located with the harness connectors uppermost to assist access. The PDC sounder is located on the opposite side of the bracket and is secured with screws, lockwashers and nuts.

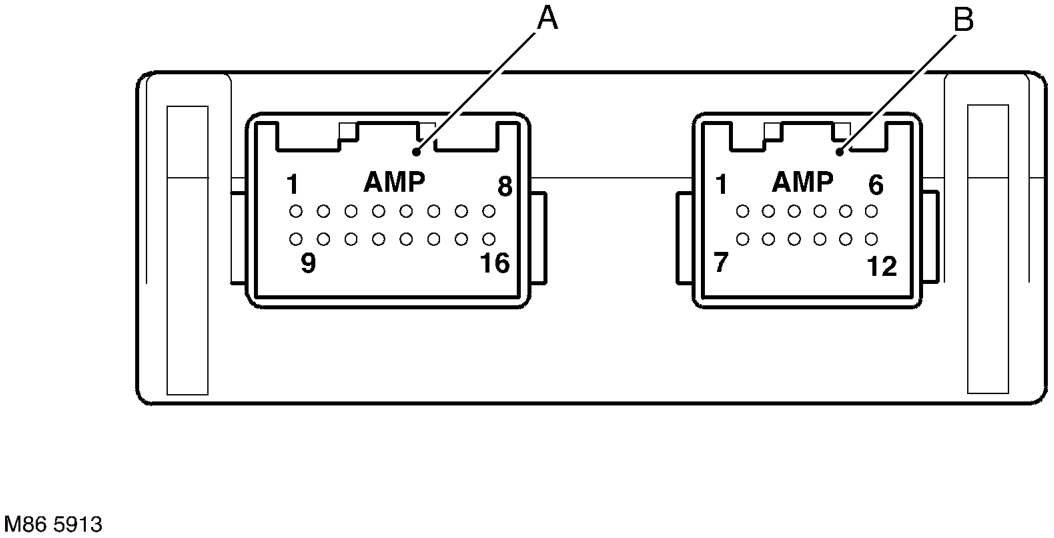

PDC ECU Connector Pin Details
a Connector C0958 b Connector C0957
Connector C0958
| Pin No. | Description | Input/Output |
|---|---|---|
| 1 | Ignition switch power supply | Input |
| 2 | Sounder - Negative | Input |
| 3 | Not used | – |
| 4 | PDC Switch | Input |
| 5 | Not used | – |
| 6 | Reverse Gear signal | Input |
| 7 | Not used | – |
| 8 | Ground | – |
| 9 | Not used | – |
| 10 | Sounder - Positive 12V supply | Output |
| 11 | Not used | – |
| 12 | Not used | – |
| 13 | PDC Switch LED | Output |
| 14 to 16 | Not used | – |
