Land Rover Discovery II (UK)28 · Front axle
28 · Steering & suspension

Differential - assembly (page 3 of 4)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Front axleDifferential - assembly · page 3 of 4
  1. Fit front brake discs. BRAKES, REPAIRS, Brake disc - front.
  2. Fit front road wheels and tighten nuts to 140 Nm (103 lbf.ft).
  3. Remove stand(s) and lower vehicle.
  4. Fill differential with oil. MAINTENANCE, PROCEDURES, Front and rear axle.

Seal - differential pinion

$% 54.10.20

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

1. Raise front of vehicle.

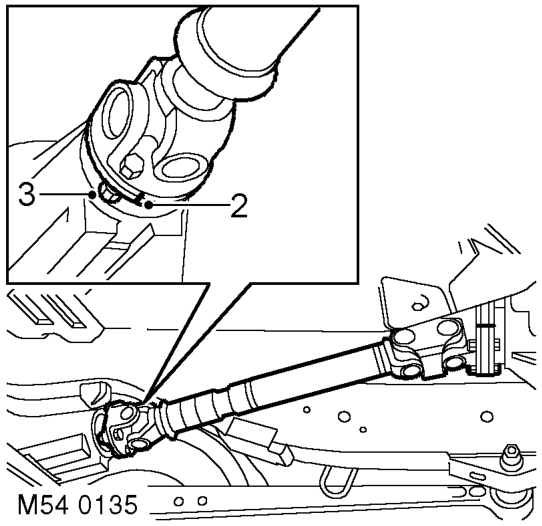

  1. Reference mark front propeller shaft for reassembly.
  2. Remove 4 nuts and bolts securing propeller shaft to differential. Release propeller shaft and tie aside.
Remove 4 nuts and bolts securing propeller shaft to differential. Release propeller shaft

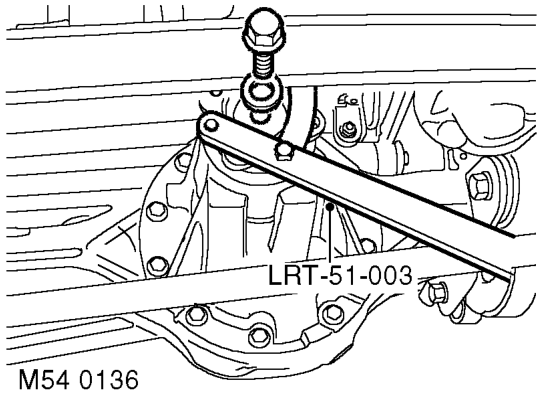

  1. Using LRT-51-003 to restrain pinion flange, remove bolt and washer securing pinion flange. Remove pinion flange.
  2. Position container to catch oil spillage.
