REPAIRS, Carpet - rear. (page 2 of 2)

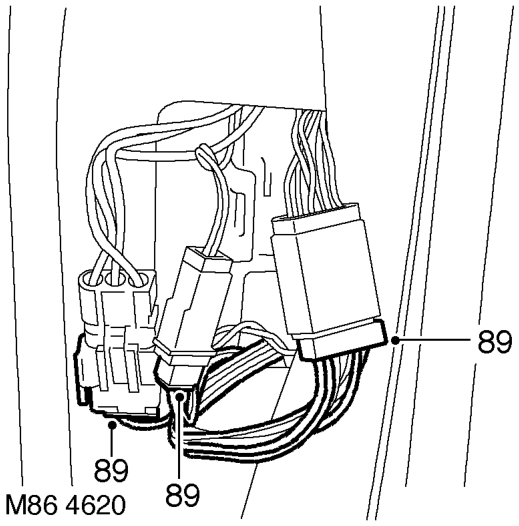

89. Disconnect 3 multiplugs from RH rear door harness.

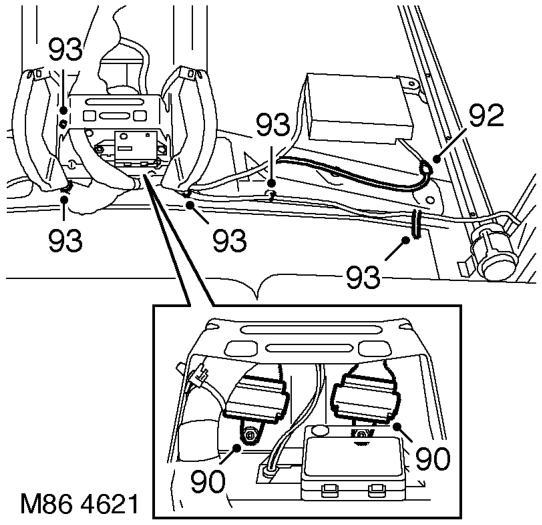

90. Remove 2 nuts securing 2 earth headers to rear centre console tunnel.
91. Remove earth headers from centre console.
92. Disconnect multiplug from CD player.
93. Remove 5 clips and 2 retainers securing harness to floor.

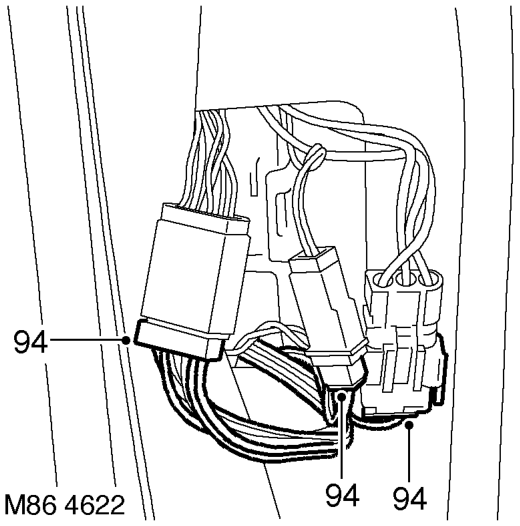

94. Disconnect 3 multiplugs from LH rear door harness.
95. Withdraw harness to interior.
96. Manoeuvre harness over steering column support bracket.
97. With assistance remove main harness.

Refit

1. With assistance position main harness to body and manoeuvre over steering column support bracket.
2. Lay harness in position and secure to floor clips and retainers.
3. Connect LH and RH rear door multiplugs.
4. Connect CD player multiplug.
5. Position centre console earth headers and secure with nuts.
6. Fit rear carpet. INTERIOR TRIM COMPONENTS, REPAIRS, Carpet - rear.
7. Connect DCU multiplug.
8. Connect Lucar to handbrake switch.
9. Fit and tighten nuts securing harness to transmission tunnel.
10. Secure harness to pedal box.
11. Position footwell earth header and secure with nut.
12. Feed RH side of harness into engine bay.
13. Position carpet.
14. Connect wiper motor multiplug, position mechanism and secure with nuts and bolts.
15. Connect ECM multiplug.
16. Position RH lower 'A' post earth header and secure with nut, connect cruise control multiplug.
17. Connect RH front door and RH side body harness multiplugs.
