REPAIRS, Carpet - rear.
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Repairs › REPAIRS, Carpet - rear.
HarnessesREPAIRS, Carpet - rear. · page 1 of 2

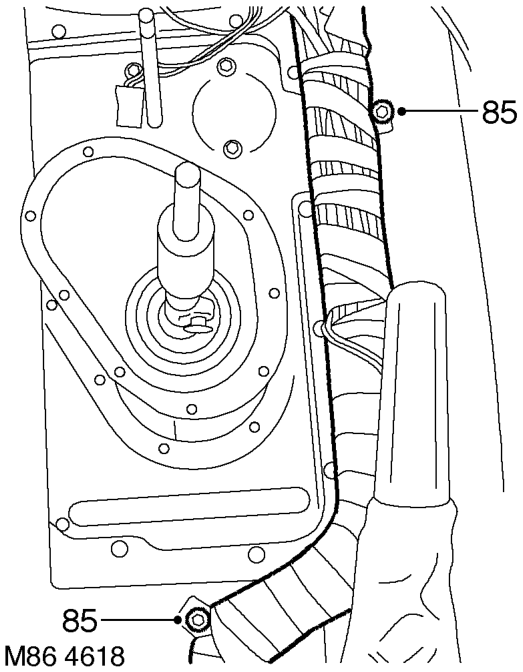

- Remove nut securing earth header to footwell. 85. Remove 2 nuts securing harness to tunnel.
- Remove earth header.

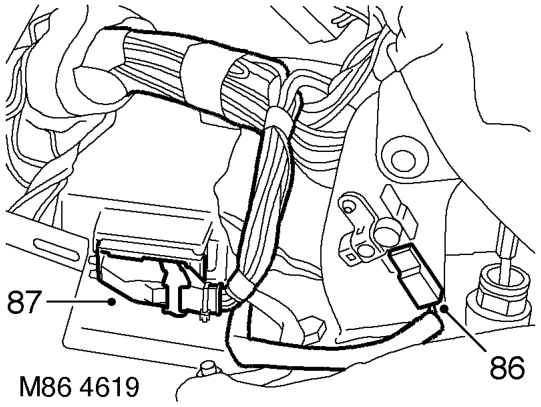

- Disconnect Lucar from handbrake switch.
- Disconnect multiplug from DCU.
- Remove rear carpet.
- Remove clip securing harness to pedal box.
REPAIRS, Carpet - rear.
