Land Rover Discovery II (UK)54 · Harnesses
54 · General

Harness - main (page 10 of 10)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
HarnessesHarness - main · page 10 of 10
Diagram

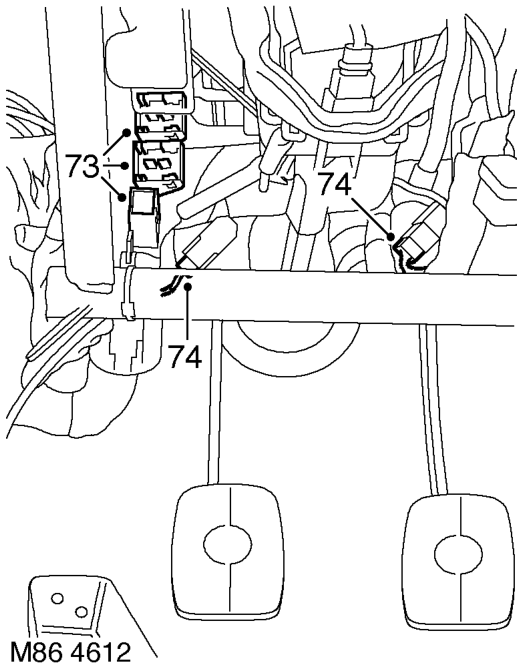

  1. Release 3 multiplugs from steering column support.
  2. Disconnect multiplugs from brake and clutch pedal.
Disconnect multiplugs from brake and clutch pedal.

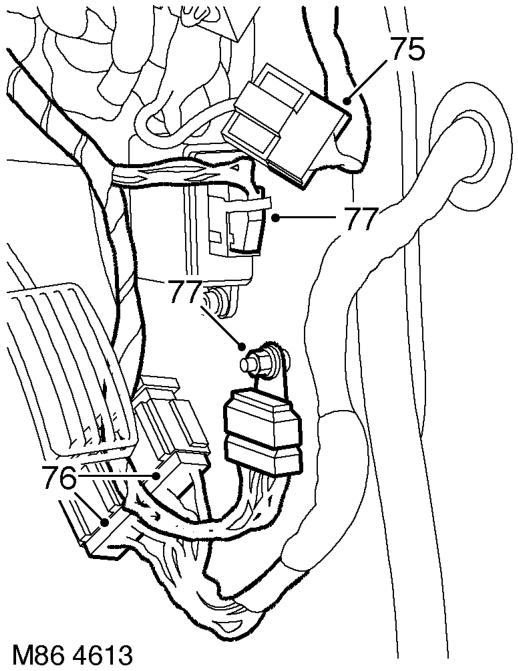

  1. Disconnect multiplug from RH side body harness.
  2. Disconnect 2 multiplugs from RH door harness.
  3. Disconnect multiplugs from cruise control ECU, remove nut securing earth header to body and remove earth header.
Disconnect multiplugs from cruise control ECU, remove nut securing earth header to body an

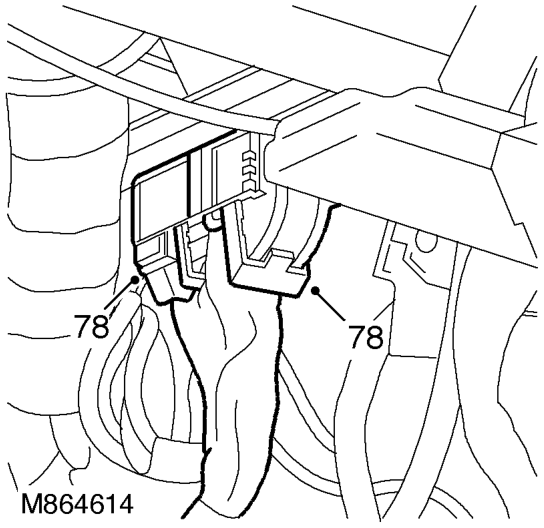

  1. Disconnect 2 multiplugs from ECM.
Disconnect 2 multiplugs from ECM.

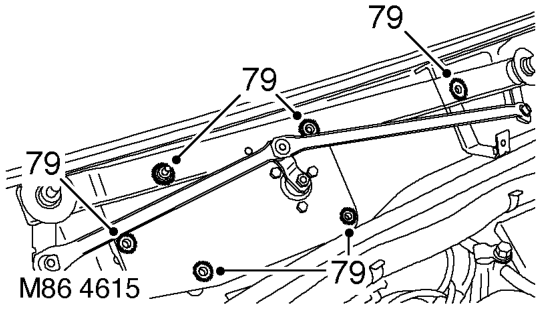

  1. Remove 6 nuts and bolts securing wiper mechanism, release mechanism and disconnect multiplug.
  2. With assistance withdraw RH side harness into interior.
  3. Release RH side front carpet.
