Harness - main (page 9 of 10)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Repairs
HarnessesHarness - main · page 9 of 10

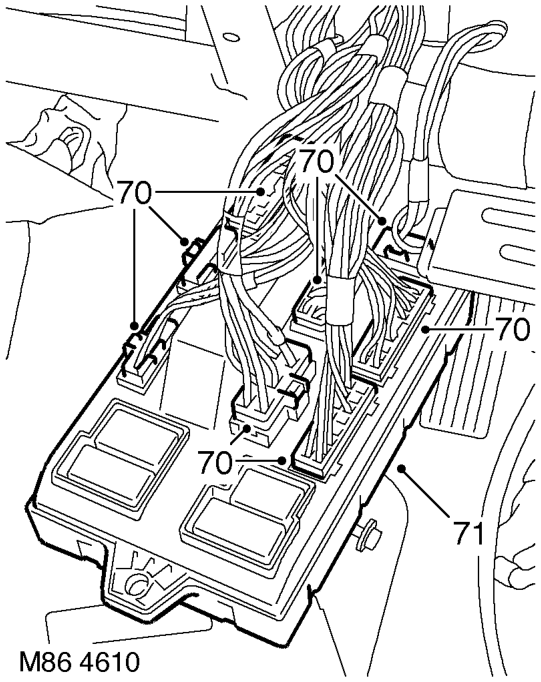

- Release fusebox and disconnect 8 multiplugs.
- Remove fusebox.

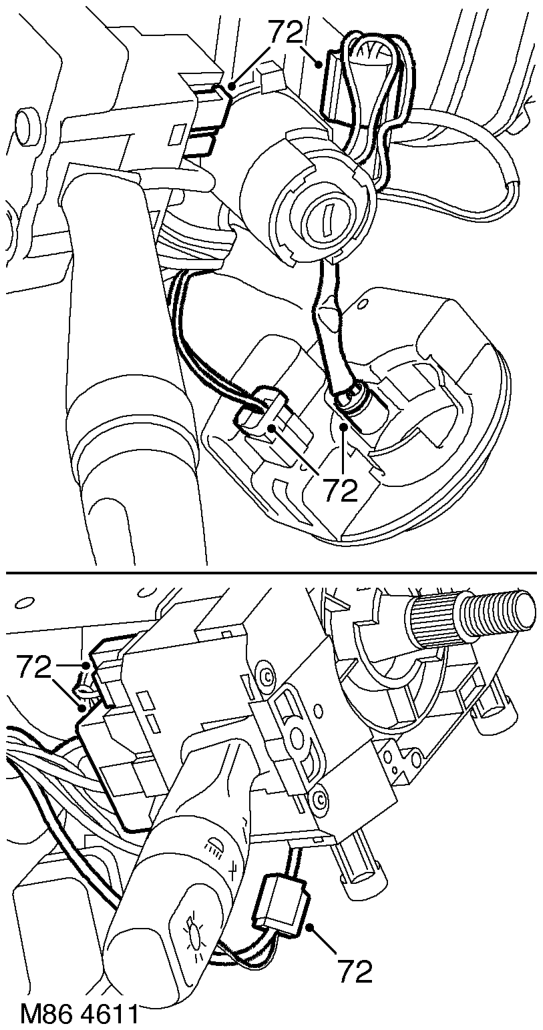

- Disconnect 7 multiplugs from ignition passive
coil and steering column switch assembly.
