Land Rover Discovery II (UK)54 · Harnesses
54 · General

Harness - main (page 3 of 10)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
HarnessesHarness - main · page 3 of 10

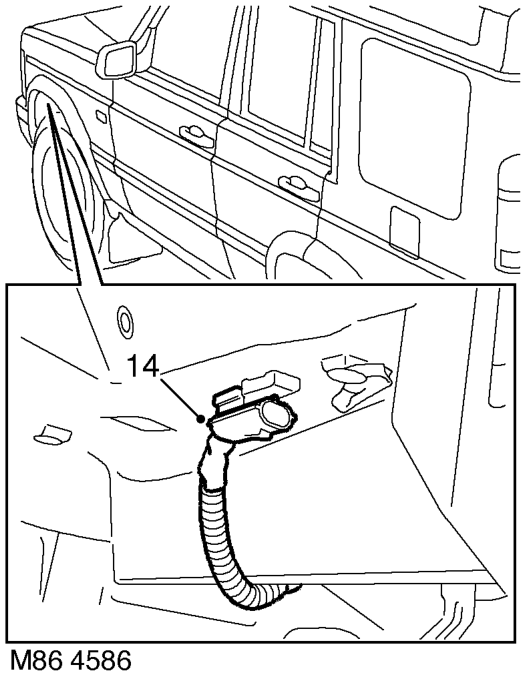

Diagram
  1. Remove 2 bolts securing battery and starter
  2. Release leads from fusebox.
  3. Remove 2 multiplugs from fusebox front.
  4. Remove 3 bolts securing fusebox to body.
  5. Release clip securing fog lamp multiplug.
  6. Withdraw harness to engine compartment fuse box.

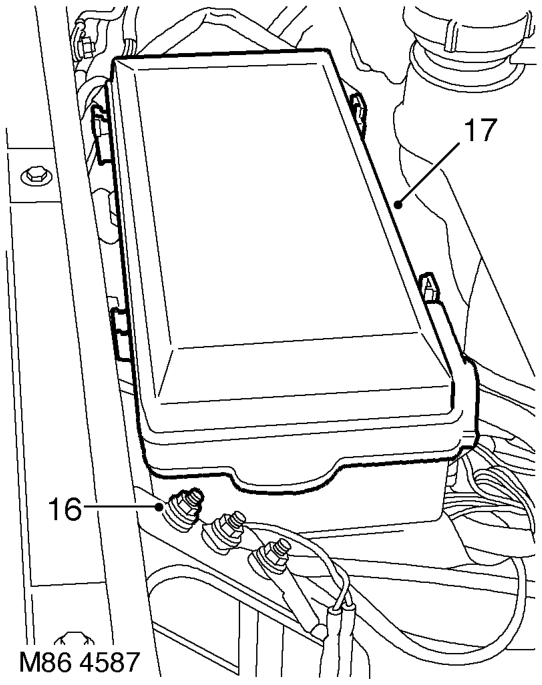

Withdraw harness to engine compartment fuse box.
  1. Release fuse box and remove 9 multiplugs
  2. Remove fuse box.
  3. Remove nut securing harness earth to body.
  4. Release 4 clips and remove engine compartment fusebox cover.

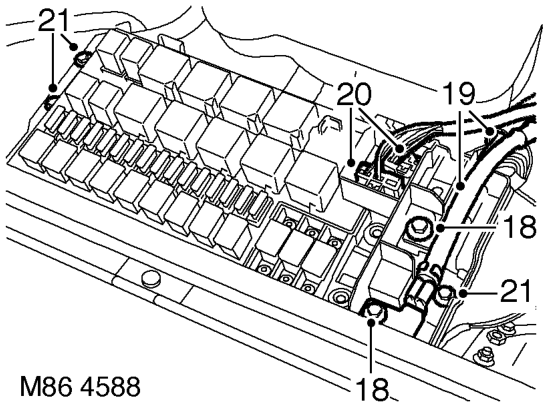

Release 4 clips and remove engine compartment fusebox cover.

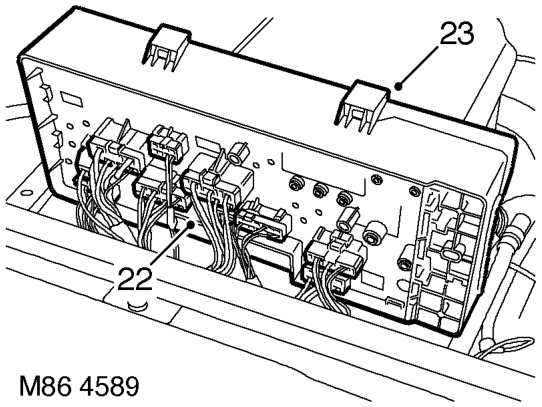

lead to fuse box.

lead to fuse box.

from rear of fuse box.
