Land Rover Discovery II (UK)54 · Harnesses
54 · General

Harness - main (page 7 of 10)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
HarnessesHarness - main · page 7 of 10
Diagram

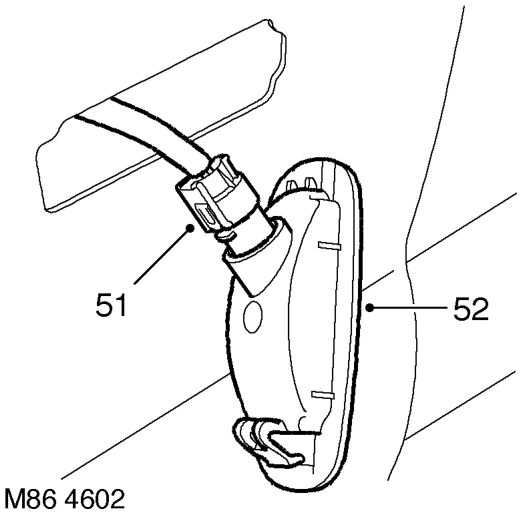

  1. Release LH indicator repeater lamp.
  2. Disconnect multiplug from repeater lamp.
  3. Remove repeater lamp.
  4. Attach draw string to repeater lamp harness.
  5. Pull harness into engine bay, remove draw
  6. Disconnect and release 2 multiplugs from front

string and secure.

  1. Pull harness into engine bay.
  2. Remove clip securing washer pipes to bonnet.

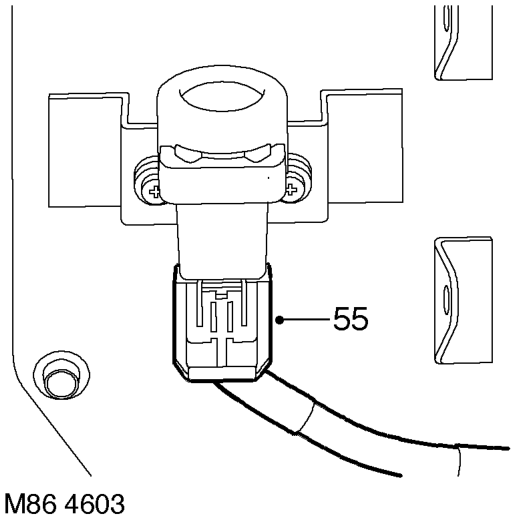

Remove clip securing washer pipes to bonnet.

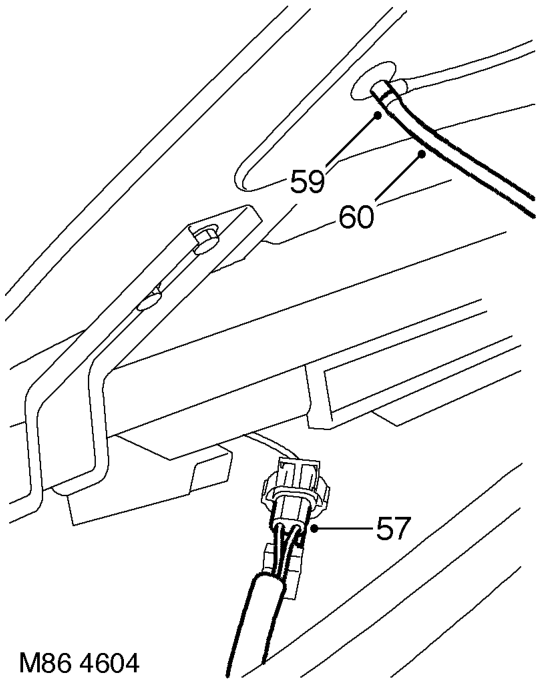

  1. Disconnect pipe from bonnet.
  2. Disconnect multiplug from fuel cut-off switch.
  3. Remove plenum moulding. HEATING AND VENTILATION, REPAIRS, Plenum Air Intake.

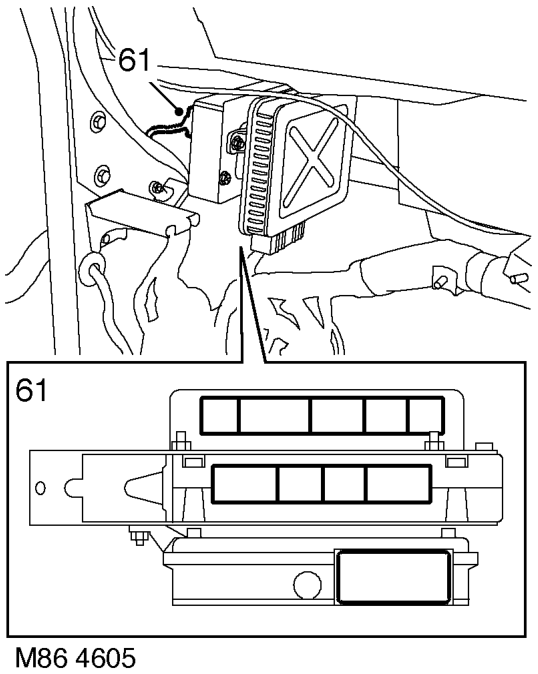

  4. Disconnect 11 multiplugs from ECU pack.
Disconnect 11 multiplugs from ECU pack.

heated screen element.

heated screen element.
