Land Rover Discovery II (UK)54 · Harnesses
54 · General

Harness - main (page 4 of 10)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
HarnessesHarness - main · page 4 of 10
Diagram
  1. Disconnect 3 multiplugs from chassis harness.

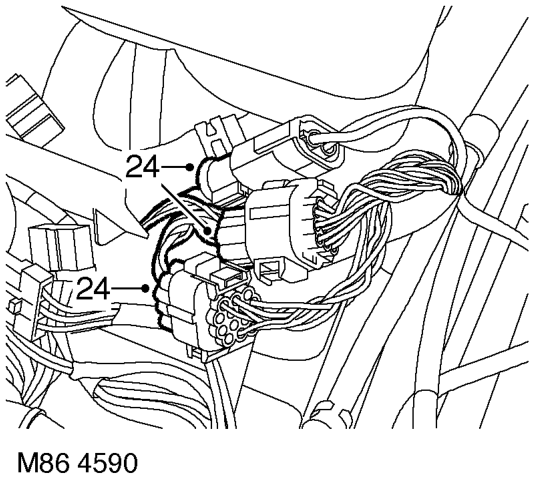

Disconnect 3 multiplugs from chassis harness.

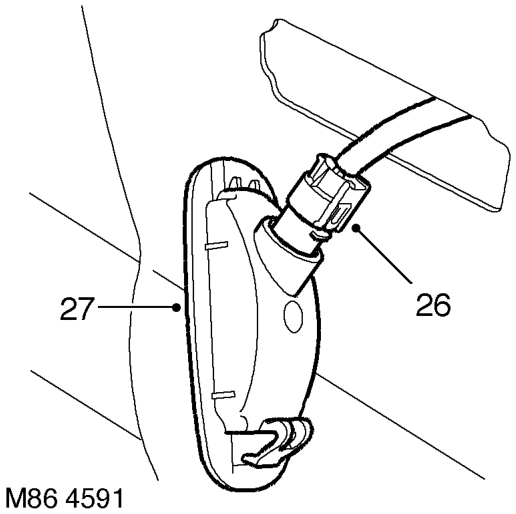

  1. Remove RH front indicator repeater lamp from wing.
  2. Disconnect multiplug from repeater lamp.
  3. Remove repeater lamp.
  4. Attach draw string to indicator lamp harness.
  5. Withdraw harness to fuse box.
  6. Remove draw string and secure.

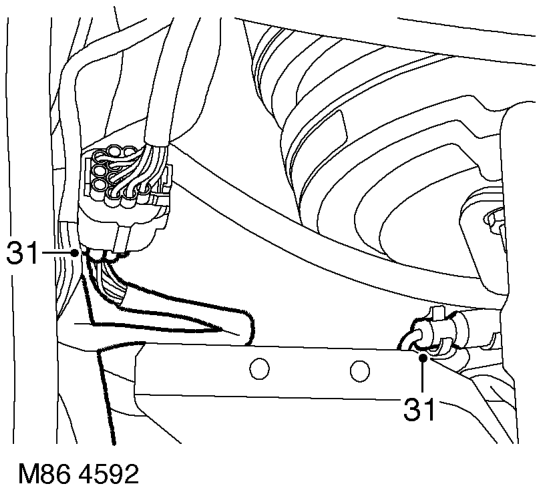

Remove draw string and secure.
  1. Disconnect main harness multiplug from engine harness and ABS sensor.

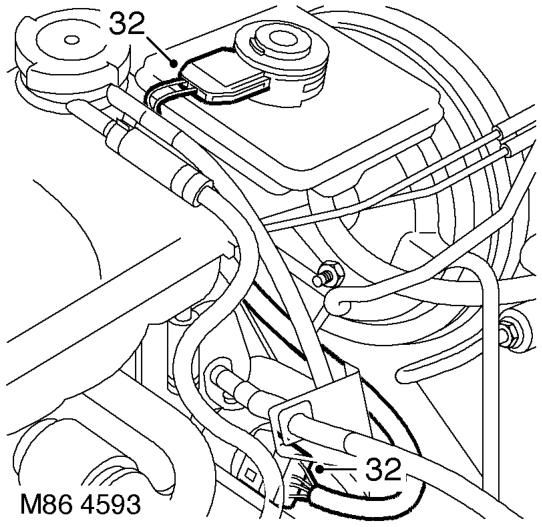

Disconnect main harness multiplug from engine harness and ABS sensor.
  1. Disconnect multiplugs from cruise control actuator and brake fluid level switch.
  2. Withdraw harness to bulkhead.
