Land Rover Discovery II (UK)54 · Harnesses
54 · General

Harness - main (page 6 of 10)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
HarnessesHarness - main · page 6 of 10
Diagram

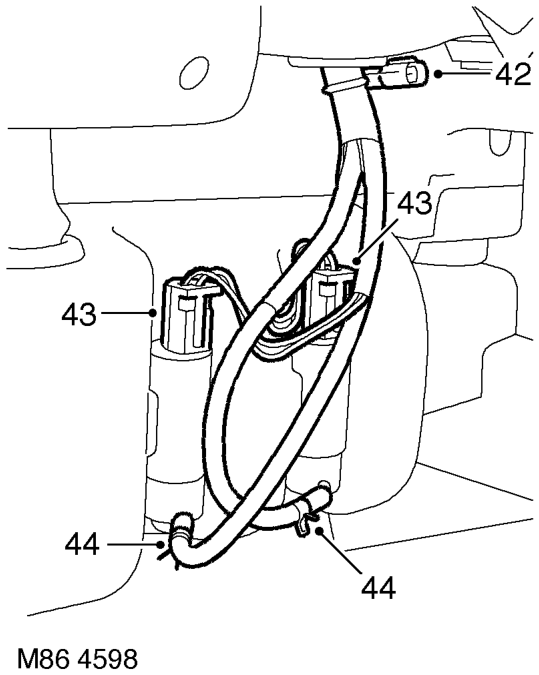

  1. Disconnect 2 multiplugs from washer pumps.
  2. Remove 2 clips securing washer pipes to washer reservoir motors.
  3. Remove washer reservoir pipes.
Remove washer reservoir pipes.

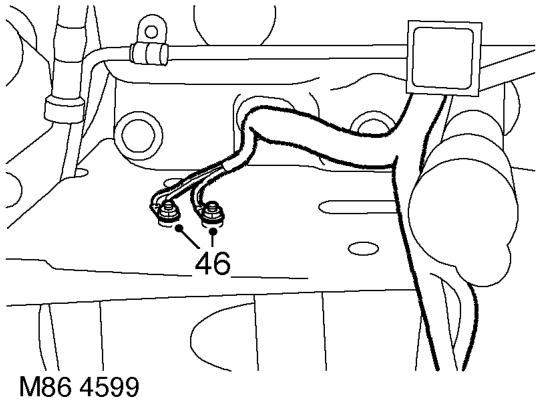

  1. Release 2 bolts securing earth points to body.

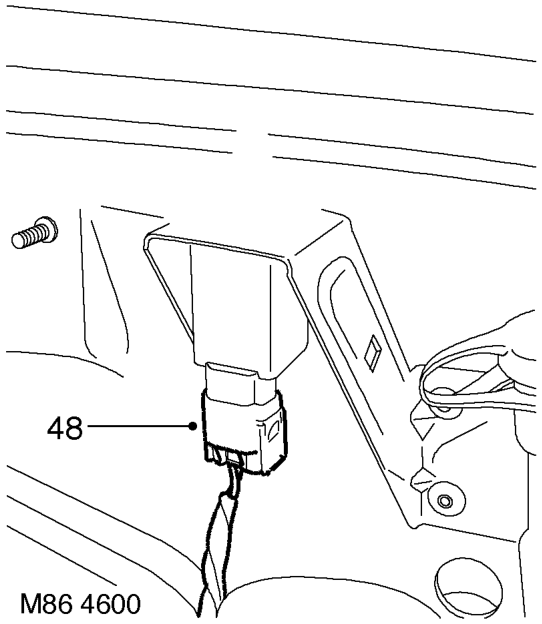

  2. Pull harness into engine bay.
Pull harness into engine bay.

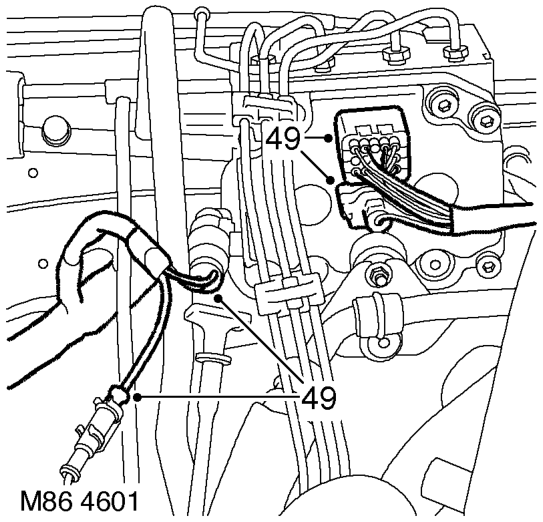

  1. Disconnect multiplug from bonnet switch.
Disconnect multiplug from bonnet switch.
  1. Disconnect 3 multiplugs from ABS modulator and multiplug from ABS sensor.
