Land Rover Discovery II (UK)54 · Harnesses
54 · General

Harness - main (page 8 of 10)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
HarnessesHarness - main · page 8 of 10
Diagram

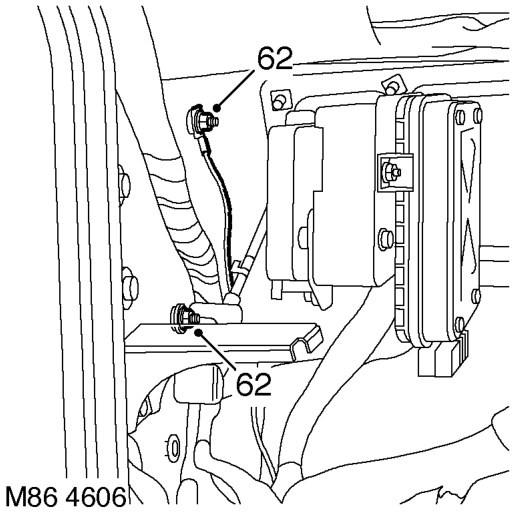

  1. Remove 2 nuts securing earth headers to LH lower 'A' post.
Remove 2 nuts securing earth headers to LH lower 'A' post.

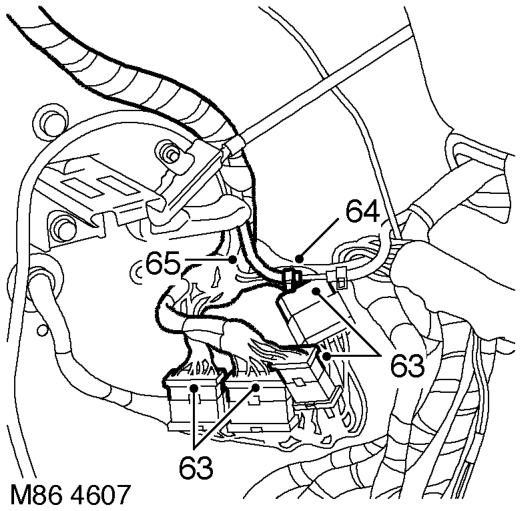

  1. Disconnect 4 multiplugs from body harness.
  2. Remove clip securing washer pipe located at lower 'A' post
  3. Remove pipe.
Remove pipe.

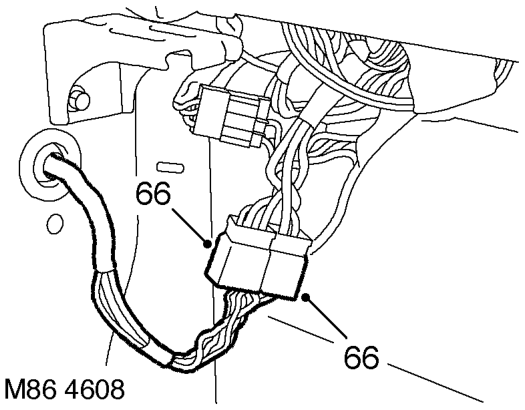

  1. Disconnect 2 multiplugs from front door harness.
  2. With assistance withdraw LH side harness into interior.
With assistance withdraw LH side harness into interior.

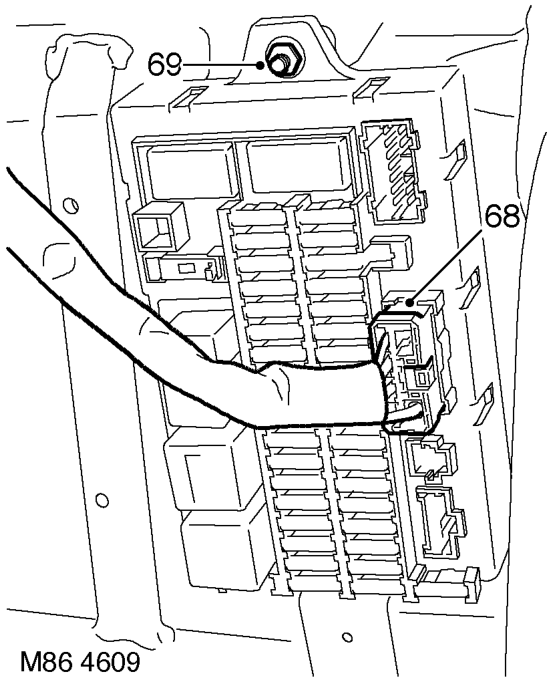

  1. Disconnect ignition harness multiplug from passenger compartment fusebox.
  2. Remove nut securing passenger compartment fusebox to steering support bracket.
