Repairs › Heater control and fan switch
Heating and ventilationHeater control and fan switch · page 1 of 2

REPAIRS

Heater control and fan switch

$% 80.10.02

Remove

  1. Remove louvre panel assembly. INTERIOR TRIM COMPONENTS, REPAIRS, Louvre panel assembly - centre fascia.
Heater control and fan switch – Remove louvre panel assembly.  INTERIOR TRIM COMPONENTS, REPAIRS, Louvre panel assembly -

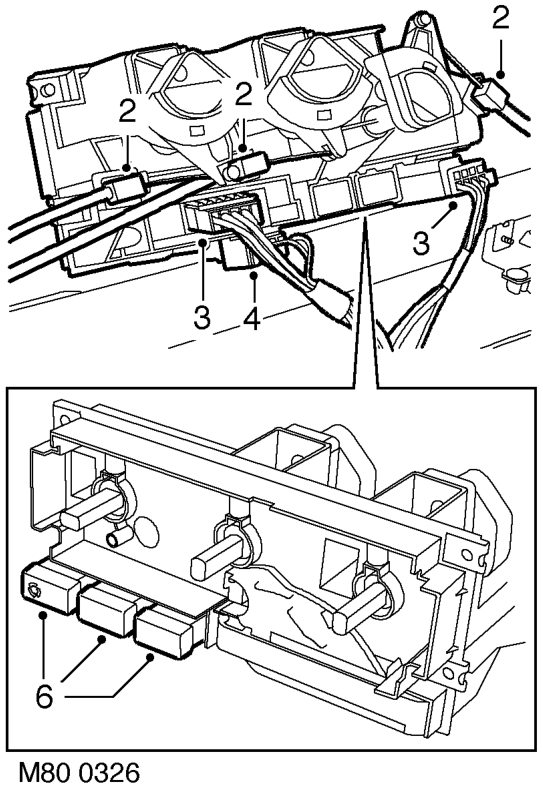

  1. Release temperature and air distribution cable abutments from heater control housing and disconnect inner cables from controls.
  2. Disconnect multiplugs from switches.
  3. Disconnect multiplug from control illumination.
  4. Remove heater control.
  5. Remove 3 switches from heater control.

Refit

  1. Fit switches to heater control housing.
  2. Position heater control assembly and connect multiplugs to switches and illumination.
  3. Connect heater control cables and secure outer cable abutments to casing.
  4. Fit louvre panel assembly. INTERIOR TRIM COMPONENTS, REPAIRS, Louvre panel assembly - centre fascia.

Cables - heater control

$% 80.10.06

Remove

Cables - heater control – $% 80.10.06

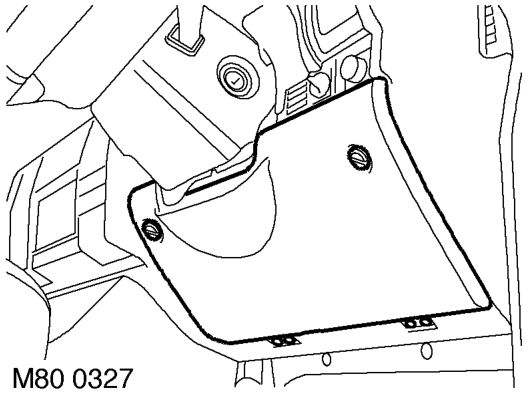

  1. Driver temperature control and air flow control cables:Release fixings and lower fascia fuse box access cover.
Cables - heater control – Driver temperature control and air flow control cables:Release fixings and lower fascia fu

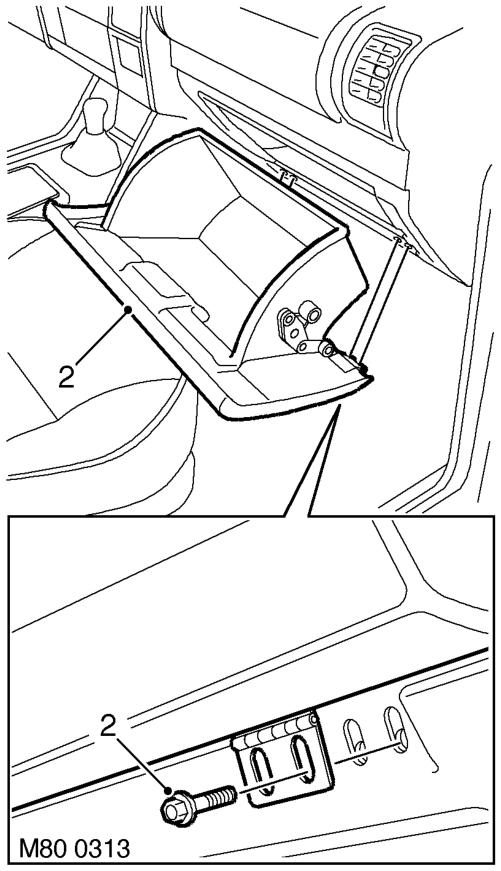

2. Passenger temperature control cable: Remove 4 screws securing glove box, release catch and remove glove box.
