Heating and ventilationHeater matrix

Heater matrix

Heater matrix

$% 80.20.29

Remove

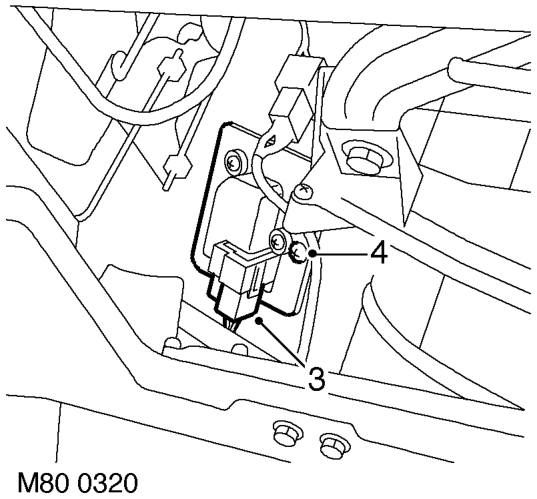

  1. Disconnect multiplug from resistor.
  2. Remove screws securing resistor, release and remove resistor.

Refit

  1. Position resistor and secure with screw.
  2. Connect multiplug to resistor.
  3. Position glove box, fit and tighten screws.
  4. Position toe board and secure with studs.

Refit

  1. Remove heater assembly. HEATING AND VENTILATION, REPAIRS, Heater assembly - models with air conditioning.

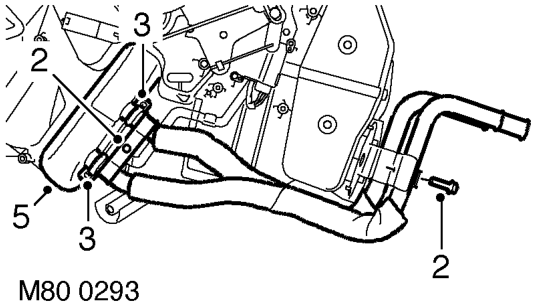

Heater matrix – Remove heater assembly.  HEATING AND VENTILATION, REPAIRS, Heater assembly - models with
  1. Remove 2 screws securing coolant pipe saddles and remove saddles.
  2. Loosen screws securing coolant pipes to matrix, release clamps and remove coolant pipes.
  3. Remove and discard 'O' rings.
  4. Remove heater matrix.
  5. Position heater matrix, using new 'O' rings fit coolant pipes and align clamps.
  6. Fit saddle clamps and secure with screws
  7. Tighten coolant pipe clamp screws.
  8. Fit heater assembly. HEATING AND VENTILATION, REPAIRS, Heater assembly - models with air conditioning.
